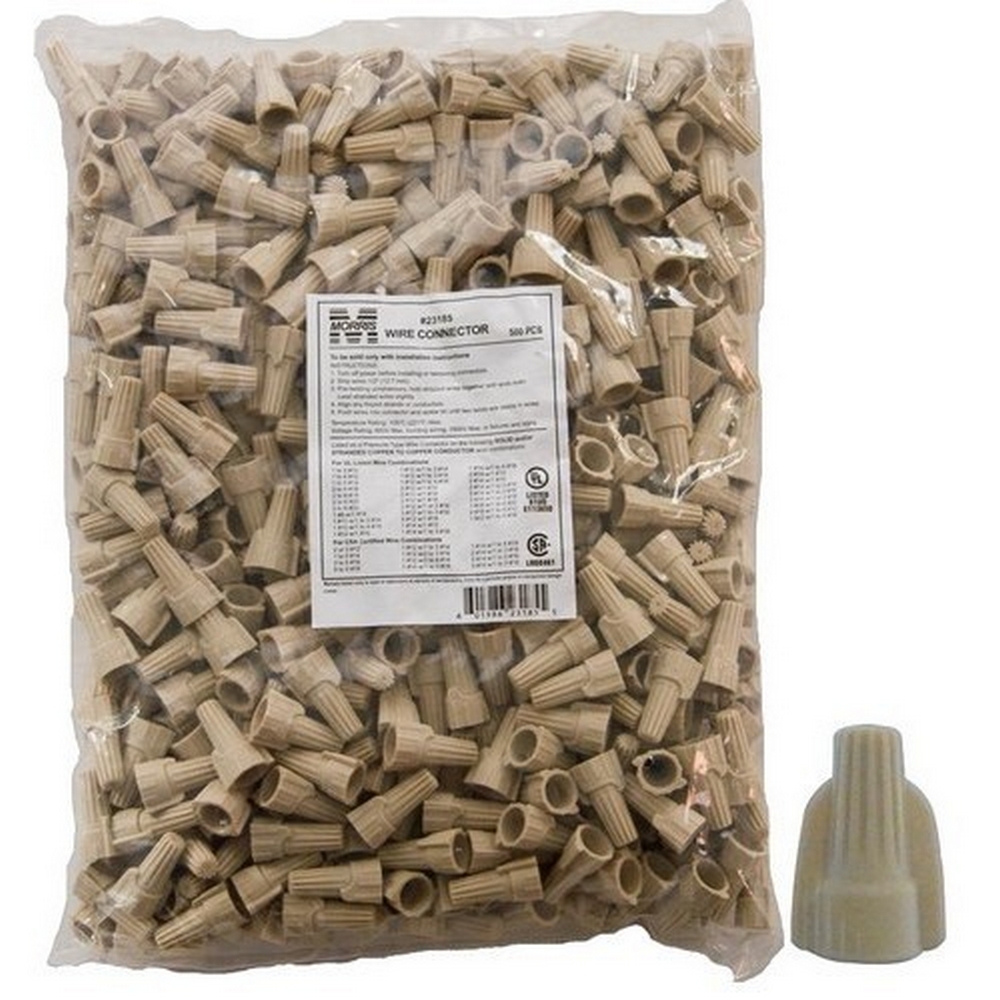

Morris 23185 Winged Twist Connectors for Easy Electrical Wiring Connections

Morris 23185 Winged Twist Connectors make connecting electrical wiring simple and easy. Designed for efficiency, the swept wing of these connectors fits naturally in your hand, providing extra torque leverage and reducing effort when working with large wire combinations. Their compact, narrow profile ensures they occupy minimal space in junction boxes, making installation straightforward. The ribbed cap boasts a secure grip, allowing for faster fingertip starts even in slippery conditions. The deep skirt entry protects against flashover or shorting, while preventing strands from splaying. A live action square wire spring draws wires deep into the connector, ensuring a strong grip without the need for pre-twisting conductors-this spring creates its own thread. Ideal for both single and multiple conductor applications, these reusable connectors can be threaded on or off for quick circuit changes and additions. Built from tough, heavy-duty materials, the UL 94V-2 flame retardant housing resists cracking or breaking under maximum pressure. With a temperature rating of 221°F (105°C) and compatibility with 600V and 1000V fixtures and signs, the Morris 23185 Winged Twist Connectors are cULus listed for quality assurance. Available in tan, these connectors come bagged in bulk packs for your convenience.

Winged Twist Connectors make Connecting Electrical Wiring Simple and Easy.

• 600V, 1000V fixtures & signs
• Ribbed cap on color coded wire connectors provide more secure grip and faster fingertip starts even when hands become slippery
• No pre-twisting of conductors is required – spring creates its own thread
• Temperature rated at 221°F (105°C) maximum
• cULus Listed
• Connector Will Bite and Hold on Single Conductor when Capping Isolated Conductor
• Swept wing fits into your hand naturally to give extra torque leverage and reduce the effort required for connecting even large wire combinations, yet compact, with narrow profile to take up less space in junction boxes
• Deep Skirt Entry Provides Protection From FlashOver or Shorting and Keeps Strands from Splaying
• Reusable connector threads on or off splice for fast and easy circuit changes and additions
• Live Action Square Wire Spring Draws Wires Deep into Spring Provides a More Secure Grip
• Tough, Heavy Duty Thick Wall UL 94V-2 Flame Retardant Housing will not crack or break, even when applied to maximum wire combinations under extreme pressure

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
