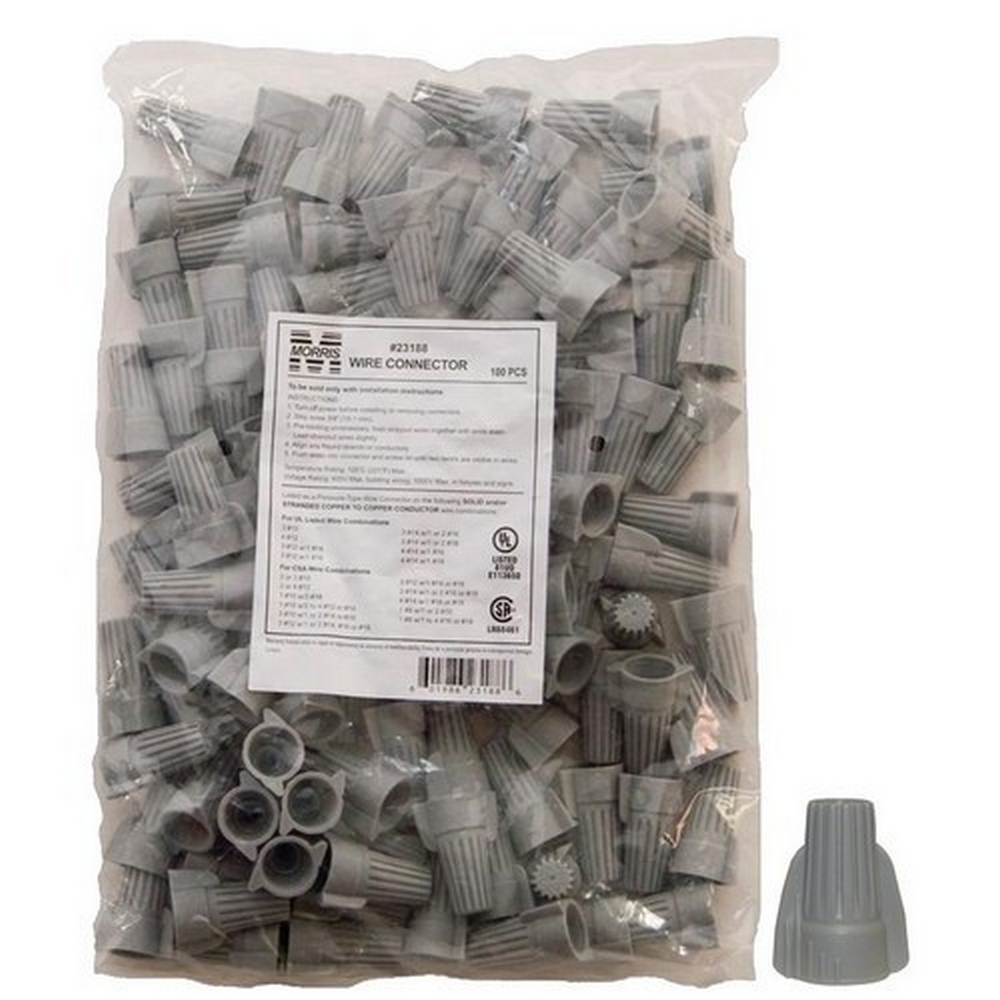

Morris 23188 Winged Twist Connectors for Easy Electrical Wiring Connections

Morris 23188 Winged Twist Connectors make connecting electrical wiring simple and efficient. Designed with a swept wing that fits comfortably in your hand, these connectors provide extra torque leverage, significantly reducing the effort needed to join even large wire combinations. Their compact, narrow profile ensures that they take up minimal space within junction boxes, making them ideal for tight installations. The ribbed cap is color-coded and offers a secure grip, allowing for quick fingertip starts, even in slippery conditions. With a deep skirt entry, these connectors protect against flashover and shorting while keeping wire strands neatly organized. The live action square wire spring draws wires deep into the connector, providing a secure hold without the need for pre-twisting conductors-the spring creates its own thread. Versatile and reusable, these connectors can easily be threaded on or off splices for fast circuit changes and additions. Constructed from tough, heavy-duty UL 94V-2 flame retardant material, they are built to withstand extreme pressure without cracking or breaking. Rated for temperatures up to 221°F (105°C) and suitable for 600V and 1000V fixtures, the Morris 23188 connectors are cULus listed for safety and reliability.

Winged Twist Connectors make Connecting Electrical Wiring Simple and Easy.

• 600V, 1000V fixtures & signs
• Ribbed cap on color coded wire connectors provide more secure grip and faster fingertip starts even when hands become slippery
• No pre-twisting of conductors is required – spring creates its own thread
• Temperature rated at 221°F (105°C) maximum
• cULus Listed
• Connector Will Bite and Hold on Single Conductor when Capping Isolated Conductor
• Swept wing fits into your hand naturally to give extra torque leverage and reduce the effort required for connecting even large wire combinations, yet compact, with narrow profile to take up less space in junction boxes
• Deep Skirt Entry Provides Protection From FlashOver or Shorting and Keeps Strands from Splaying
• Reusable connector threads on or off splice for fast and easy circuit changes and additions
• Live Action Square Wire Spring Draws Wires Deep into Spring Provides a More Secure Grip
• Tough, Heavy Duty Thick Wall UL 94V-2 Flame Retardant Housing will not crack or break, even when applied to maximum wire combinations under extreme pressure
