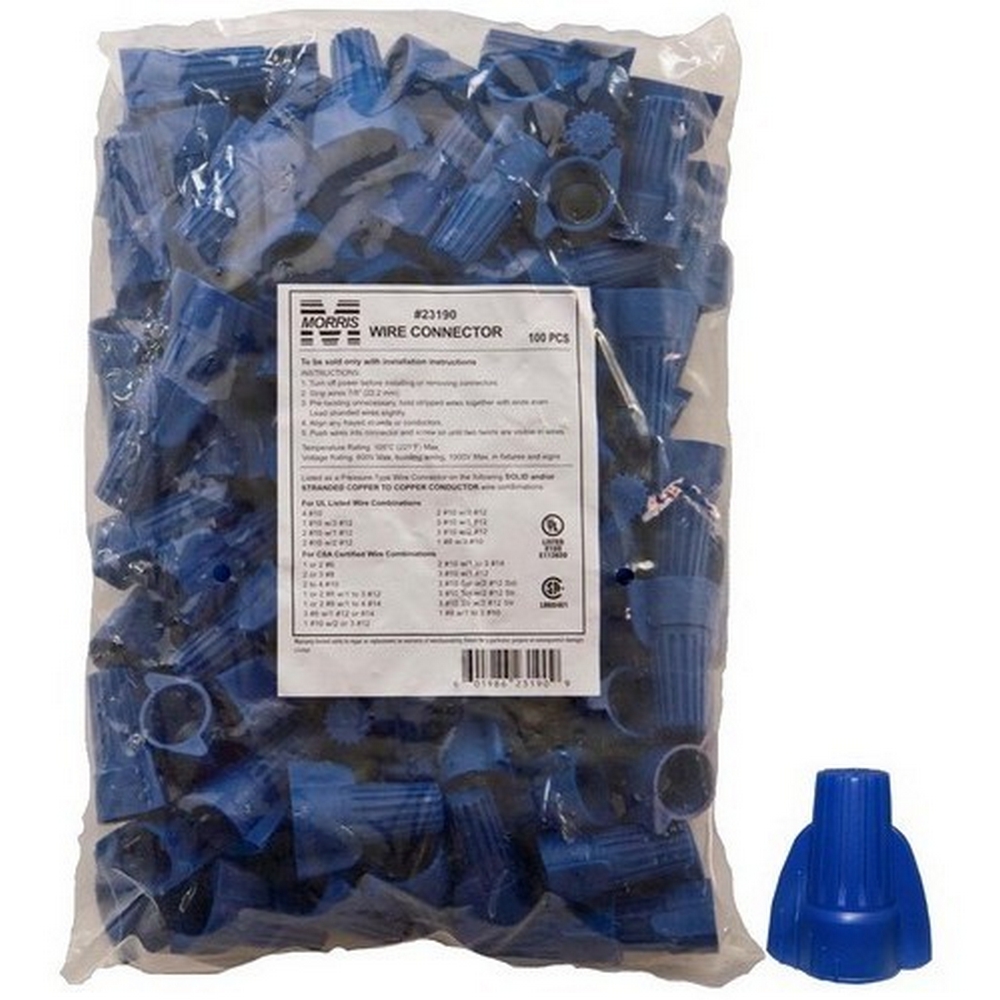

Morris 23190 Winged Twist Connectors for Easy Electrical Wiring Connections

Morris 23190 Winged Twist Connectors make connecting electrical wiring simple and easy. Designed with a swept wing that fits naturally in your hand, these connectors provide extra torque leverage, allowing you to connect even large wire combinations with minimal effort. The compact, narrow profile saves space in junction boxes, making installation more efficient. The ribbed cap, color-coded for easy identification, offers a secure grip and facilitates quicker fingertip starts, even in slippery conditions. Featuring a deep skirt entry, these connectors protect against flashover or shorting, while keeping wire strands from splaying. The live action square wire spring draws wires deep into the connector, ensuring a reliable hold without the need for pre-twisting conductors-simply let the spring create its own thread. These reusable connectors are designed for fast and easy circuit changes, and their tough, heavy-duty thick wall housing is UL 94V-2 flame retardant, remaining durable under extreme pressure. Rated for temperatures up to 221°F (105°C) and suitable for 600V and 1000V fixtures and signs, the Morris 23190 Winged Twist Connectors are cULus listed for added peace of mind. Whether you’re a professional electrician or a DIY enthusiast, these connectors are a must-have for your toolkit.

Winged Twist Connectors make Connecting Electrical Wiring Simple and Easy.

• 600V, 1000V fixtures & signs
• Ribbed cap on color coded wire connectors provide more secure grip and faster fingertip starts even when hands become slippery
• No pre-twisting of conductors is required – spring creates its own thread
• Temperature rated at 221°F (105°C) maximum
• cULus Listed
• Connector Will Bite and Hold on Single Conductor when Capping Isolated Conductor
• Swept wing fits into your hand naturally to give extra torque leverage and reduce the effort required for connecting even large wire combinations, yet compact, with narrow profile to take up less space in junction boxes
• Deep Skirt Entry Provides Protection From FlashOver or Shorting and Keeps Strands from Splaying
• Reusable connector threads on or off splice for fast and easy circuit changes and additions
• Live Action Square Wire Spring Draws Wires Deep into Spring Provides a More Secure Grip
• Tough, Heavy Duty Thick Wall UL 94V-2 Flame Retardant Housing will not crack or break, even when applied to maximum wire combinations under extreme pressure
