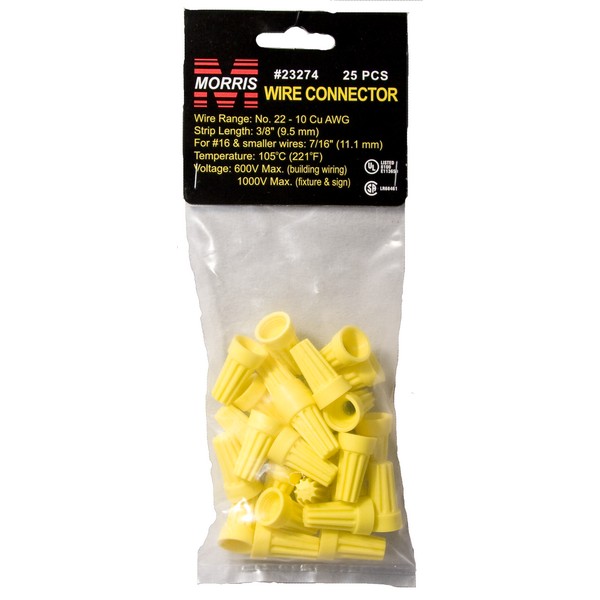

Morris 23274 Color-Coded Screw-On Wire Connectors for Quick Connections

Morris 23274 Screw-On Wire Connectors offer a versatile solution for quick and reliable electrical connections. Designed with a fixed precise conical wire spring, these connectors eliminate the need for pre-twisting of conductors, allowing the spring to create its own thread for fast assembly. The reusable design means you can easily thread the connector on or off for circuit changes and additions, making them ideal for both residential and commercial applications. Constructed with a tough, UL 94V-2 flame-retardant shell, these connectors are built to withstand extreme pressure without cracking or breaking. The ribbed cap provides a secure grip, enabling effortless fingertip starts, even in challenging conditions. Additionally, the deep skirt wire entry protects against flash-overs and shorts, ensuring safety during use. Featuring a threaded funnel entry, the Morris 23274 guides wires into the connector cleanly, preventing strand splaying for a neat finish. With a maximum temperature rating of 221°F (105°C) and a voltage rating of up to 600V, these connectors are both durable and efficient. Packaged in a convenient hanging bag of 25, they are cULus listed and ready to meet your wiring needs while offering peace of mind in performance and safety.

Screw-On Wire Connectors - Color-Coded Screw On Wire Connectors for quick connections anytime.

• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• cULus Listed
• Fixed Precise Conical Wire Spring
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• No Pre-Twisting of Conductors is Required – Spring Creates its Own Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire combinations under extreme pressure
• Temperature Rated at 221°F (105°C) maximum

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
