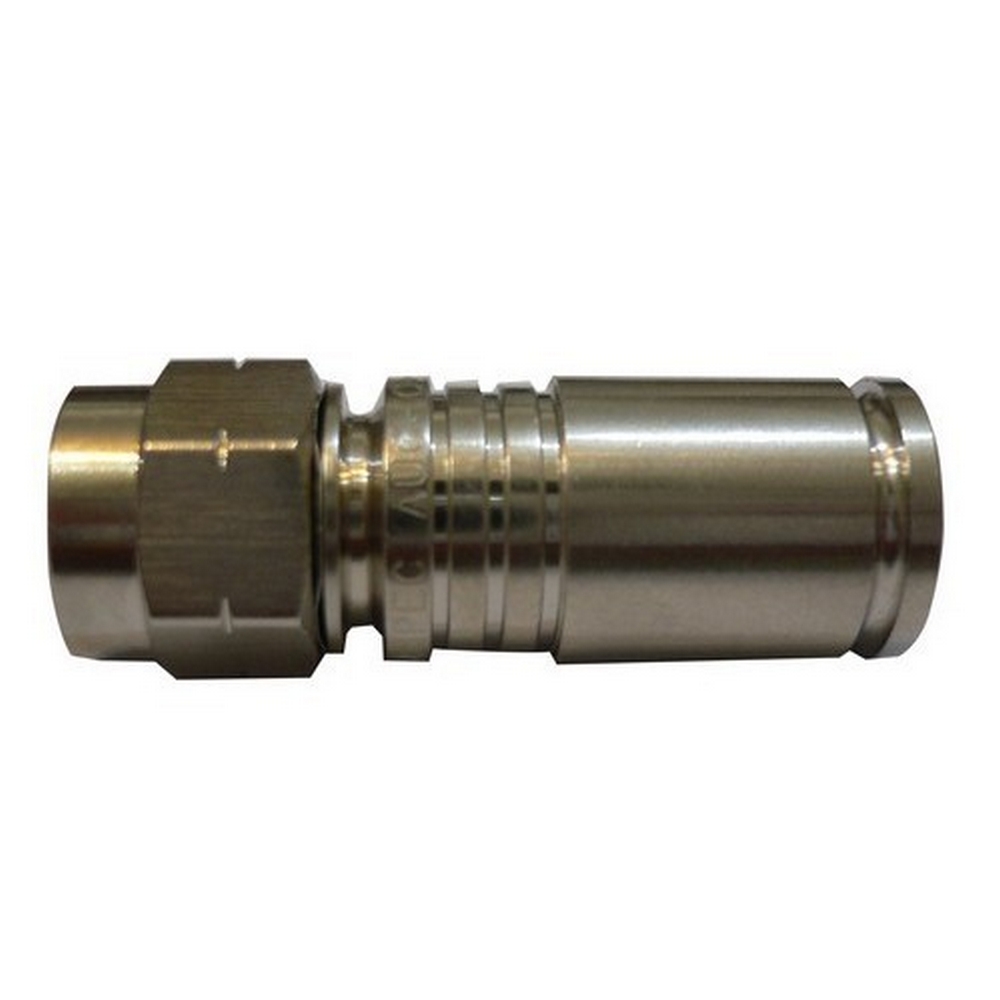

Morris 45073 Quad Shield F Male Connector - Weatherproof for Outdoor Use

Morris 45073 Quad Shield F Male Connector is designed for exceptional performance in outdoor applications, ensuring reliable connections even in challenging weather conditions. Constructed from all brass for superior durability, this premier connector is engineered for use with standard, tri, and quad shield coax cables. Its innovative visible post design simplifies installation while protecting the cable foil and dielectric from damage, enhancing user-friendliness. Featuring a water-tight seal, the Morris 45073 guarantees superior durability across all climates, making it a preferred choice for CATV and satellite company installers. The compression push-lock design allows for a .827" (21mm) travel compression crimp, effectively safeguarding the center conductor. With a retention force exceeding 50 lbs, it ensures permanent connections that remain secure without loosening over time. The large tapered entry facilitates easy cable insertion, and the gold-plated contacts improve signal performance. This connector supports a bandwidth of 0-3GHz, with impressive return loss of -30dB at 1GHz and insertion loss of less than .1dB at the same frequency. Additionally, it boasts an operating temperature range from -40°F (-40°C) to 140°F (60°C) and meets or exceeds all SCTE specifications, making it a reliable choice for demanding applications.

Our Quad Shield F Male Connector is weatherproof for outdoor use.

• Shielding Effectiveness: 80db
• Cable Retention: >50lbs
• Compression Push-Lock Design
• Permanent connections do not pull out or become loose
• .827" (21mm) travel compression crimp protects the center conductor from damage
• Bandwidth: 0-3GHz
• Visible Post Design - User friendly, eliminates damage to cable foil & dialectic
• Retention Force: >50lbs
• Operating Tempature: -40°F(-40°C) to 140°F(60°C)
• Water-tight seal for outdoor applications & superior durability in all climates
• Gold Plated contacts
• Premier Connector
• Used by CATV & Satellite company installers
• RF signal containment ensures strong signal
• Meets or Exceeds all SCTE specifications
• Large tapered entry allows for easy cable insertion
• Insertion Loss<.1db @ 1GHz
• All Brass exterior construction for superior durability
• Return Loss: -30db @ 1GHz
• For use with Standard, Tri & Quad Shield Coax Cable
• Improved Signal performance
