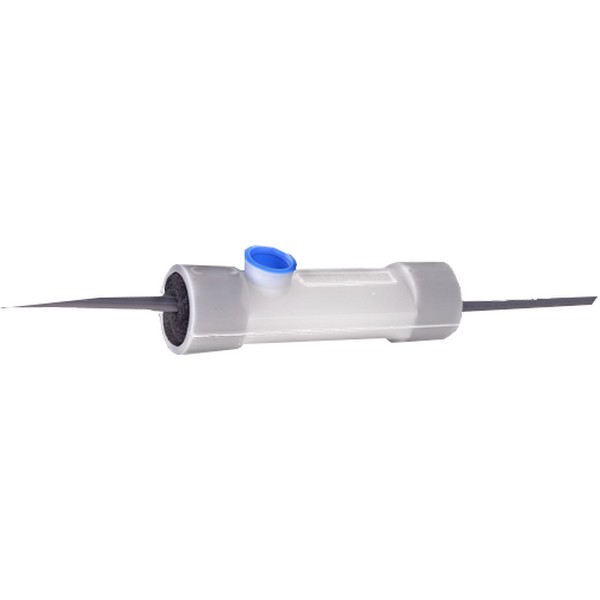

Morris 67024 Fast Easy and Inexpensive Direct Burial and Submersible Electrical Splice Kits are engineered for reliability and efficiency in various splicing applications. Featuring advanced Exothermic Epoxy Resin Encapsulation Technology, these kits are UL Listed for both direct burial and submersible use, ensuring they meet the highest industry standards. Designed for durability, the epoxy splice kits provide a permanent watertight seal that protects against voltage leakage, cable deterioration, and potential cable failure. Their low viscosity resin compound allows for fast, error-proof setup, completely penetrating around the splice for maximum security. The kits are fungus resistant, making them suitable for both above and below ground splicing and jacket repair. Rated for use with cables up to 194°F (90°C) and capable of handling a maximum voltage of 600 volts, these splice kits are versatile, accommodating a wire range from #18 to 4/0. They are suitable for stub, butt, branch, in-line, and feedthrough applications without the need for tools or heat sources, streamlining the installation process. Morris 67024 splice kits are cULus Listed and come individually packaged for easy transport and storage. Choose these kits for a dependable solution to your electrical splicing needs.
These are Fast Easy and Inexpensive Direct Burial and Submersible Electrical Splice Kits.
Application: Butt/Branch/In-line
Bag Qty: 1
Conductor Range: #18-4/0
Country of Origin: Usa
Description: ShakeNSeal Resin Encapsulation Splice Kit #18 - 4/0(1/0) Butt/Branch/(In-Line)
Maximum Voltage: 600 Volts
Mfg Standard: UL 486D CSA198.2
Model #: ES200SV
Slice Method: Resin Splice Kit
Splice Type: Butt/Branch/In-Line
Type: ShakeNSeal Resin Encapsulation Splice Kits
Ul Listing: cULus
Upc: 601986670241
Voltage: 600
Warning: Cancer and Reproductive Harm
Wire Range: #18 - 4/0
Wire Size: #18 - 4/0
