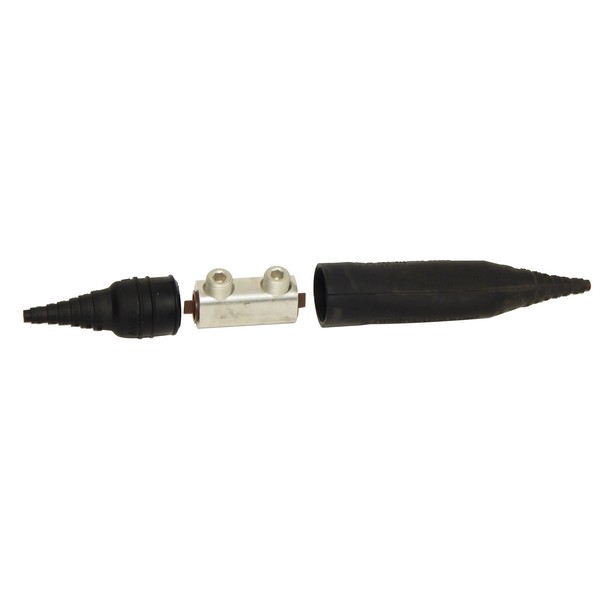

Morris 67058 600V Max Splice Kit for Aluminum or Copper

Morris 67058 600 Volt Max Splice Kit is designed for seamless splicing of aluminum or copper conductors without the need for costly crimping tools. This Direct Burial Mechanical Splice Kit is rated for 600 volts and offers a reliable, water-tight splice repair, making it ideal for both direct burial and submersible applications. With its dual-rated AL9CU connector, the kit accommodates wire ranges from #6 to 350 MCM, ensuring versatility for any 2, 3, or 4-wire installation. The innovative design prevents oxidation and moisture infiltration, enhancing the longevity of your electrical connections. Each kit includes one mechanical connector and a durable rubber cover, eliminating the need for taping, heat shrink, or mastic-streamlining your installation process. The components are UL Listed and compliant with ANSI C119.4, ensuring safety and reliability for your projects. Measuring 2.56 inches in length and 1.13 inches in diameter, the connector features a 2-screw configuration for secure fastening. The rubber cover measures 10.45 inches in length with a diameter of 1.55 inches. Count on the Morris 67058 splice kit for your repair and extension needs in USE cable and other electrical applications.

600 Volt Max Splice Kit for aluminum or copper.

• Perfect for repairing any 2, 3, or 4 wire installation
• Popular splicing applications would be for repair and/or extending type USE cable and other electrical cables
• Prevents oxidation and keeps out moisture
• Splice kit contains UL Listed Components
• Kit comes complete with one mechanical connector and Rubber Cover
• Direct Burial and Submersible Rated - Ensures a Water Tight Splice Repair
• 600 Volt maximum 221°F (105°C) rating
• Our Direct Burial Mechanical Splice Kits - Rubber Cover 600 volt max Eliminates expensive crimping tools when splicing Aluminum or Copper conductors for Direct Burial
• No Taping, Heat Shrink or Mastic Required
• ANSI C119.4 Compliant RUS Approved
• AL9CU Dual rated For Use with Both Aluminum or Copper Conductors

Resources

• Catalog PDF page
• Spec Sheet
