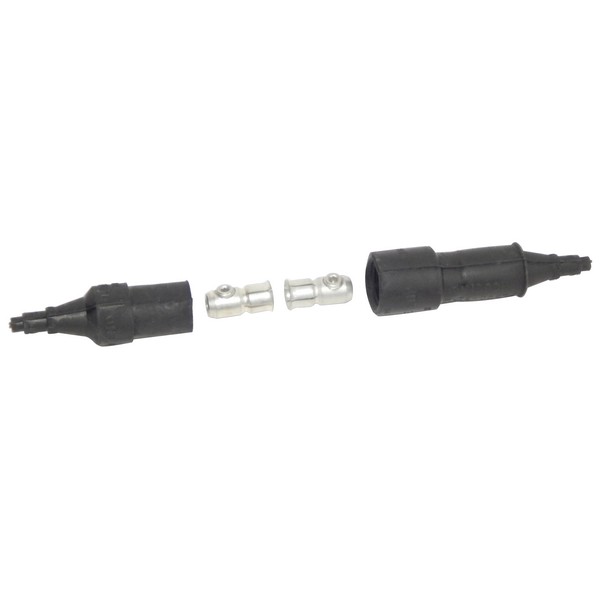

Morris 67064 Streetlighting In-Line Breakaway Disconnect Kits for Lighting Applications

Morris 67064 Streetlighting In-Line Mechanical Breakaway Disconnect Kits are designed specifically for street and parking lot lighting applications, ensuring safety and functionality in the event of an impact. These kits provide an essential electrical disconnect when a light pole separates from its base, making them a critical component for outdoor lighting systems. Constructed for use in streetlight hand holes, the kits feature a completely waterproof, rubber overmolded insulated body that guarantees both installer safety and connector integrity. The design includes a range-taking feature that accommodates a wide variety of wire sizes up to .38" in diameter, utilizing a stepped "ROCKET" sealing mechanism for optimal performance. The Morris 67064 is compatible with standard cartridge fuses measuring 13/32" x 1-1/2" (note: glass fuses are not supported) and is dual-rated for both copper and aluminum cables, promoting versatility in installations. This 30 Amp, 600 Volt kit eliminates the need for labor-intensive insulating methods such as taping and heat shrink, streamlining the installation process. Each kit includes an EPDM rubber housing, fuse clips, and a connecting link as required, along with silicone lubricant (fuse not included). Ensure your lighting systems are equipped with Morris reliability and safety.

These Streetlighting In-Line Mechanical Breakaway Disconnect Kits are for Street and Parking Lot Lighting Applications

• Fuse or Connecting Link Remains in Load Side of Light Pole When Seperated
• 600 Volts
• 67064 Accepts Standard Cartridge Fuses 13/32" X 1-1/2" - No Glass Fuses
• Kits Inlcude: EPDM Rubber Housing, Fuse Clips, Connecting Link(as Required), Silicone Lubricant. - Fuse Not Included
• AL9CU Dual Rated for Both Copper and Aluminum Cables
• 30 Amp
• Streetlighting In-Line Mechanical Breakaway Disconnect Kits Provide Electrical Disconnect when Light Pole is seperated from Base under Impact
• Designed for Use in StreetLight Hand Holes
• Range Taking Design Covers a Wide Range of Wire Sizes Thru .38" Diameter using a Stepped "ROCKET" Sealing Feature
• Eliminates the Need for Taping, Heat Shrink and other Labor Intensive Insulating Methods
• Completely Waterproof Rubber Overmolded Insulated Body Ensures Installer Safety and Connector Integrity
