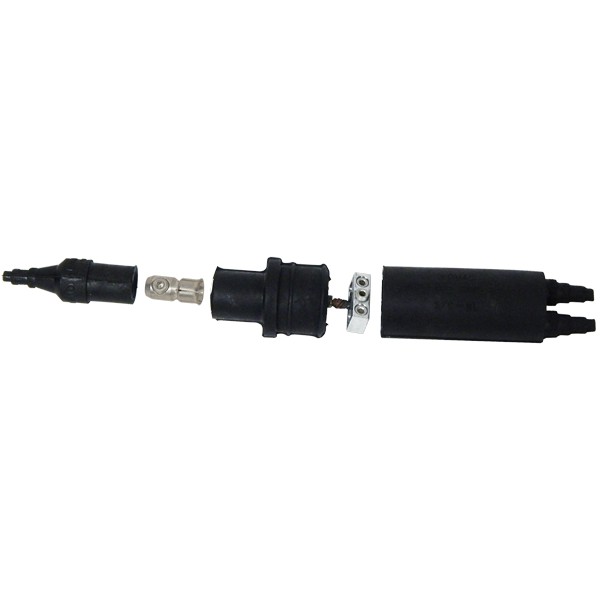

Morris 67066 Y-Type Breakaway Disconnect Kits for Street Parking Lot Lighting

Morris 67066 Streetlighting Y-Type Mechanical Breakaway Disconnect Kits are specifically designed for street and parking lot lighting applications. These kits provide a reliable electrical disconnect when a light pole is separated from its base due to impact, enhancing safety and functionality in outdoor environments. Engineered for use in streetlight hand holes, the kits feature a completely waterproof rubber overmolded insulated body, ensuring the integrity of the connection and the safety of the installer. When separation occurs, the fuse or connecting link remains on the load side of the light pole, preventing disruption to the electrical system. The range-taking design accommodates a wide variety of wire sizes up to .38" in diameter, utilizing a stepped "ROCKET" sealing feature. The Morris 67066 is compatible with standard cartridge fuses measuring 13/32" X 1-1/2" and is rated for both copper and aluminum cables (AL9CU). With a capacity of 30 amps and a voltage rating of 600 volts, these kits eliminate the need for labor-intensive insulating methods like taping and heat shrink. Included in the kit are an EPDM rubber housing, fuse clips, a connecting link (as required), and silicone lubricant, providing a comprehensive solution for your streetlighting needs. Note that a fuse is not included.

These Streetlighting Y-Type Mechanical Breakaway Disconnect Kits are for Street and Parking Lot Lighting Applications

• Fuse or Connecting Link Remains in Load Side of Light Pole When Seperated
• 600 Volts
• Kits Inlcude: EPDM Rubber Housing, Fuse Clips, Connecting Link(as Required), Silicone Lubricant. - Fuse Not Included
• 67066 Accepts Standard Cartridge Fuses 13/32" X 1-1/2" - No Glass Fuses
• AL9CU Dual Rated for Both Copper and Aluminum Cables
• 30 Amp
• Streetlighting Y-Type Mechanical Breakaway Disconnect Kits Provide Electrical Disconnect when Light Pole is seperated from Base under Impact
• Designed for Use in StreetLight Hand Holes
• Range Taking Design Covers a Wide Range of Wire Sizes Thru .38" Diameter using a Stepped "ROCKET" Sealing Feature
• Eliminates the Need for Taping, Heat Shrink and other Labor Intensive Insulating Methods
• Completely Waterproof Rubber Overmolded Insulated Body Ensures Installer Safety and Connector Integrity
