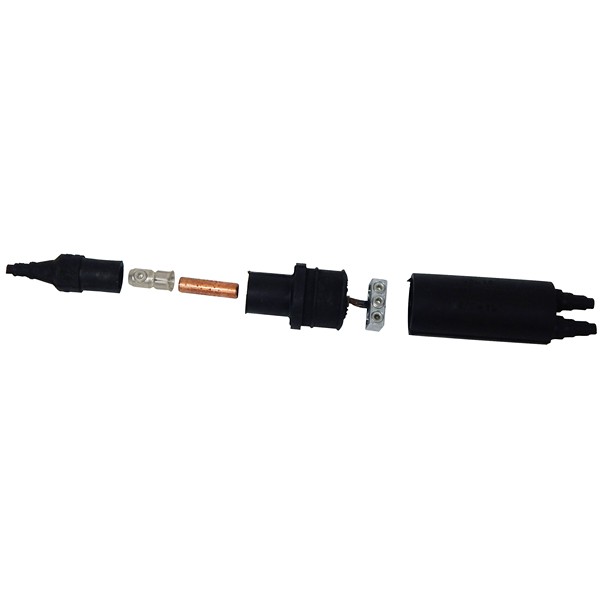

Morris 67067 Y-Type Breakaway Disconnect Kits for Street Parking Lot Lighting

Morris 67067 Streetlighting Y-Type Mechanical Breakaway Disconnect Kits are specifically engineered for street and parking lot lighting applications, offering unmatched safety and reliability. These kits provide an electrical disconnect when a light pole is separated from its base due to impact, ensuring minimal disruption and damage. Designed for installation within streetlight hand holes, the kits feature a completely waterproof rubber overmolded insulated body that guarantees both installer safety and connector integrity. When separation occurs, the fuse or connecting link remains securely on the load side of the light pole, enhancing operational continuity. The range-taking design accommodates a wide variety of wire sizes up to .38" in diameter, utilizing a unique "ROCKET" sealing feature for effective sealing. The Morris 67067 accepts standard cartridge fuses (13/32" x 1-1/2") and is dual-rated for both copper and aluminum cables, providing versatility across different installations. With a capacity of 30 amps and a voltage rating of 600 volts, these disconnect kits eliminate the need for labor-intensive insulating methods such as taping or heat shrink. Each kit includes an EPDM rubber housing, fuse clips, a connecting link (as required), and silicone lubricant, though the fuse is not included. Choose Morris 67067 for a robust and efficient solution to your streetlighting needs.

These Streetlighting Y-Type Mechanical Breakaway Disconnect Kits are for Street and Parking Lot Lighting Applications

• Fuse or Connecting Link Remains in Load Side of Light Pole When Seperated
• 600 Volts
• Kits Inlcude: EPDM Rubber Housing, Fuse Clips, Connecting Link(as Required), Silicone Lubricant. - Fuse Not Included
• 67066 Accepts Standard Cartridge Fuses 13/32" X 1-1/2" - No Glass Fuses
• AL9CU Dual Rated for Both Copper and Aluminum Cables
• 30 Amp
• Streetlighting Y-Type Mechanical Breakaway Disconnect Kits Provide Electrical Disconnect when Light Pole is seperated from Base under Impact
• Designed for Use in StreetLight Hand Holes
• Range Taking Design Covers a Wide Range of Wire Sizes Thru .38" Diameter using a Stepped "ROCKET" Sealing Feature
• Eliminates the Need for Taping, Heat Shrink and other Labor Intensive Insulating Methods
• Completely Waterproof Rubber Overmolded Insulated Body Ensures Installer Safety and Connector Integrity
