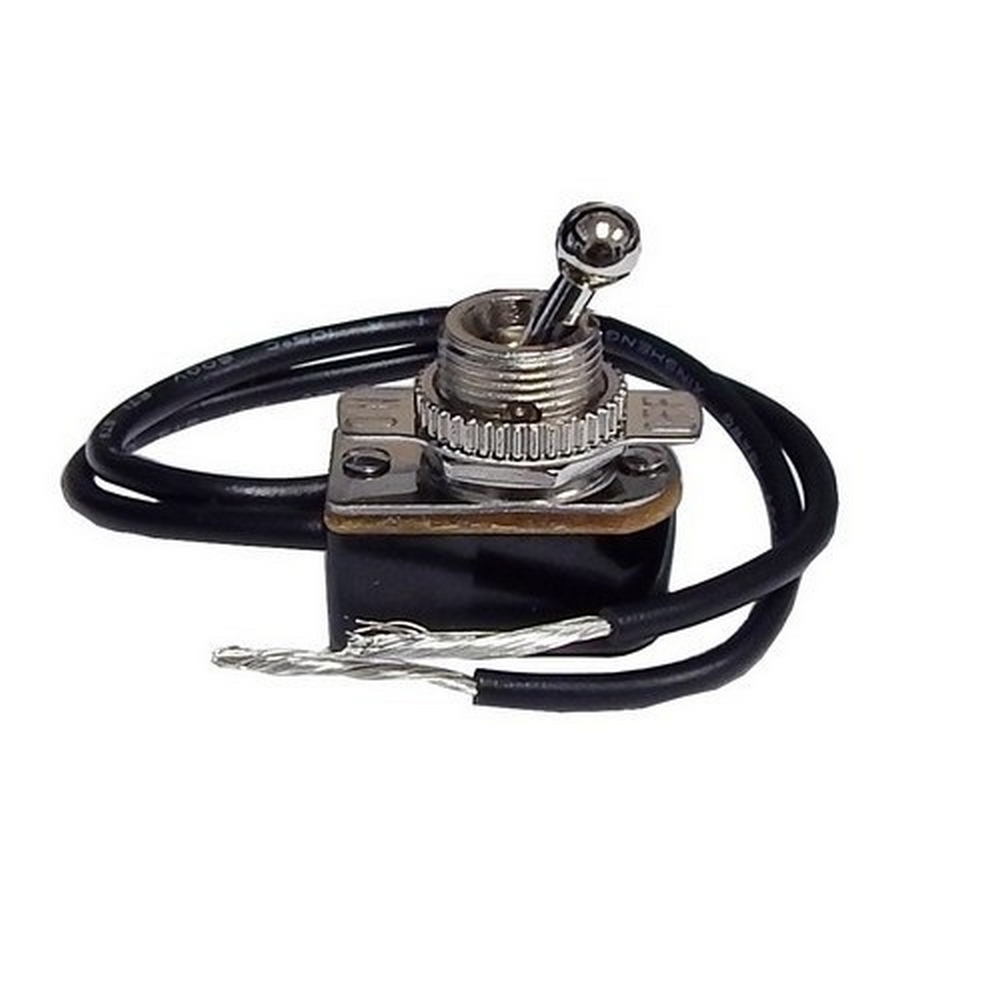

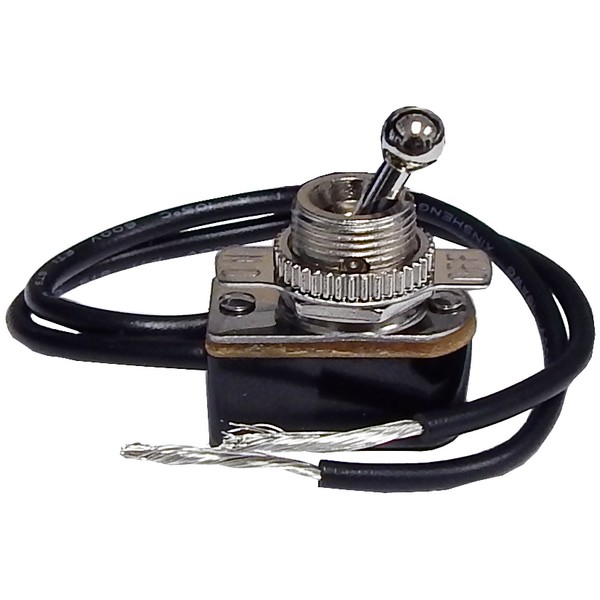

Morris 70061 is a versatile SPST toggle switch designed for a wide range of household applications. Ideal for light appliances and equipment, this switch features an ON-OFF functionality, making it user-friendly and reliable. With a load rating of 6 amps at 125VAC and 3 amps at 250VAC, it provides robust performance for various electrical needs. This toggle switch comes equipped with 6-inch wire leads, allowing for easy installation and connection. The compact dimensions of 0.69" x 0.55" x 0.34" ensure that it fits seamlessly into tight spaces. For added safety, it boasts a dielectric strength of 1500V and an insulation resistance of 500V, ensuring durability and reliability in your electrical setups. The Morris 70061 is cURus listed, providing peace of mind regarding its compliance with safety standards. The switch features a 1/2" mounting hole for straightforward installation, and its short ball bat design includes an ON-OFF plate for clear operation indication. Please note that there is a warning regarding potential cancer and reproductive harm associated with this product. When you choose the Morris 70061 toggle switch, you’re investing in a dependable component that enhances the functionality of your electrical systems.
Our standard SPST Toggle Switch for most applications.
Circuitry: SPST
Color: Black/Silver
Country of Origin: China
Description: Medium Duty Short Ball Bat Toggle Switch SPST On-Off 6" Leads with On-Off Plate
Dielectric Strength In Vac: 1500
Function: On-Off
Insulation Resistance In Milliohm: 500
L x W x H: .69" x .55" x .34"
Load Rating: 6A 125VAC 3A 250VAC
Material: Solid Brass or Nickel Plated Bushings
No. of Terminals: N/A
Operation Range: 32 to 185
Poles: SPST
Standard Load Rating: 6A@125VAC 3A@250VAC
Switch Type: Short Ball Bat Toggle Switch
Terminal: 6" Wire Leads
Terminal Type: 6" Wire Leads
Termination Type: 6" Wire Leads
Type: Short Ball Bat Toggle Switch with On-Off Plate
Ul Listing: cURus
Upc: 601986700610
Warning: Cancer and Reproductive Harm
