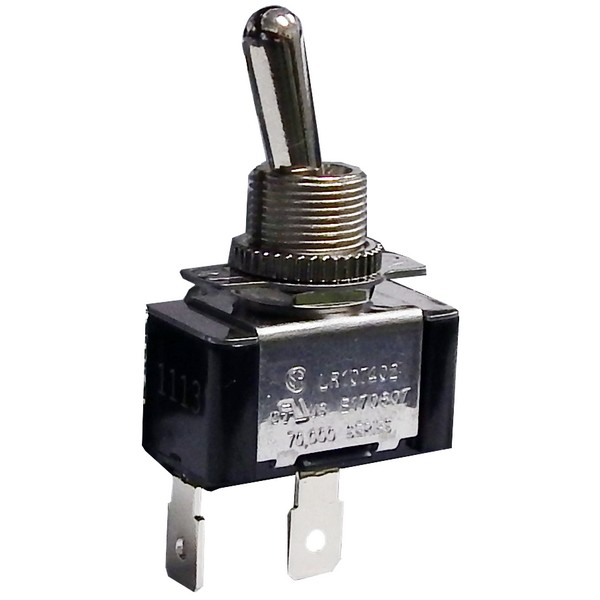

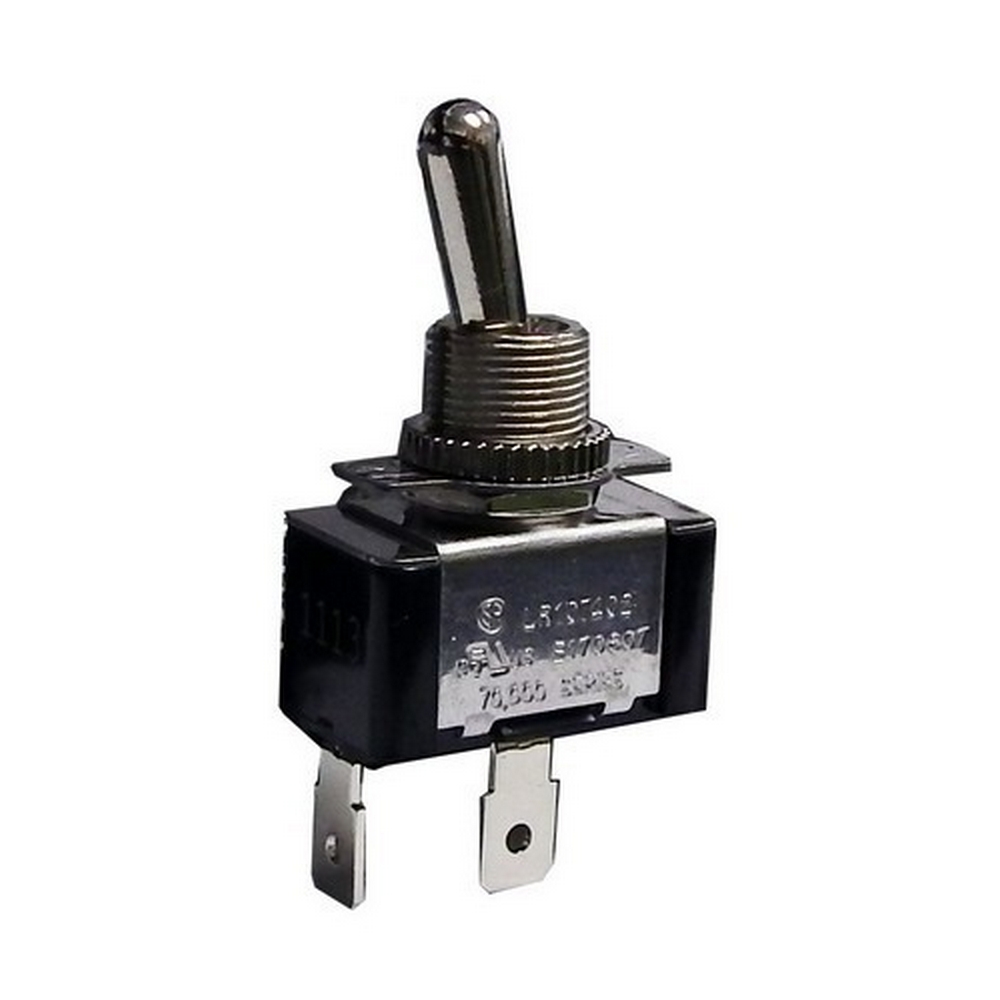

Morris 70071 Heavy Duty On-Off Double Toggle Switch for Motor Control Tools

Morris 70071 heavy-duty On-Off Double Toggle Switch is expertly designed for motor control, tools, and various equipment applications. This robust switch features solid brass or nickel-plated bushings, ensuring durability and reliability in demanding environments. With a compact design measuring 1.13" x 0.63" x 0.67", it easily fits into tight spaces while providing efficient functionality. Operating at dielectric strength of 1500V, the Morris 70071 switch guarantees safe operation across a wide range of temperatures, from 32°F to 185°F. It supports a standard load rating of 20AMP at 125VAC and 10AMP at 277VAC, making it suitable for various electrical needs. The switch also accommodates motor loads up to 3/4HP at both 125VAC and 250VAC. Equipped with two quick-connect spade terminals, installation is straightforward and hassle-free. The SPST (Single Pole, Single Throw) configuration allows for simple on-off control, enhancing user convenience. Recognized for its quality, this product is cURus listed, ensuring compliance with safety standards. Note that there is a warning regarding cancer and reproductive harm, so proper precautions should be taken during installation. The Morris 70071 switch is a reliable choice for any professional or knowledgeable homeowner seeking quality electrical components.

Our heavy duty On-Off Double Toggle Switch is used in Motor Control, Tool and other Equipment Applications.

• 2 Quick Connect Spade Terminals
• cURus Listed
• Mechanical Life Cycles: 100,000
• 1/2" Mounting Hole
• SPST, ON-OFF
• Operating Temperature: 32°F to 185°F
• Dielectric Strength: 1500V
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Solid Brass or Nickel Plated Bushings
• 3/4HP, 125/250VAC
