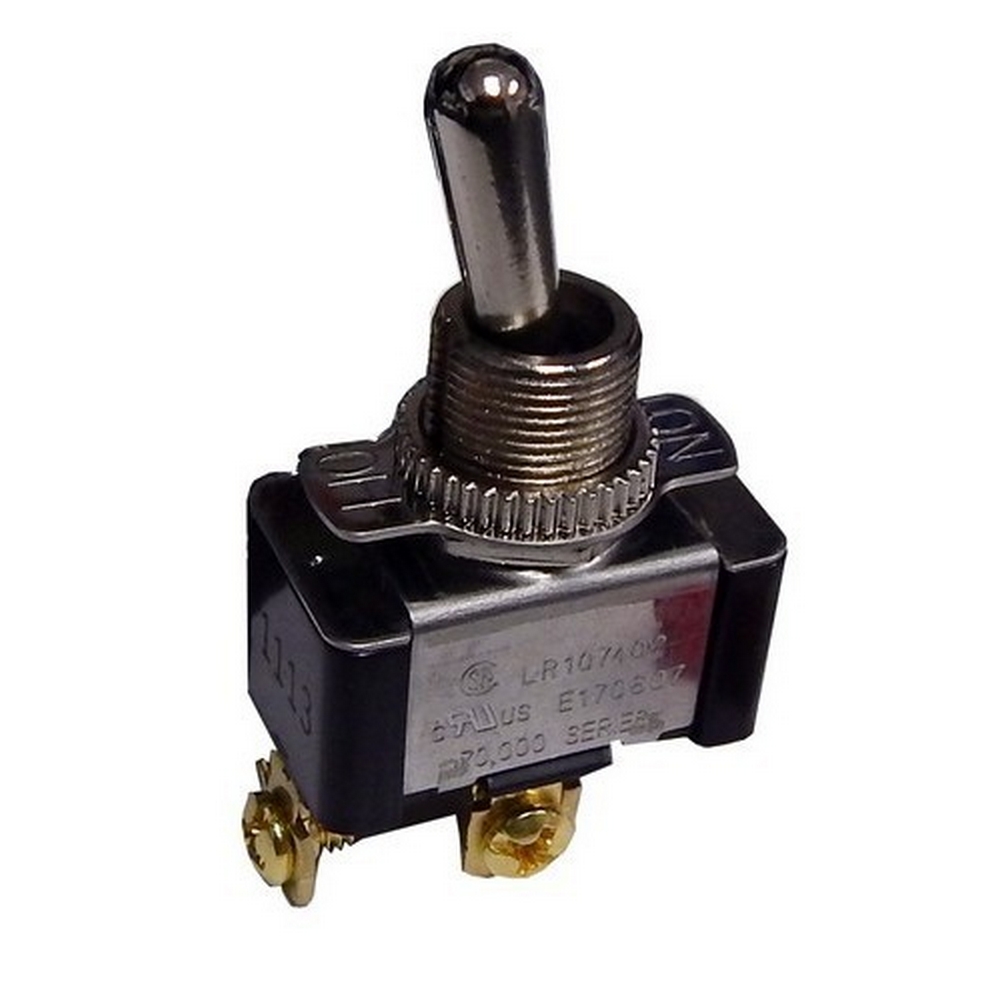

Morris 70072 Heavy Duty On-Off Double Toggle Switch for Motor Control Tools

Morris 70072 heavy-duty On-Off Double Toggle Switch is designed for reliable performance in motor control, tool, and various equipment applications. This robust switch features solid brass or nickel-plated bushings, ensuring durability and longevity even in demanding environments. With a mounting hole size of 1/2 inch, installation is straightforward and efficient. The Morris 70072 boasts impressive dielectric strength of 1500V, making it suitable for a range of electrical projects. It is rated for a mechanical lifespan of 100,000 cycles, providing peace of mind and dependability for users. Operating effectively between temperatures of 32°F to 185°F, this switch adapts to varying conditions. Engineered as a single-pole, single-throw (SPST) device, the Morris 70072 features two screw terminals for secure connections. It supports a standard load rating of 20 amps at 125VAC and 10 amps at 277VAC, along with a motor load rating of 20A at 125VAC and 10A at 250VAC, accommodating various electrical requirements. Additionally, it is cURus listed for safety compliance and includes an IP55 rating for water and dust protection. With the Morris 70072, you can trust in a switch built for performance and longevity in both residential and industrial settings.

Our heavy duty On-Off Double Toggle Switch is used in Motor Control, Tool and other Equipment Applications.

• cURus Listed
• Mechanical Life Cycles: 100,000
• 2 Screw Terminals
• 1/2" Mounting Hole
• SPST, ON-OFF
• Operating Temperature: 32°F to 185°F
• Dielectric Strength: 1500V
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Solid Brass or Nickel Plated Bushings
• 3/4HP, 125/250VAC
