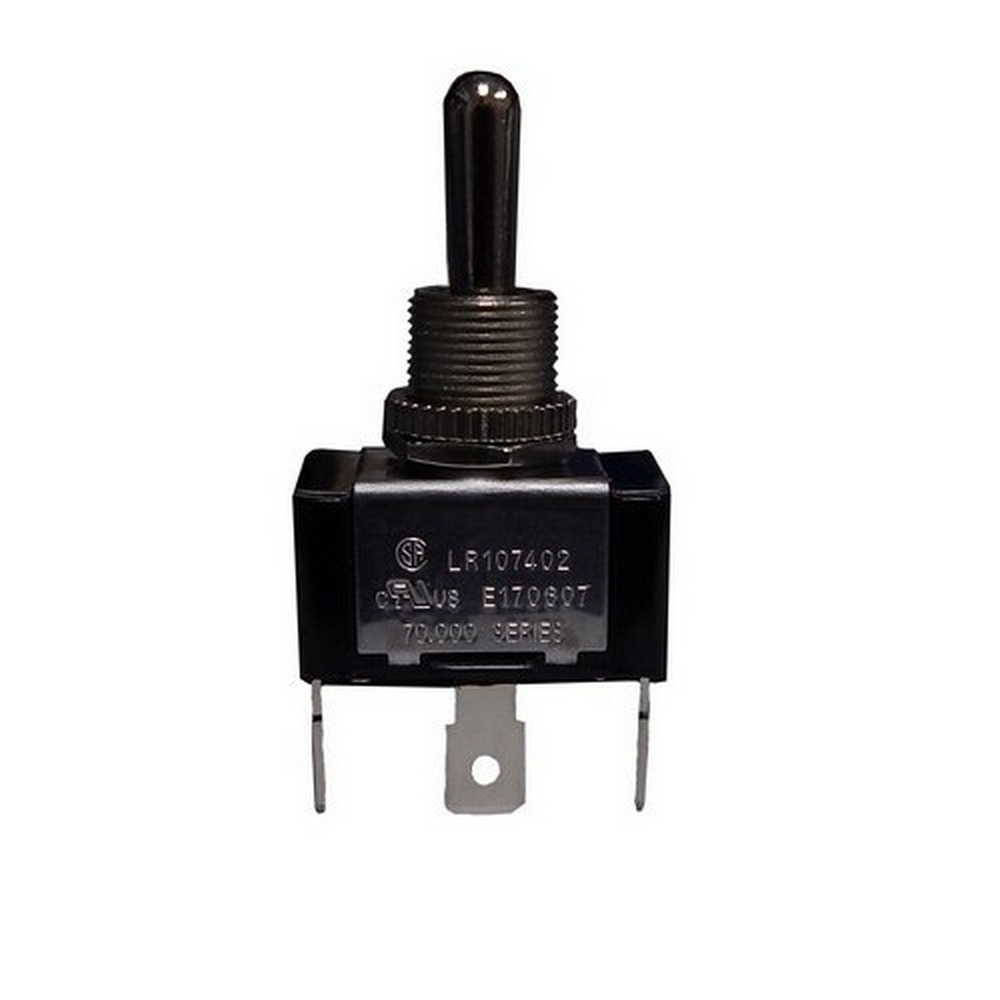

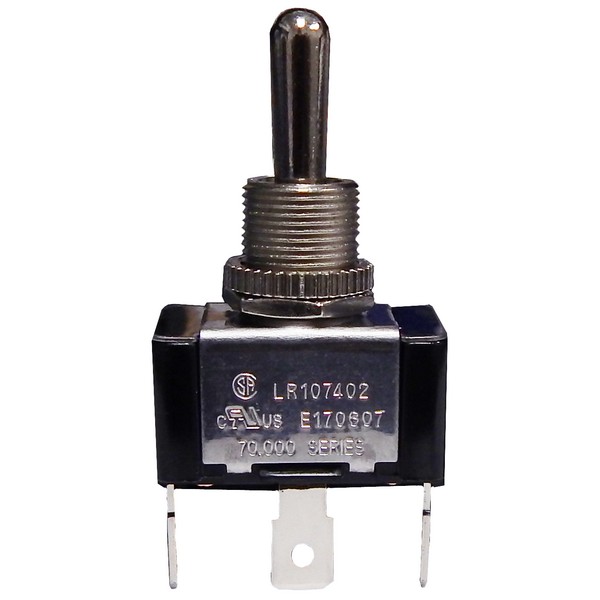

Morris 70081 Reliable SPDT Toggle Switch for Versatile Applications

Morris 70081 is a tough and reliable SPDT Toggle Switch, designed for a wide range of applications. This On-Off-On switch features three quick connect spade terminals, ensuring easy installation and efficient connectivity. With a robust motor load rating of 20 amps at 125VAC, 10 amps at 277VAC, and 3/4HP at 125/250VAC, it is well-suited for both residential and commercial use. Constructed with solid brass or nickel-plated bushings, the Morris 70081 offers durability and resistance to corrosion, while a dielectric strength of 1500V ensures safe operation. Mechanical life cycles reach an impressive 100,000, providing long-lasting performance that professionals can rely on. Operating effectively within a temperature range of 32°F to 185°F, this switch can handle various environmental conditions. Measuring 1.13" in length, 0.63" in width, and 0.67" in height, it fits into a 1/2" mounting hole, making it a versatile choice for different installations. The Morris 70081 is cURus listed, guaranteeing compliance with safety standards. Whether you're working on a new build or a repair project, this toggle switch is an essential component for your electrical needs.

A tough and reliable SPDT Toggle Switch for multiple applications.

• SPDT, On-Off-On
• cURus Listed
• Mechanical Life Cycles: 100,000
• 3 Quick Connect Spade Terminals
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• 3/4HP, 125/250VAC
• Solid Brass or Nickel Plated Bushings

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
