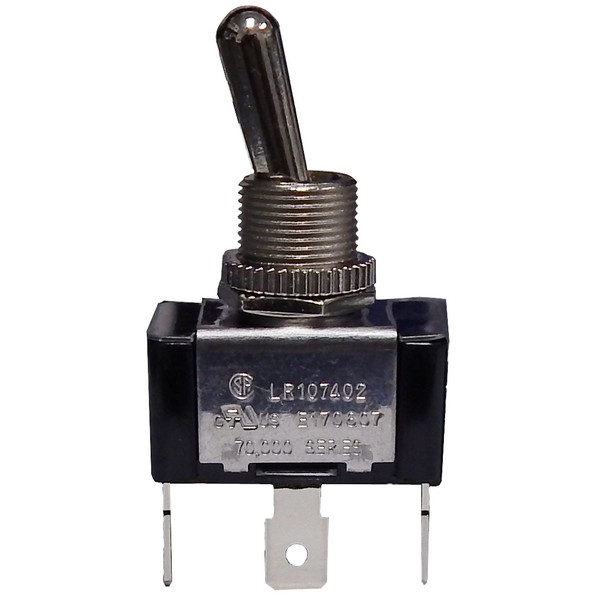

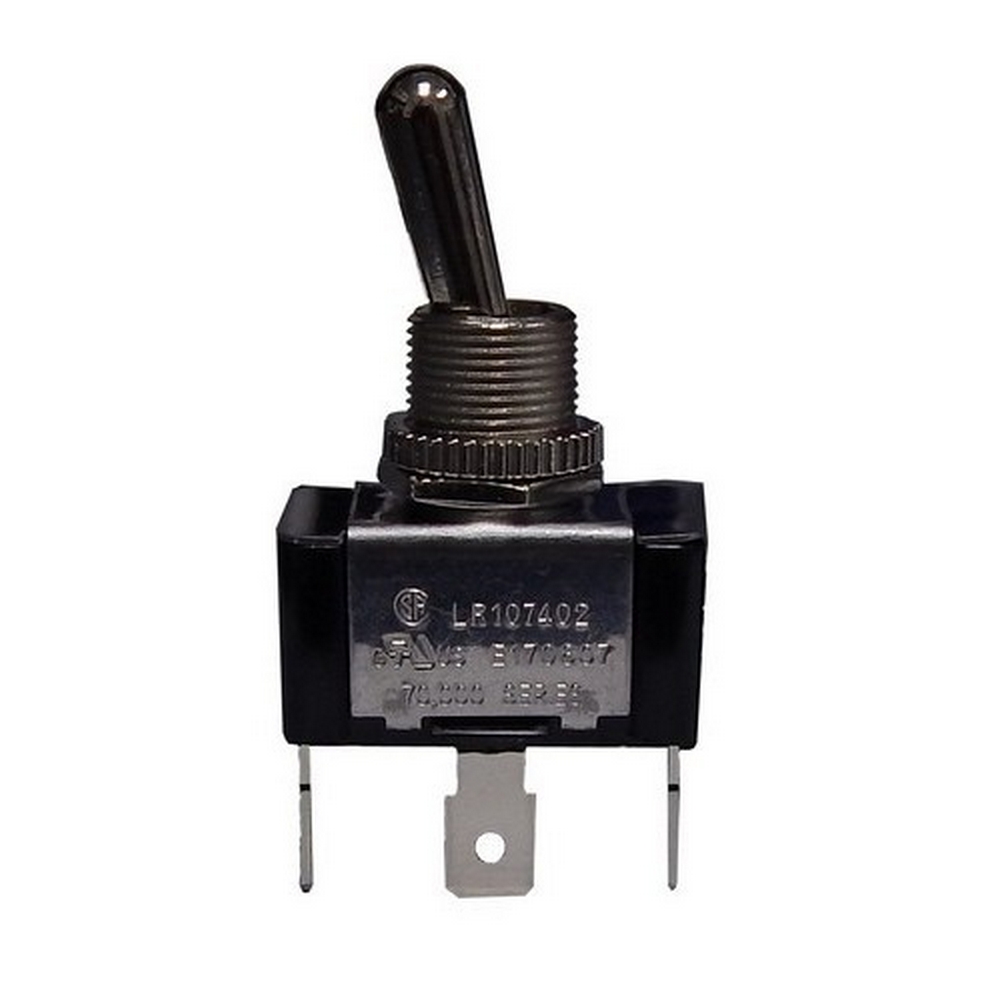

Morris 70091 is a tough and reliable SPDT Toggle Switch designed for multiple applications, making it an excellent choice for both commercial and residential projects. This On-On switch features three quick connect spade terminals, ensuring easy and efficient installation. With a robust rating of 20 amps at 125VAC and 10 amps at 277VAC, it is well-suited for a variety of electrical loads, including a motor load rating of 3/4HP at 125/250VAC. Constructed with solid brass or nickel-plated bushings, the Morris 70091 not only provides durability but also enhances electrical conductivity. It boasts a dielectric strength of 1500V, ensuring safe operation under various conditions. Designed for longevity, it can withstand up to 100,000 mechanical life cycles, making it a reliable choice for any project. The operating temperature range of 32°F to 185°F allows versatility for indoor and outdoor applications. With a compact size of 1.13" x .63" x .67", and a 1/2" mounting hole, this toggle switch is easy to integrate into various setups. Additionally, the product is cURus listed, reflecting compliance with safety standards. For professionals seeking dependable electrical components, the Morris 70091 Toggle Switch is an outstanding option.
A tough and reliable SPDT Toggle Switch for multiple applications.
Circuitry: SPDT
Color: Silver/Black
Country of Origin: China
Description: Heavy Duty 1 Pole Toggle Switch SPDT On-On Quick Connect Terminals
Dielectric Strength In Vac: 1500
Function: On-On
L x W x H: 1.13" x .63" x .67"
Material: Solid Brass or Nickel Plated Bushings
Motor Load Rating: 20A 125VAC 10A 250VAC 3/4HP 125-250VAC
No. Of Terminals: 3
Operation Range: 32 to 185
Poles: SPDT
Standard Load Rating: 20A 125VAC 10A 277VAC
Terminal: Quick Connect Spade
Terminal Type: 3 Quick Connect Spade
Termination Type: Quick Connect Spade
Type: Heavy Duty Toggle Switch SPDT On-On Quick Connect Terminals
Ul Listing: cURus
Upc: 601986700917
Warning: Cancer and Reproductive Harm
