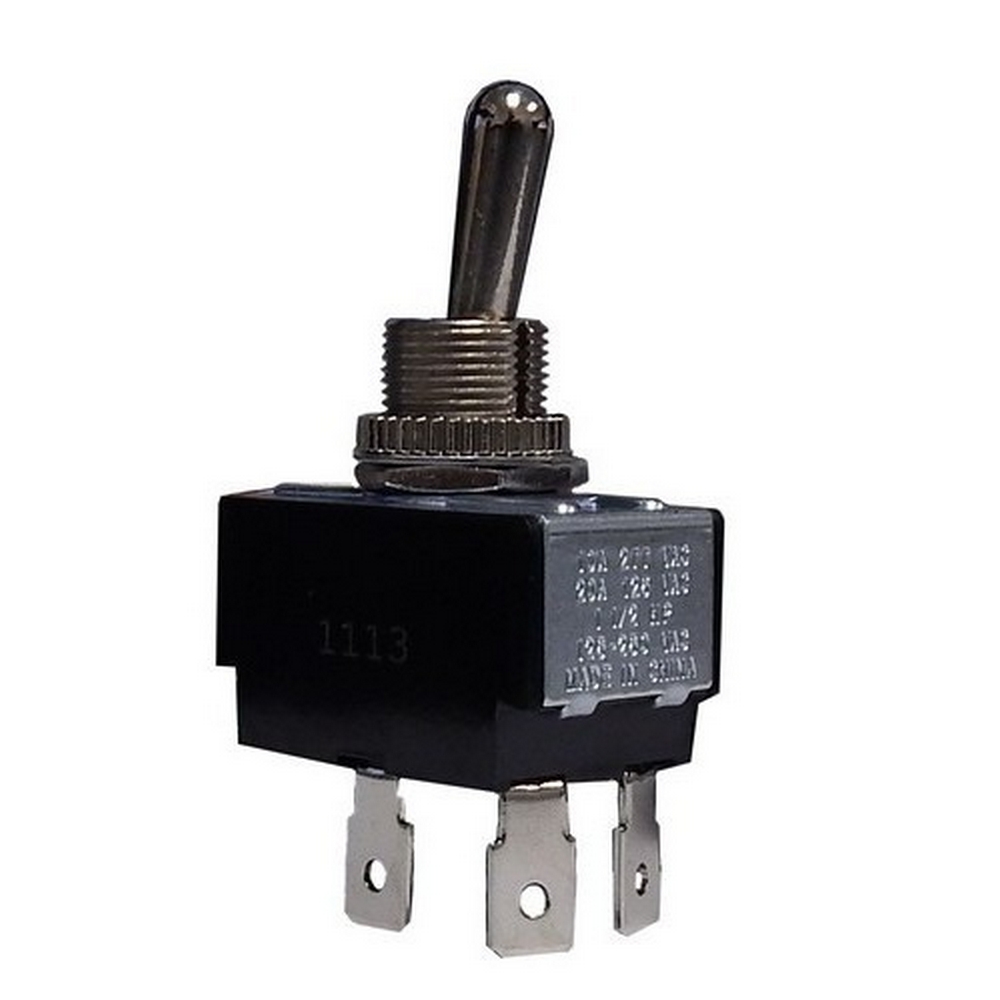

Morris 70101 Heavy-Duty DPST Toggle Switch for Control Panels and Equipment

Morris 70101 Heavy-Duty DPST Toggle Switch offers reliable performance for control panels and equipment. Designed as a Double Pole Single Throw (DPST) switch, it allows for easy On-Off operation, making it an essential component in various electrical applications. With a robust construction, this switch features four quick connect spade terminals that facilitate straightforward wiring and installation. Rated for 20 amps at 125VAC and 10 amps at 277VAC, the Morris 70101 is also capable of handling motor loads up to 1-1/2 horsepower at 125/250VAC, ensuring it meets the demands of both residential and commercial environments. The switch is equipped with solid brass or nickel-plated bushings that enhance durability and resist corrosion, extending the lifespan of the product. With a mounting hole size of 1/2 inch, this switch is easy to install in various panels. It boasts an impressive dielectric strength of 1500V and a mechanical life cycle of 100,000, ensuring reliability in high-stress situations. Operating efficiently within a temperature range of 32°F to 185°F, the Morris 70101 is cURus listed, affirming its compliance with safety standards. Choose this toggle switch for dependable control in your electrical projects.

Our heavy-duty DPST Toggle Switch is used in Control Panels and Equipment.

• cURus Listed
• Mechanical Life Cycles: 100,000
• 1-1/2HP, 125/250VAC
• DPST, On-Off
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• 4 Quick Connect Spade Terminals
• Solid Brass or Nickel Plated Bushings
