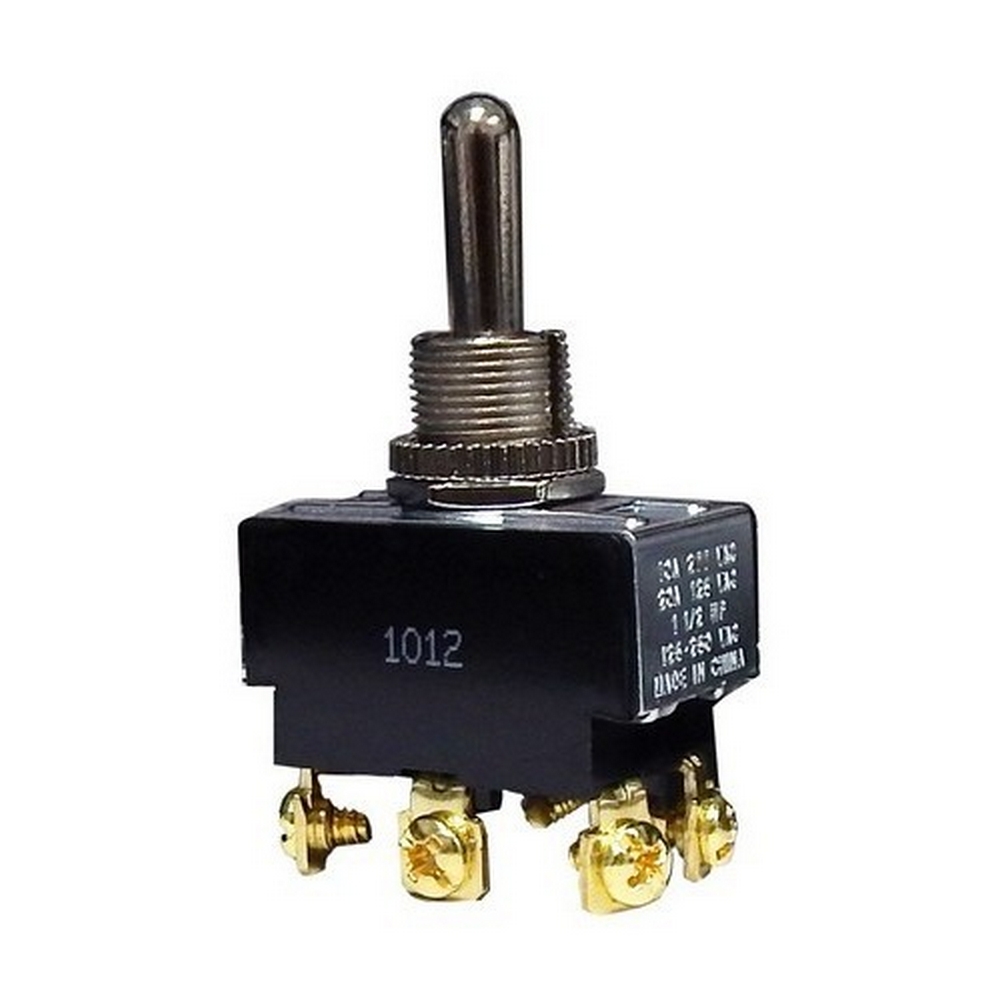

Morris 70110 Large DPDT Toggle Switch - 3 Positions

Morris 70110 Large DPDT Toggle Switch offers a reliable solution for controlling electrical circuits with ease. This versatile switch features an On-Off-On function and is designed with six screw terminals, allowing for straightforward installation and secure connections. With a robust motor load rating of 20 amps at 125VAC and 10 amps at 277VAC, it is well-suited for a variety of applications, including both residential and industrial settings. Constructed with solid brass or nickel-plated bushings, the Morris 70110 ensures durability and longevity, capable of withstanding mechanical life cycles of up to 100,000. It also boasts a dielectric strength of 1500V, providing an added layer of safety during operation. The switch operates effectively within a temperature range of 32°F to 185°F, making it adaptable to various environments. Measuring 1.30" x 0.76" x 0.80", this toggle switch requires a 1/2" mounting hole for installation. cURus listed for safety, this product meets stringent quality standards. Whether you're upgrading existing systems or working on new projects, the Morris 70110 Large DPDT Toggle Switch is a dependable choice for your electrical control needs.

This Large DPDT Toggle Switch has three positions.

• 6 Screw Terminals
• DPDT, On-Off-On
• cURus Listed
• Mechanical Life Cycles: 100,000
• 1-1/2HP, 125/250VAC
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
