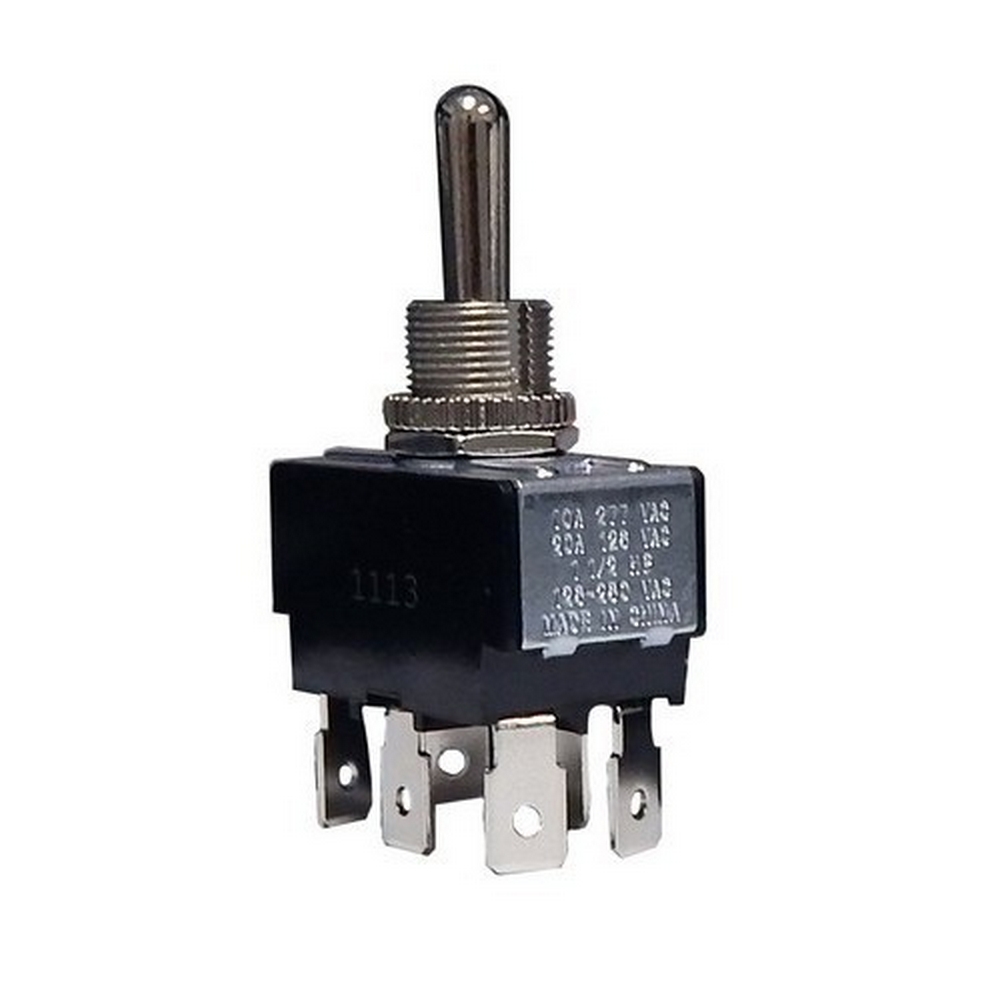

Morris 70111 Large DPDT Toggle Switch - 3 Positions

Morris 70111 Large DPDT Toggle Switch offers a versatile solution for your electrical needs with its On-Off-On functionality, making it ideal for various applications. This switch is designed with six quick connect spade terminals, ensuring a secure and efficient connection for your electrical systems. Built to handle demanding environments, the switch boasts a robust motor load rating of 20 amps at 125VAC and 10 amps at 277VAC, with a capacity of 1-1/2 horsepower for both 125 and 250VAC operations. The solid brass or nickel-plated bushings enhance durability, ensuring longevity even in challenging conditions. With a compact size of 1.30" x 0.76" x 0.80" and a 1/2" mounting hole, installation is straightforward and adaptable to your setup. The Morris 70111 also features impressive dielectric strength rated at 1500V and a mechanical life cycle of 100,000, providing peace of mind regarding its reliability. Operating efficiently within a temperature range of 32°F to 185°F, this switch is cURus listed, ensuring it meets rigorous safety standards. Choose the Morris 70111 for a dependable toggle switch that combines functionality and durability, making it a perfect addition to any residential, commercial, or industrial project.

This Large DPDT Toggle Switch has three positions.

• 6 Quick Connect Spade Terminals
• DPDT, On-Off-On
• cURus Listed
• Mechanical Life Cycles: 100,000
• 1-1/2HP, 125/250VAC
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
