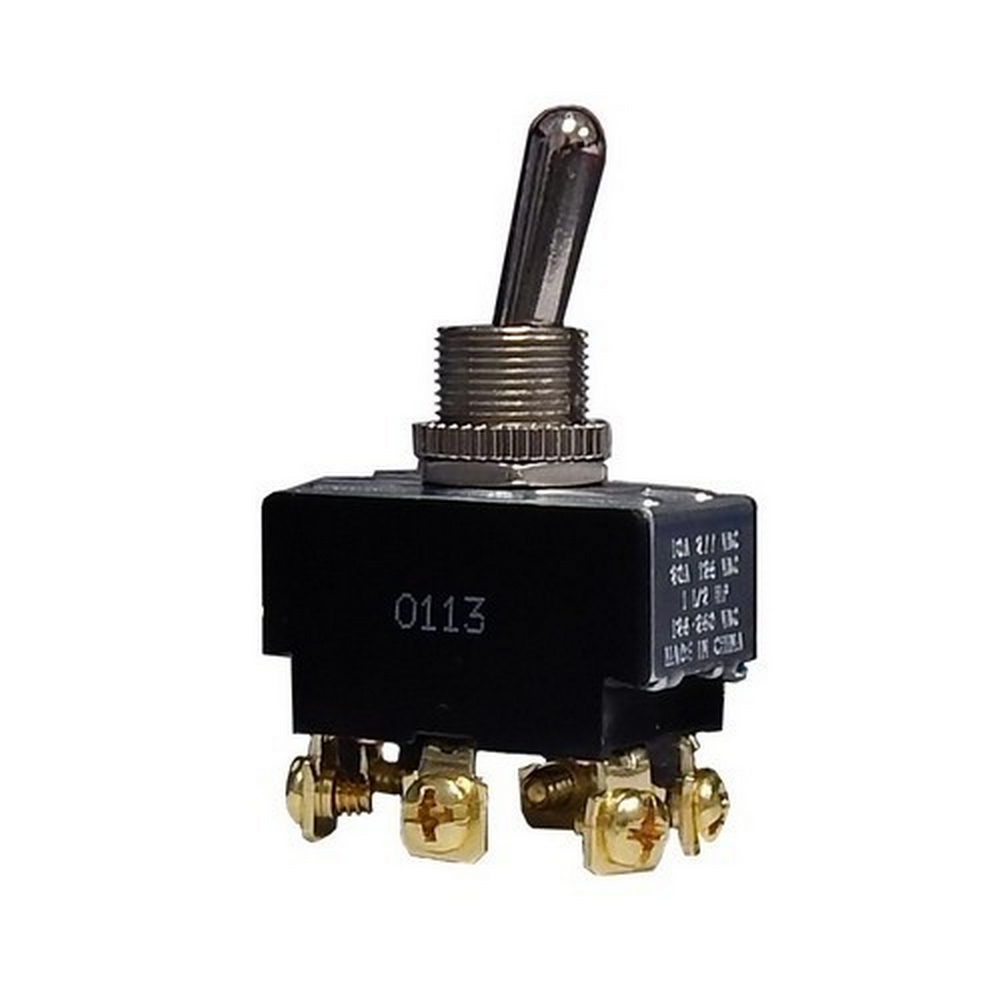

Morris 70130 Large DPDT Toggle Switch - 3 Positions

Morris 70130 Large DPDT Toggle Switch offers reliable functionality with its three-position On-On design, making it an excellent choice for various electrical applications. This switch features six screw terminals that ensure secure connections, accommodating a motor load rating of up to 20 amps at 125VAC and 10 amps at 277VAC. Additionally, it can handle a 1-1/2 HP load at both 125 and 250VAC, providing versatility for residential, commercial, and industrial setups. Built for durability, the switch includes solid brass or nickel-plated bushings and boasts a dielectric strength of 1500V, ensuring safety and performance in demanding environments. With a mechanical life cycle rating of 100,000, the Morris 70130 is designed to endure prolonged use, making it a dependable choice for building professionals and knowledgeable homeowners alike. Operating effectively in temperatures ranging from 32°F to 185°F, this toggle switch is cURus listed, verifying its compliance with safety standards. The compact dimensions of 1.30" x 0.76" x 0.80" and a 1/2" mounting hole make installation straightforward. Choose the Morris 70130 for a robust and efficient solution in your electrical projects.

This Large DPDT Toggle Switch has three positions.

• DPDT, On-On
• 6 Screw Terminals
• cURus Listed
• Mechanical Life Cycles: 100,000
• 1-1/2HP, 125/250VAC
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
