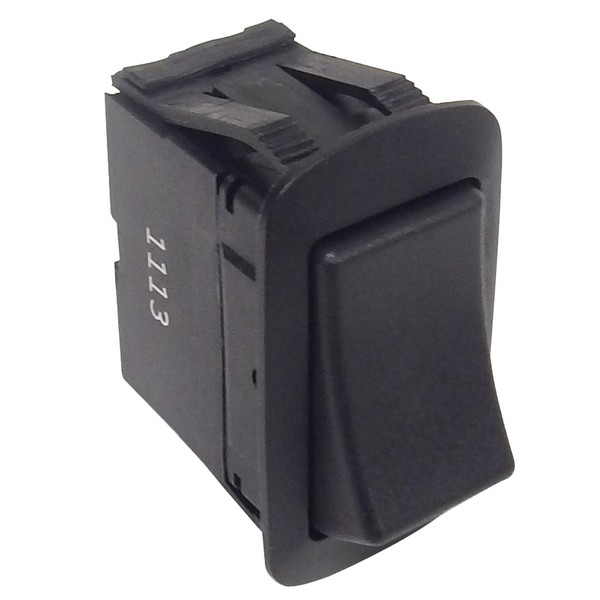

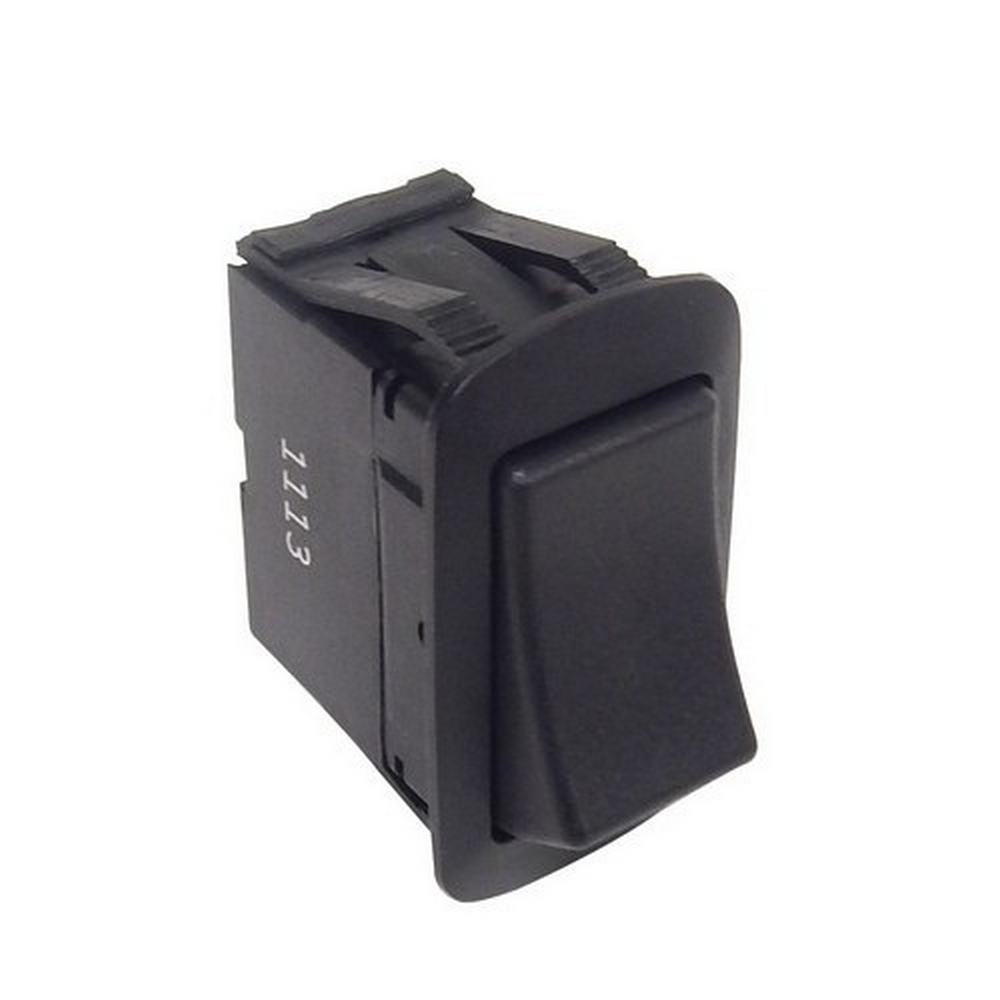

Morris 70172 Rocker Switches for Equipment Control Applications

Morris 70172 Rocker Switches are designed for reliable equipment control applications, making them a vital component for any electrical setup. Constructed with a durable nylon 6/6 frame and actuator, these switches can withstand a wide operating temperature range of -4°F to 185°F, ensuring performance in various environments. Featuring quick connect spade terminals, installation is straightforward and efficient, allowing for seamless integration into your projects. With a contact resistance of just 50 milliohm and insulation resistance of 100 milliohm, you can trust in their ability to maintain a strong electrical connection. The dielectric strength of 1500V further enhances safety, making these switches suitable for demanding applications. The Morris 70172 is a double pole, single throw (DPST) switch rated for standard loads of 20A at 125VAC, 10A at 250VAC, and 21A at 14VDC, along with a motor load rating of 16A at 125VAC and 10A at 277VAC. Compact in size, measuring 1.82" x .98" x 1.11", it fits easily into various installations. Additionally, this product is cURus/CSA listed, ensuring compliance with industry standards. Choose the Morris 70172 Rocker Switch for dependable operation in your electrical applications.

Rocker Switches are used in Equipment Control Applications.

• Nylon 6/6 Frame & Actuator
• Insulation Resistance: 100 milliohm
• Operating Temp: -4°F to 185°F
• cURus/CSA Listed
• Contact Resistance: 50 milliohm
• Termination Type: Quick Connect Spade Terminals
• Dielectric Strength: 1500V
