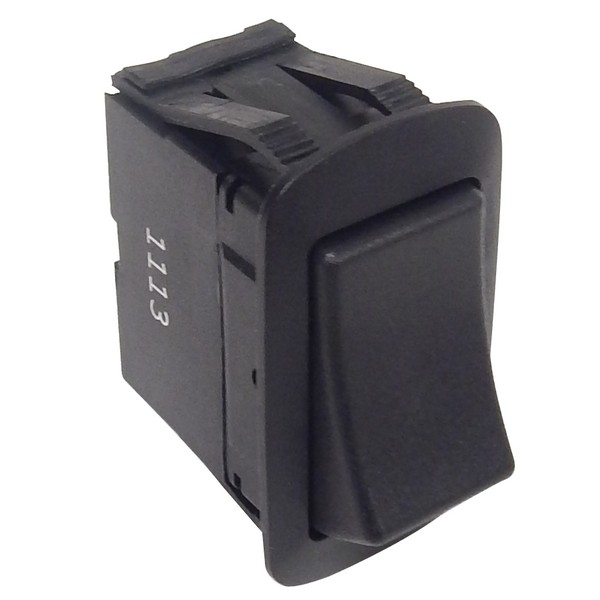

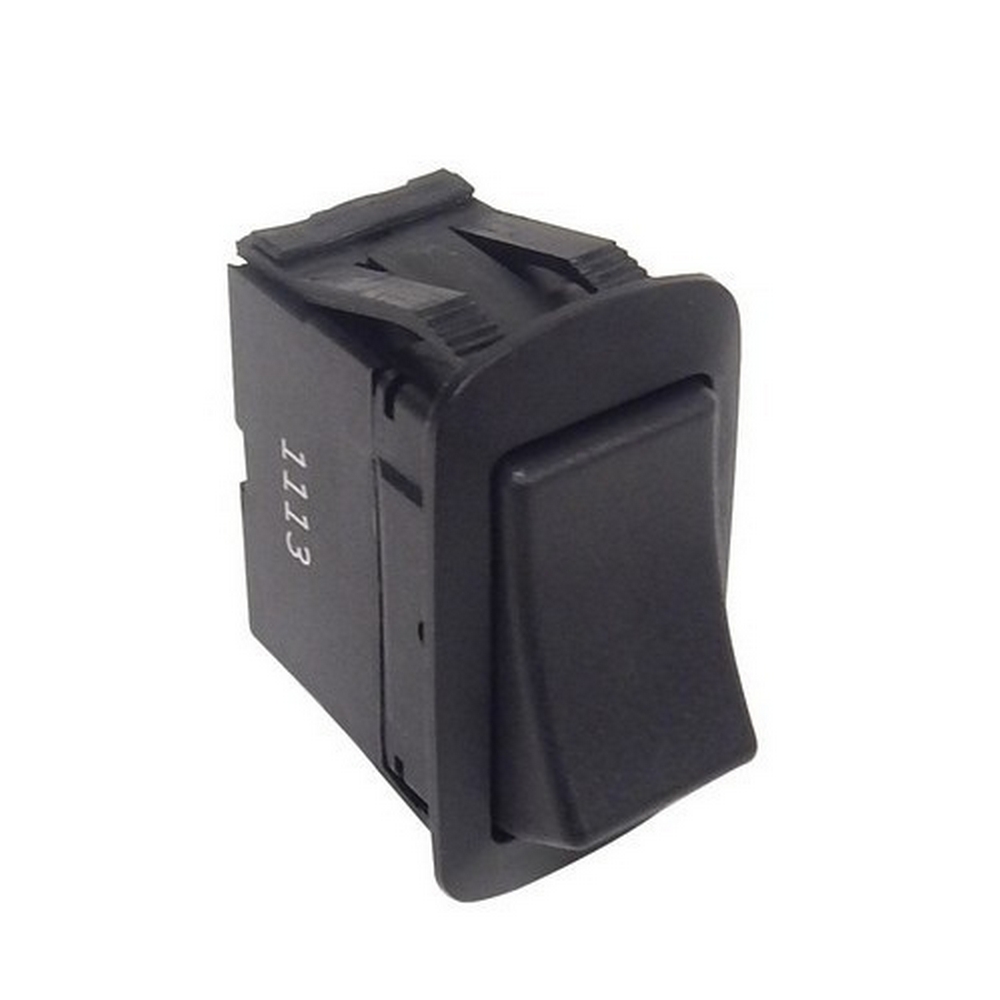

Morris 70175 Rocker Switches provide reliable control for various equipment applications, ensuring your projects run smoothly. Constructed with a durable nylon 6/6 frame and actuator, these switches are built to withstand demanding environments while maintaining their performance. The quick connect spade terminal design simplifies installation, allowing for efficient connections in your electrical systems. With a contact resistance of just 50 milliohm and an impressive insulation resistance of 100 milliohm, these switches ensure minimal energy loss and optimal safety. Designed for versatility, the dielectric strength of 1500V further enhances their reliability in high-voltage applications. Capable of operating in temperatures ranging from -4°F to 185°F, they are suitable for various conditions. The Morris 70175 features a double pole double throw (DPDT) configuration with an (On)-Off-(On) function, making it adaptable for diverse control scenarios. It supports a motor load rating of 16A at 125VAC and 10A at 277VAC, with a standard load rating of 20A at 125VAC. Compact dimensions of 1.82" x 0.98" x 1.11" make installation straightforward. Certified by cURus/CSA, the Morris 70175 Rocker Switch is an excellent choice for professionals seeking dependable performance in both residential and commercial settings.
Rocker Switches are used in Equipment Control Applications.
# Terminals: 6
Circuitry: DPDT
Color: Black
Country of Origin: China
Description: Rocker Switch DPDT (On)-Off-(On) Quick Connect Spade Terminals
Function: (On)-Off-(On)
L x W x H: 1.82" x .98" x 1.11"
Material: Nylon
Motor Load Rating: 16A 125VAC 10A 277VAC 3/4HP
No. Of Terminals: 6
Poles: DPDT
Standard Load Rating: 20A 125VAC 10A 250VAC 21A 14VDC
Terminal: Quick Connect Spade
Terminal Type: 6 Quick Connect Spade
Termination Type: Quick Connect Spade
Type: Rocker Switch
Ul Listing: cURus, CSA
Upc: 601986701754
Warning: Cancer and Reproductive Harm
