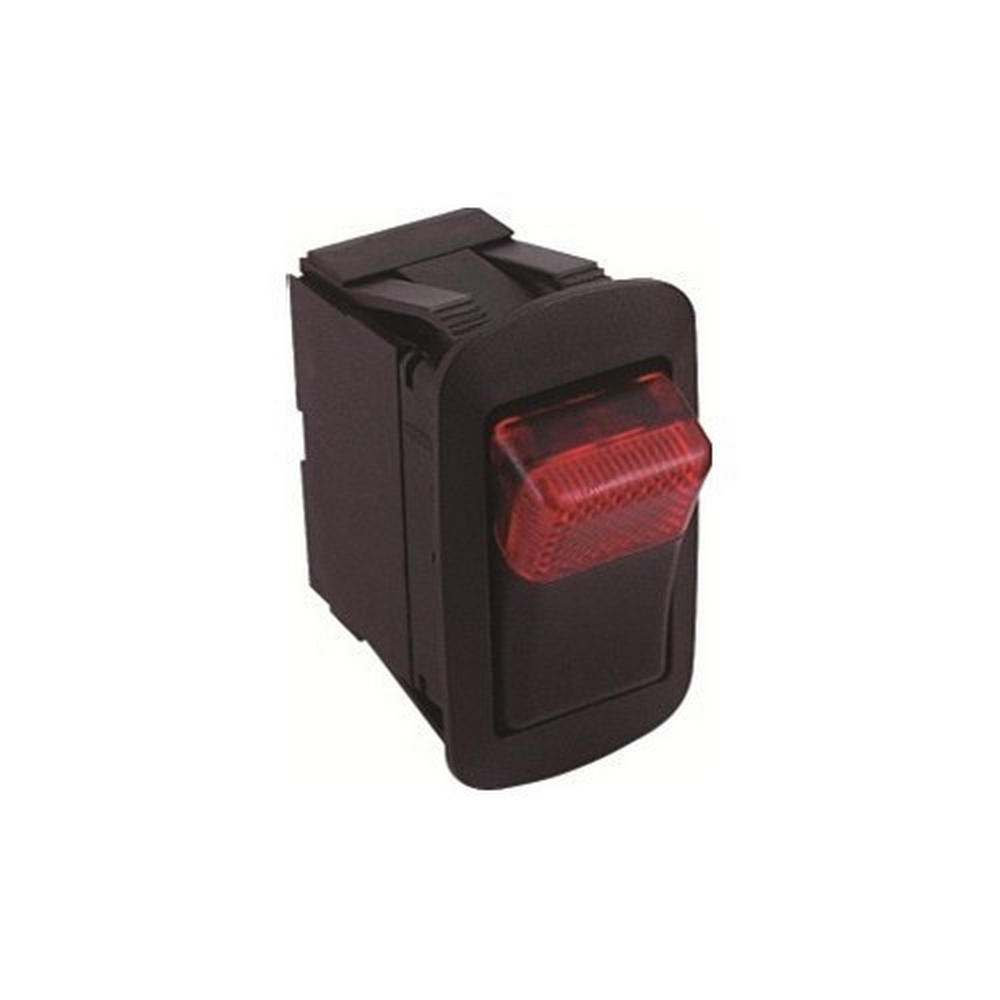

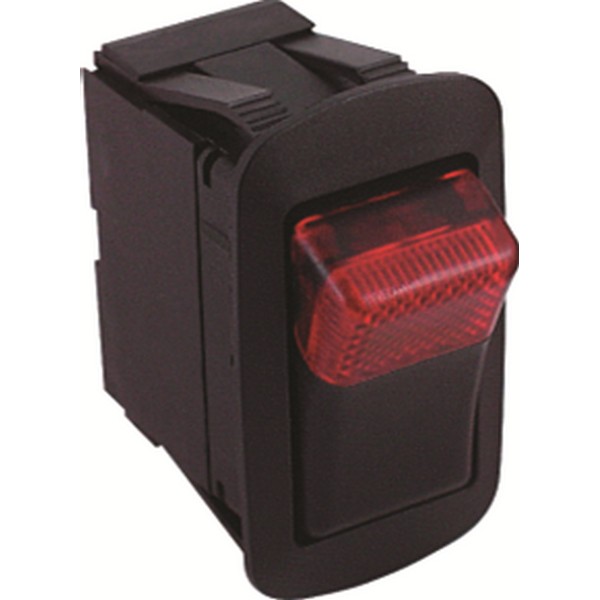

Morris 70176 Rocker Switches for Equipment Control Applications

Morris 70176 Rocker Switches are designed specifically for Equipment Control Applications, providing a reliable solution for on-off operations in various settings. Featuring a clear, lit design, these switches enhance visibility in dimly lit areas, ensuring ease of use. Constructed with a durable nylon 6/6 frame and actuator, the Morris 70176 is built to withstand demanding environments. This double-pole single-throw (DPST) switch supports a motor load rating of 16A at 125VAC and 10A at 277VAC, making it suitable for a range of applications. Its standard load rating of 20A at 125VAC and 10A at 250VAC further emphasizes its capability to manage heavier electrical loads. With quick connect spade terminals for easy installation, the switch maintains contact resistance at a mere 50 milliohm and insulation resistance at 100 milliohm. The dielectric strength of 1500V ensures safety and reliability during operation. The operating temperature range of -4°F to 185°F allows it to function effectively in various climates. Certified with cURus/CSA listings, this product meets critical safety standards. Available in a sleek black and red light design, the Morris 70176 Rocker Switch is an essential component for any professional looking to optimize equipment control.

Rocker Switches are used in Equipment Control Applications.

• Nylon 6/6 Frame & Actuator
• Insulation Resistance: 100 milliohm
• Operating Temp: -4°F to 185°F
• Switch is lit for dim areas
• cURus/CSA Listed
• DPST, On-Off
• Contact Resistance: 50 milliohm
• Termination Type: Quick Connect Spade Terminals
• Dielectric Strength: 1500V

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
