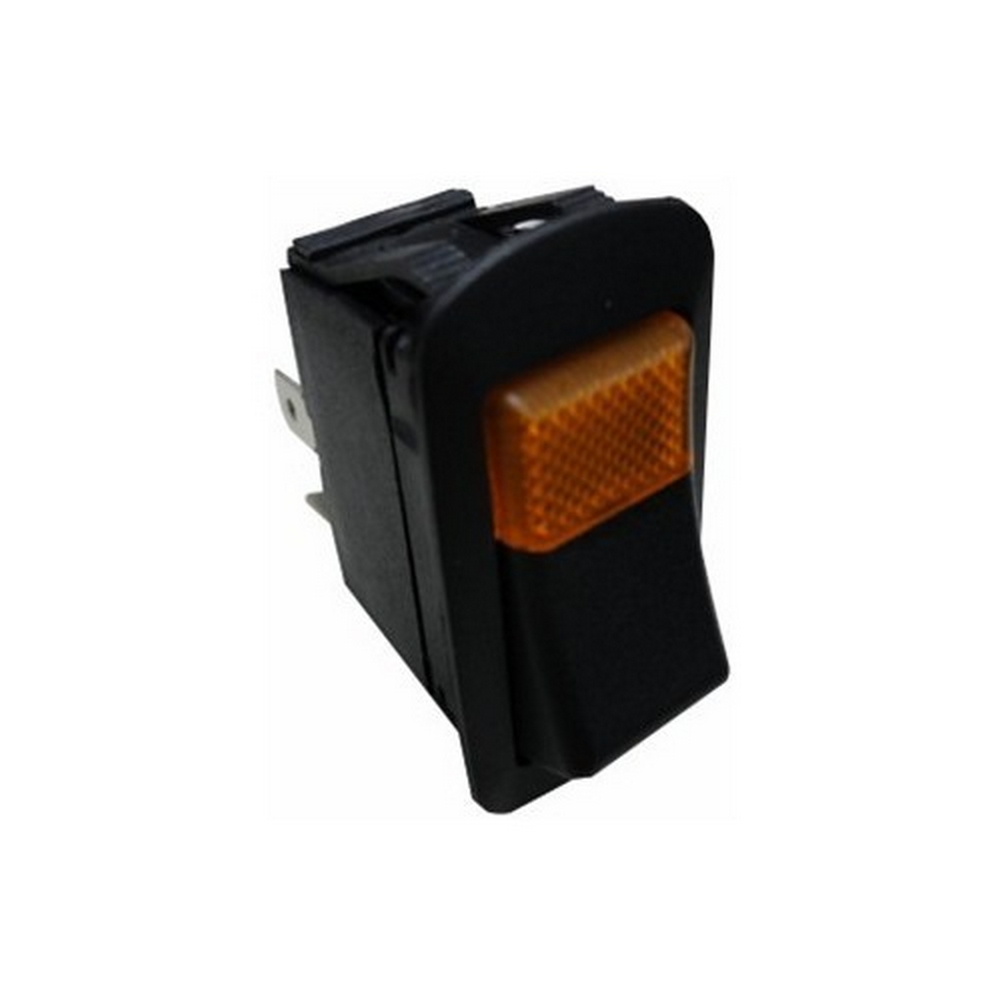

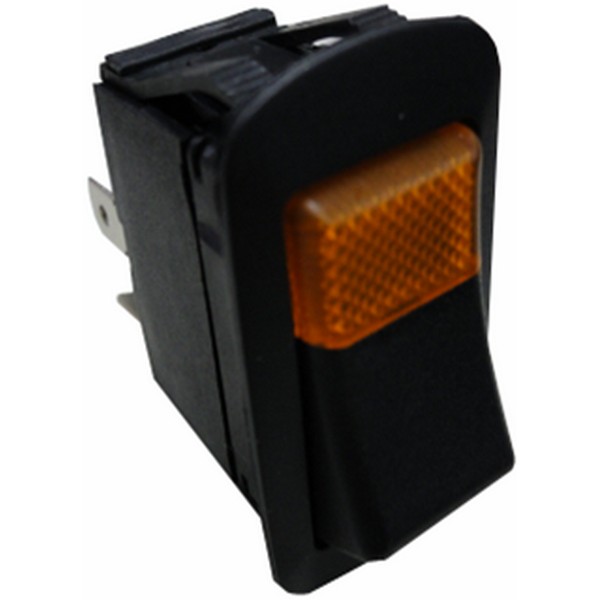

Morris 70177 Rocker Switches for Equipment Control Applications

Morris 70177 Rocker Switches are expertly designed for equipment control applications, ensuring reliable operation in various environments. Featuring a convenient lit design, these switches provide visibility in dimly lit areas, enhancing user experience and functionality. The double-pole, single-throw (DPST) configuration allows for efficient On-Off control, making them a versatile choice for numerous electrical setups. Crafted with a durable nylon 6/6 frame and actuator, the Morris 70177 is built to withstand demanding conditions. It utilizes quick connect spade terminals for easy installation, minimizing downtime on the job. With a contact resistance of just 50 milliohm and insulation resistance of 100 milliohm, this rocker switch ensures dependable performance and safety. The dielectric strength of 1500V further guarantees protection against electrical surges. Operating within a wide temperature range of -4°F to 185°F, these switches are suitable for various applications. The standard load rating of 20A at 125VAC and motor load rating of 16A at 125VAC make them capable of handling substantial electrical loads. Certified by cURus and CSA, the Morris 70177 Rocker Switches deliver quality and reliability for professionals and knowledgeable homeowners alike.

Rocker Switches are used in Equipment Control Applications.

• Nylon 6/6 Frame & Actuator
• Insulation Resistance: 100 milliohm
• Operating Temp: -4°F to 185°F
• Switch is lit for dim areas
• cURus/CSA Listed
• DPST, On-Off
• Contact Resistance: 50 milliohm
• Termination Type: Quick Connect Spade Terminals
• Dielectric Strength: 1500V

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
