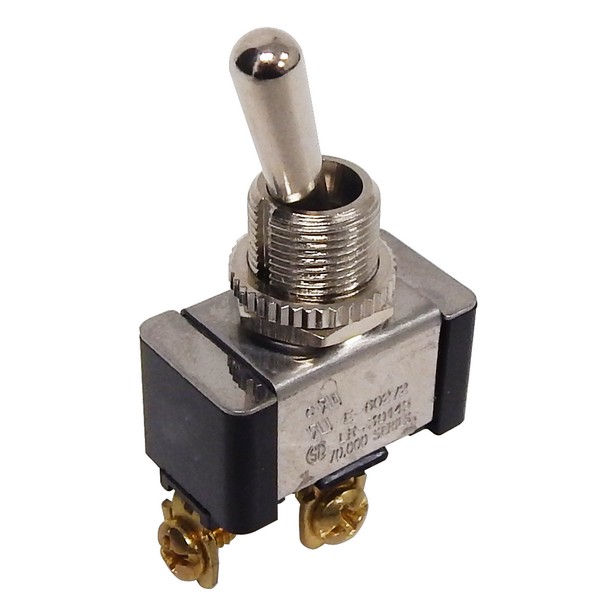

Morris 70250 is a heavy-duty momentary double toggle switch designed specifically for motor control tool applications. This robust switch features a Single Pole Single Throw (SPST) configuration with two screw terminals, ensuring secure and reliable connections. With a rating of 20 amps at 125VAC and 10 amps at 277VAC, it is suited for a variety of electrical demands, including a motor load of up to 3/4 horsepower at 125 or 250VAC. Engineered for durability, the Morris 70250 offers a mechanical life cycle of 100,000 operations, making it an excellent choice for both commercial and industrial settings. The switch operates effectively within a temperature range of 32°F to 185°F and is cURus listed for safety and efficacy. Installation is straightforward with a 1/2" mounting hole, and solid brass or nickel-plated bushings enhance its longevity and performance. With a dielectric strength of 1500V, this switch provides added safety for your electrical systems. Whether you are a building professional or a knowledgeable homeowner, the Morris 70250 is a reliable choice for your motor control applications, ensuring optimal performance and peace of mind.
This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.
# Poles: 1
# Throw: 2
Amps @ 125 V: 20
Circuitry: SPST
Color: Black/Silver
Country of Origin: China
Description: Heavy Duty Momentary Contact Toggle Switch SPST (On)-Off Screw Terminals
Dielectric Strength In Vac: 1500
Duty Grade: Heavy Duty
Function: Momentary (On)-Off
HP @ 125 V: 3/4
L x W x H: 1.13" x .57" x .61"
Material: Solid Brass or Nickel Plated Bushings
Motor Load Rating: 20A 125VAC 10A 250VAC 3/4HP 125-250VAC
No. Of Terminals: 2
Operation Range: 32 to 185
Poles: SPST
Standard Load Rating: 20A 125VAC 10A 277VAC
Switch Function: Momentary Off-(On)
Switch Type: Toggle
Terminal Type: 2 Screw
Termination Type: Screws
Type: Heavy Duty Momentary Contact Toggle Switch SPST
Ul Listing: cURus
Upc: 601986702508
Warning: Cancer and Reproductive Harm
