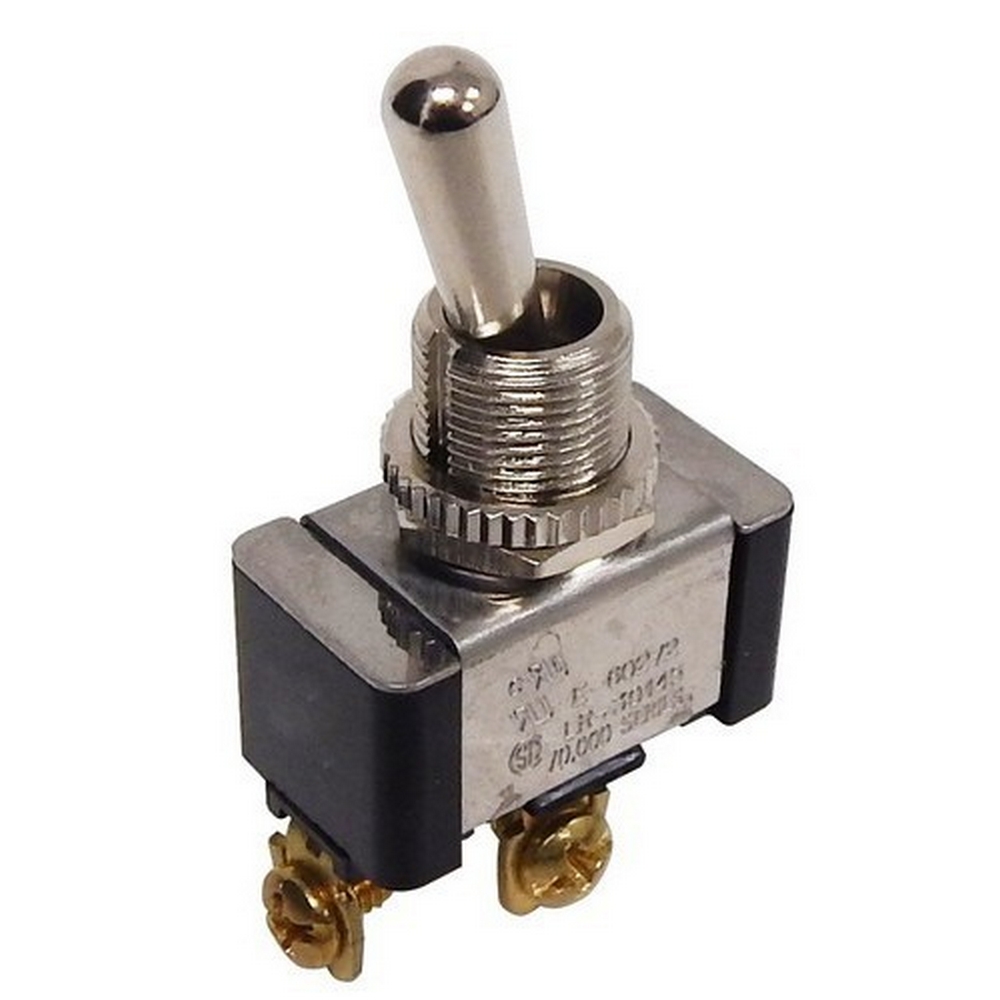

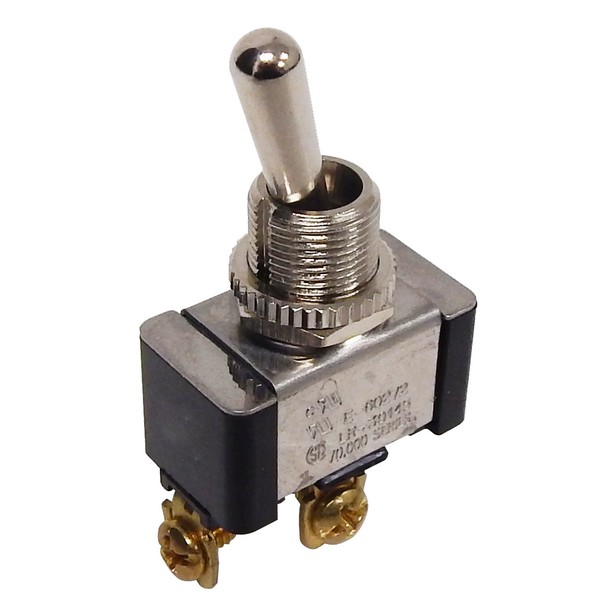

Morris 70252 Heavy Duty Momentary Double Toggle Switch for Motor Control Tools

Morris 70252 is a heavy-duty Momentary Double Toggle Switch designed for motor control tool applications. This switch features a Single Pole Single Throw (SPST) configuration with two screw terminals, ensuring a reliable and straightforward installation process. With a robust capacity of 20 amps at 125VAC and 10 amps at 277VAC, it is suitable for a wide range of electrical settings. Additionally, it can handle a motor load rating of 3/4 HP at both 125VAC and 250VAC, making it a versatile choice for various projects. Crafted with solid brass or nickel-plated bushings, the Morris 70252 switch is built for durability and long-term use. Its dielectric strength of 1500V and mechanical life cycles rated at 100,000 ensure that it can withstand rigorous operation without compromising performance. This switch operates efficiently within a temperature range of 32°F to 185°F, allowing for flexibility in different environments. Measuring 1.13" x 0.57" x 0.61", it fits neatly into a 1/2" mounting hole, making it ideal for tight spaces. The switch is cURus listed, providing confidence in safety and compliance. Choose the Morris 70252 for your electrical needs and experience the blend of reliability and performance it delivers.

This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.

• cURus Listed
• Mechanical Life Cycles: 100,000
• Momentary = ( )
• 2 Screw Terminals
• SPST
• 3/4HP 125/250VAC
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
