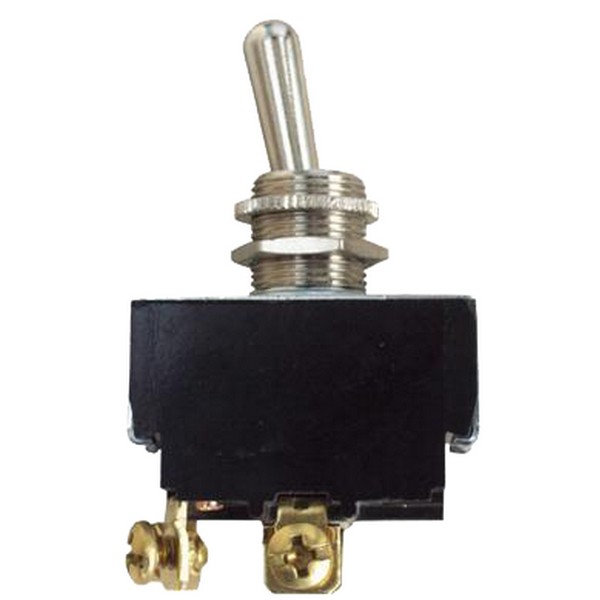

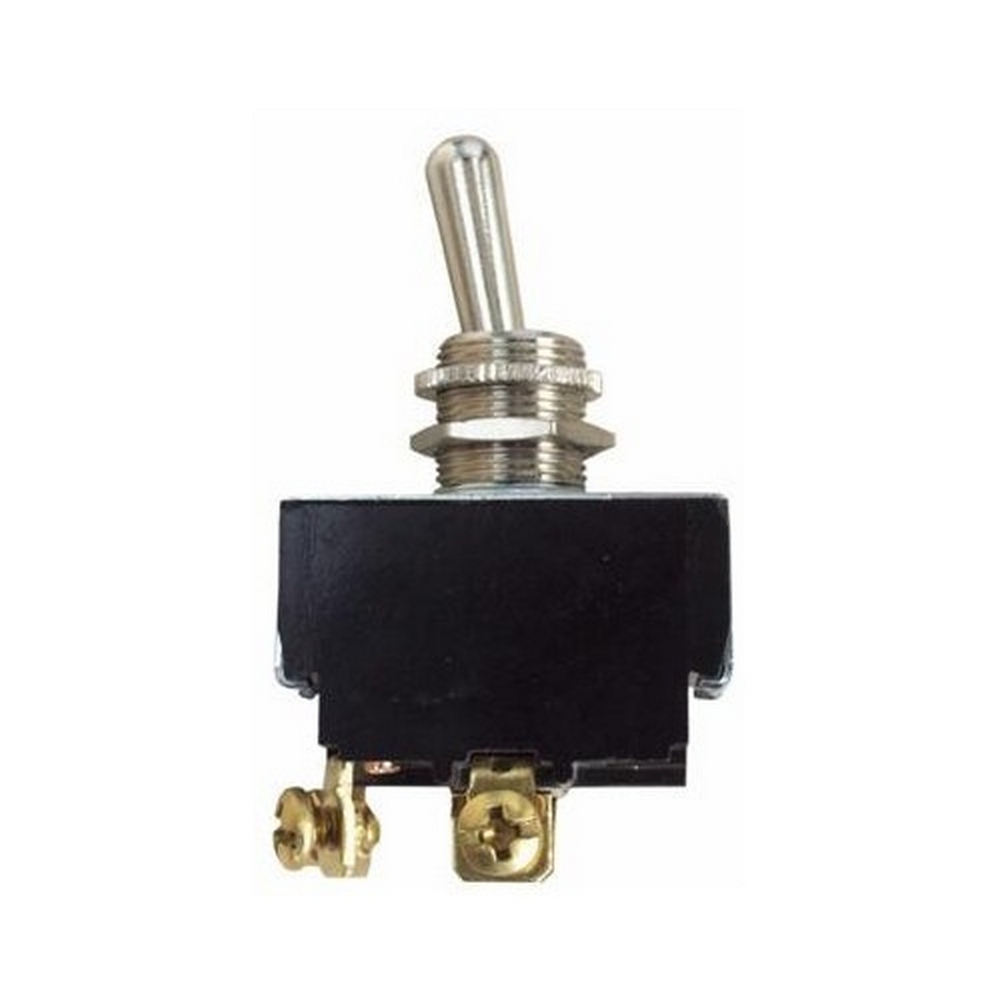

Morris 70260 Heavy Duty Momentary Double Toggle Switch for Motor Control Applications

Morris 70260 is a heavy-duty momentary double toggle switch designed specifically for motor control tool applications. This durable switch features a double pole, single throw (DPST) configuration and is equipped with four screw terminals, ensuring a secure and reliable connection for your electrical setups. With a load rating of 20 amps at 125VAC and 10 amps at 277VAC, this switch is built to handle demanding tasks efficiently. It can also manage motor loads of up to 1-1/2 horsepower at both 125VAC and 250VAC, making it an excellent choice for various industrial and commercial applications. The Morris 70260 switch is crafted with solid brass or nickel-plated bushings, enhancing its durability and resistance to corrosion. Featuring a compact design with dimensions of 1.30" x 0.76" x 0.80", this switch fits easily into tight spaces with a 1/2" mounting hole. It boasts a dielectric strength of 1500V and a mechanical life cycle rating of 100,000, ensuring long-lasting performance even in challenging environments. Operating effectively in temperatures ranging from 32°F to 185°F, the Morris 70260 is cURus listed for safety and reliability. Upgrade your motor control applications with this dependable switch today.

This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.

• 4 Screw Terminals
• 1-1/2HP 125/250VAC
• cURus Listed
• Mechanical Life Cycles: 100,000
• Momentary = ( )
• 1/2" Mounting Hole
• DPST
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
