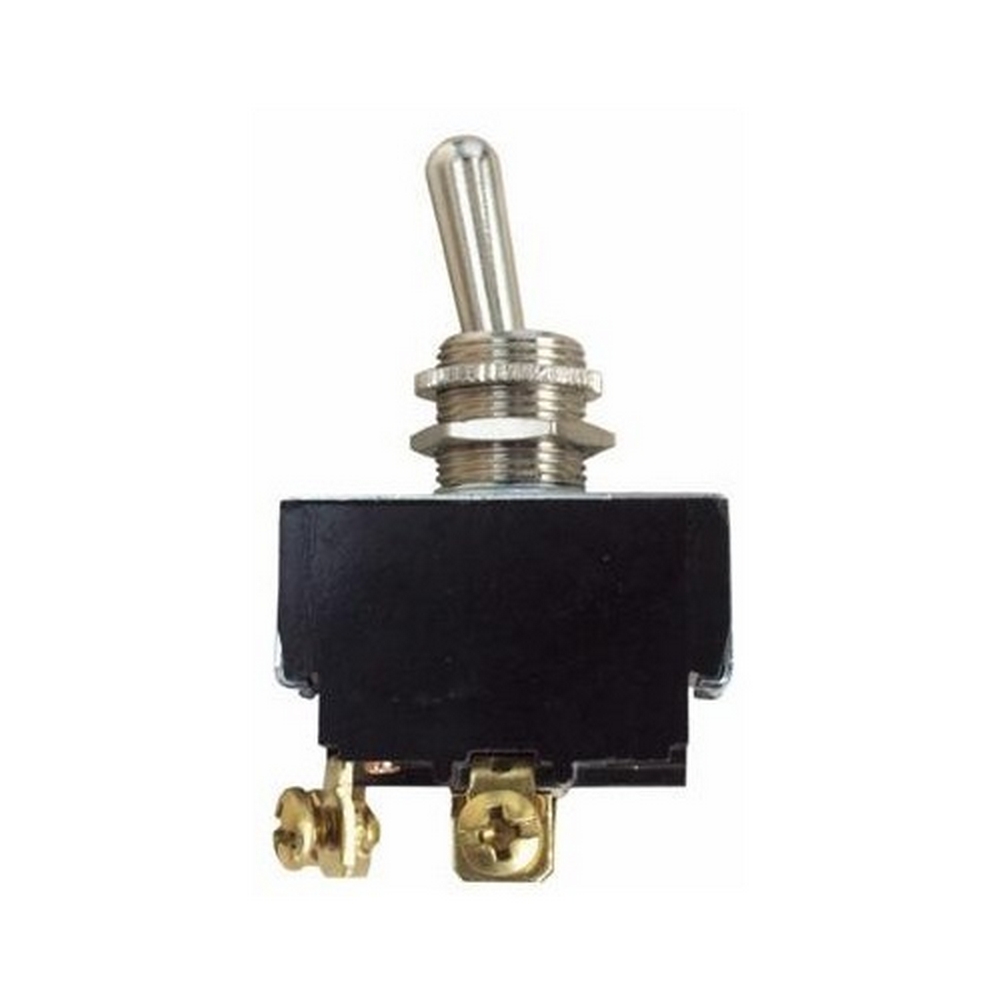

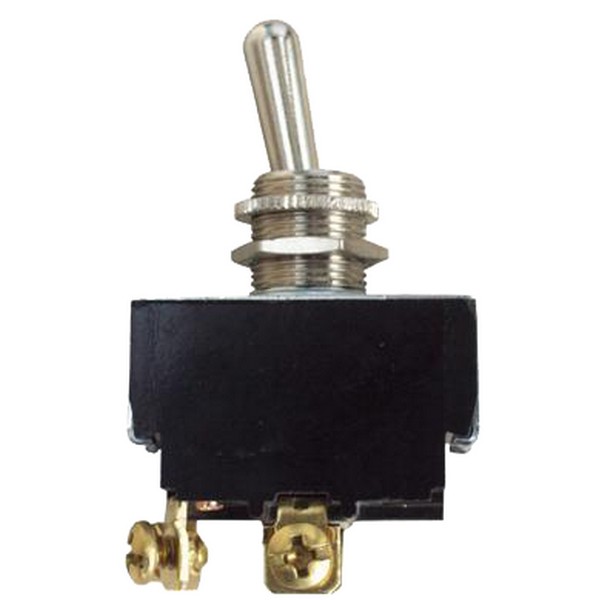

Morris 70262 Heavy Duty Momentary Double Toggle Switch for Motor Control Applications

Morris 70262 is a heavy-duty Momentary Double Toggle Switch designed specifically for motor control tool applications. This DPST switch features a momentary function that allows for precise control, making it ideal for various operational needs. With a robust load rating of 20 AMP at 125VAC and 10 AMP at 277VAC, it ensures reliable performance even in demanding environments. Equipped with four screw terminals, installation is straightforward, while the 1-1/2HP rating at both 125VAC and 250VAC underlines its capability to handle significant motor loads. The switch is built to last, boasting a mechanical life of 100,000 cycles and a dielectric strength of 1500V, ensuring safety and durability over time. Designed for versatility, the Morris 70262 operates effectively within a temperature range of 32°F to 185°F, making it suitable for various indoor and outdoor applications. Its compact dimensions of 1.30" x 0.76" x 0.80" and a 1/2" mounting hole facilitate easy installation in tight spaces. Additionally, the solid brass or nickel-plated bushings enhance the switch's longevity and resistance to corrosion. Certified cURus listed, this toggle switch combines performance, safety, and reliability, making it an excellent choice for professionals and knowledgeable homeowners alike.

This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.

• 4 Screw Terminals
• 1-1/2HP 125/250VAC
• cURus Listed
• Mechanical Life Cycles: 100,000
• Momentary = ( )
• 1/2" Mounting Hole
• DPST
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
