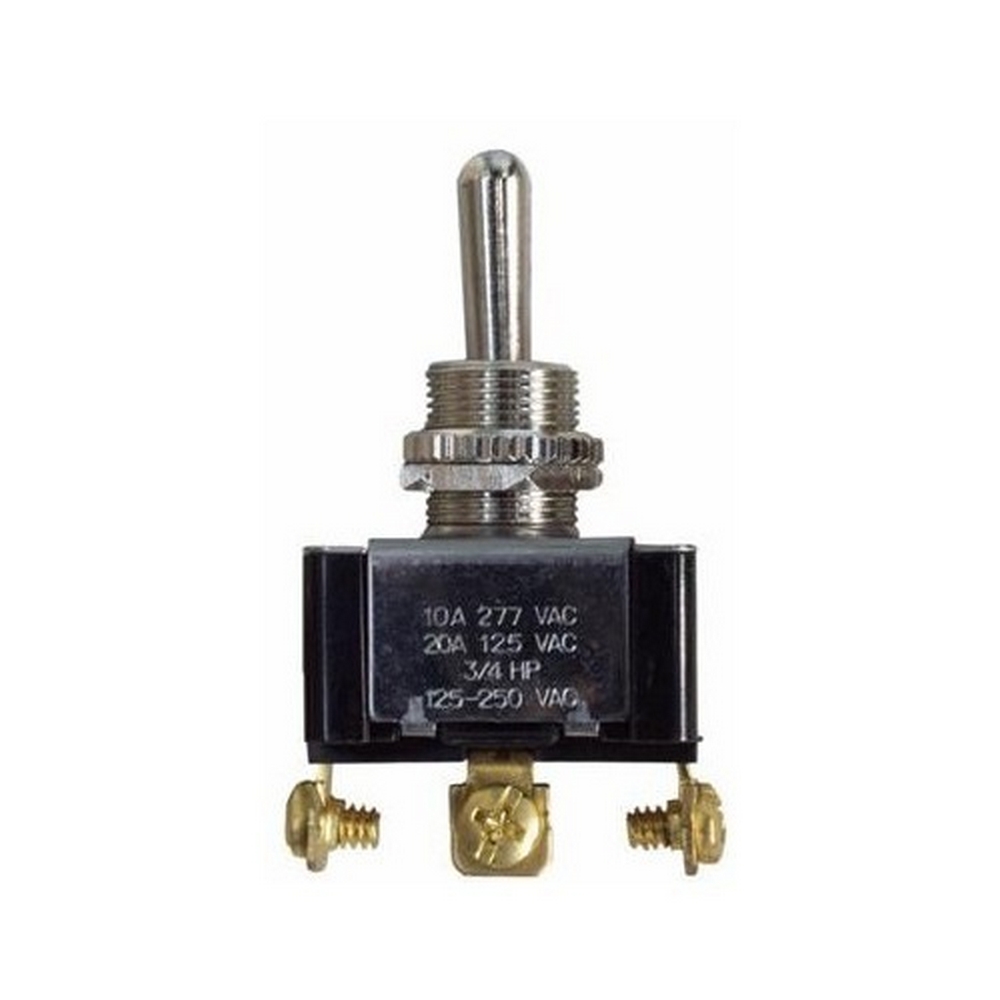

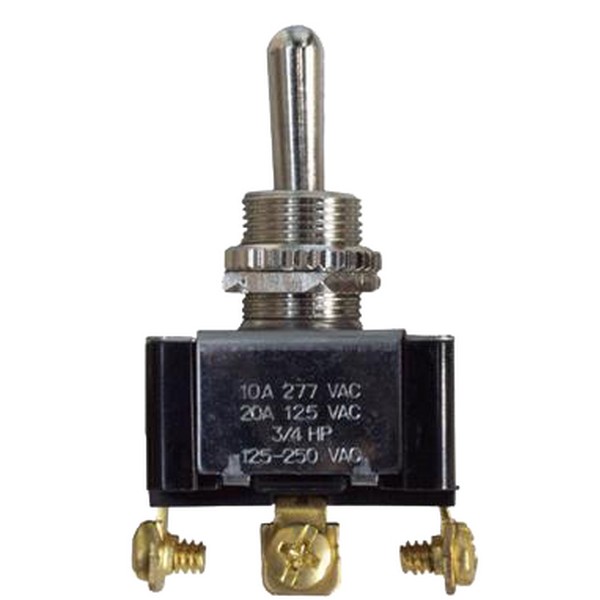

Morris 70270 Heavy Duty Momentary Double Toggle Switch for Motor Control Applications

Morris 70270 is a heavy-duty momentary double toggle switch designed for reliable performance in motor control tool applications. This switch features a single pole double throw (SPDT) configuration, making it ideal for various operational needs. With three screw terminals, installation is straightforward and secure. Built to handle demanding tasks, the Morris 70270 supports a load rating of 20 amps at 125VAC and 10 amps at 277VAC, along with a motor load rating of 3/4HP at both 125VAC and 250VAC. The solid brass or nickel-plated bushings provide durability and resistance to corrosion, ensuring longevity in diverse environments. This switch operates efficiently within a temperature range of 32°F to 185°F and boasts a dielectric strength of 1500V, which enhances safety during operation. The mechanical life cycle of 100,000 ensures it can withstand extensive use without compromising reliability. Measuring 1.13" x 0.63" x 0.70", the compact design fits into a 1/2" mounting hole, making it versatile for various applications. The product is cURus listed, assuring compliance with safety standards. Please note a warning regarding cancer and reproductive harm. Upgrade your motor control setup with the dependable Morris 70270 switch.

This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.

• cURus Listed
• Mechanical Life Cycles: 100,000
• Momentary = ( )
• 3 Screw Terminals
• 3/4HP 125/250VAC
• SPDT
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
