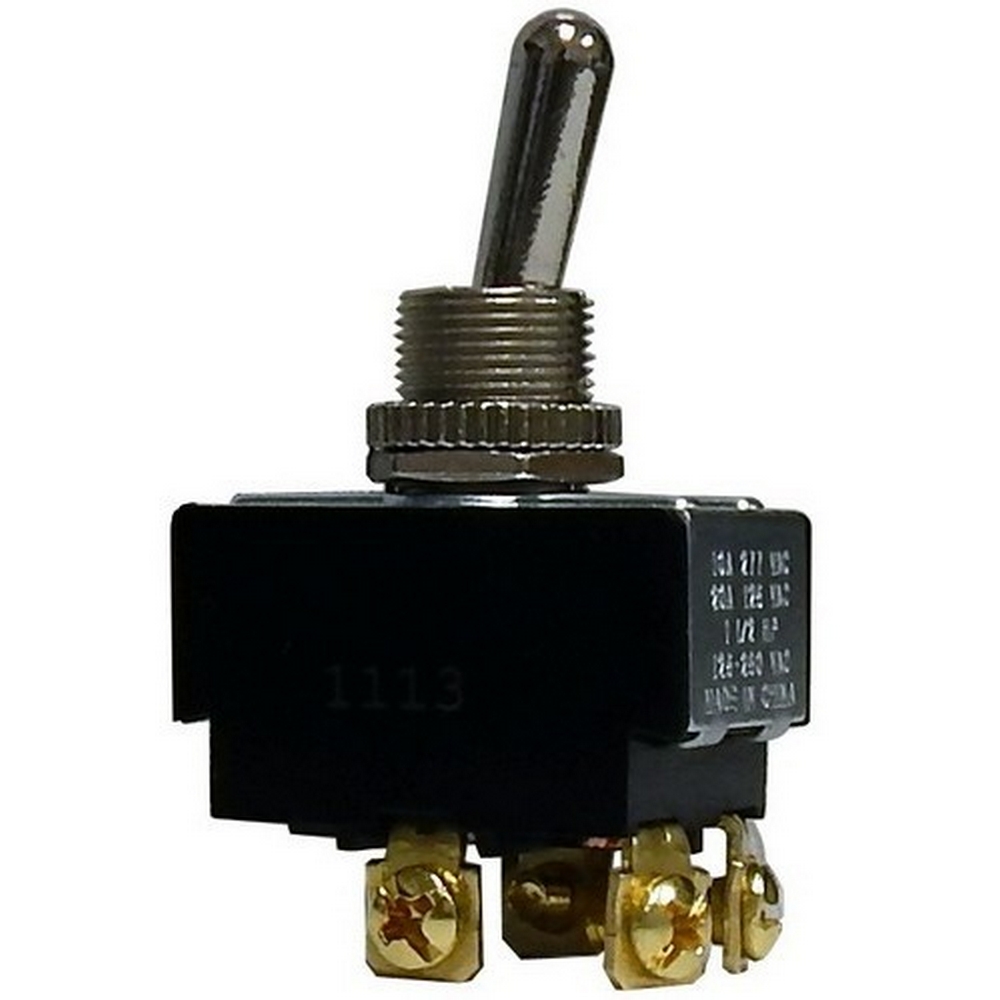

Morris 70290 Heavy Duty Momentary Double Toggle Switch for Motor Control Tools

Morris 70290 is a heavy-duty Momentary Double Toggle Switch designed for reliable use in motor control tool applications. This versatile switch features a Double Pole Double Throw (DPDT) configuration with a momentary (On)-Off-On action, making it an excellent choice for various electrical tasks. With six screw terminals, it ensures a robust and secure connection. Built to handle demanding loads, the Morris 70290 supports a load rating of 20 amps at 125VAC and 10 amps at 277VAC, accommodating motor loads up to 1-1/2 HP at both 125 and 250VAC. Its solid brass or nickel-plated bushings enhance durability, while the 1/2" mounting hole makes installation straightforward. Designed for longevity, this switch boasts a mechanical life cycle of 100,000 operations and a dielectric strength of 1500V, providing peace of mind in performance and safety. Operating efficiently in temperatures ranging from 32°F to 185°F, it is cURus listed, ensuring compliance with industry standards. Compact in size, measuring 1.32" x 0.75" x 0.86", the Morris 70290 is a reliable choice for professionals seeking a dependable switch for their motor control needs, combining quality construction with versatile functionality.

This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.

• 6 Screw Terminals
• cURus Listed
• DPDT, (On)-Off-On
• Mechanical Life Cycles: 100,000
• Momentary = ( )
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• 1-1/2 HP 125/250VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
