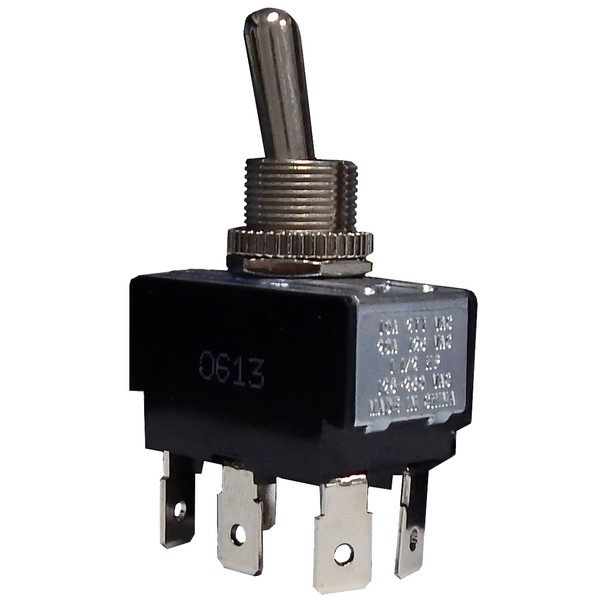

Morris 70299 Heavy Duty Momentary Double Toggle Switch for Motor Control Tools

Morris 70299 is a heavy-duty momentary double toggle switch designed specifically for motor control tool applications. This robust switch features a double-pole, double-throw (DPDT) configuration with a momentary (On)-Off-(On) function, making it ideal for providing precise control over motor operations. With six quick connect spade terminals, installation is straightforward, ensuring a reliable connection for your electrical setups. The switch boasts impressive load ratings of 20 amps at 125VAC and 10 amps at 277VAC, along with a motor load rating of 1-1/2 HP at both 125VAC and 250VAC, allowing it to handle demanding applications with ease. Constructed with solid brass or nickel-plated bushings, the Morris 70299 provides durability and resistance to wear. Its dielectric strength of 1500V ensures safety and reliability, while a mechanical life cycle rating of 100,000 guarantees longevity in high-use environments. Operating efficiently in temperatures ranging from 32°F to 185°F, this switch is versatile and reliable. Measuring 1.30" x 0.76" x 0.86", it fits a standard 1/2" mounting hole, making it a practical choice for various installations. The Morris 70299 is cURus listed, reflecting its compliance with safety standards, and is ready to ship via UPS for your convenience.

This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.

• 6 Quick Connect Spade Terminals
• cURus Listed
• Mechanical Life Cycles: 100,000
• Momentary = ( )
• DPDT, (On)-Off-(On)
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• 1-1/2 HP 125/250VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
