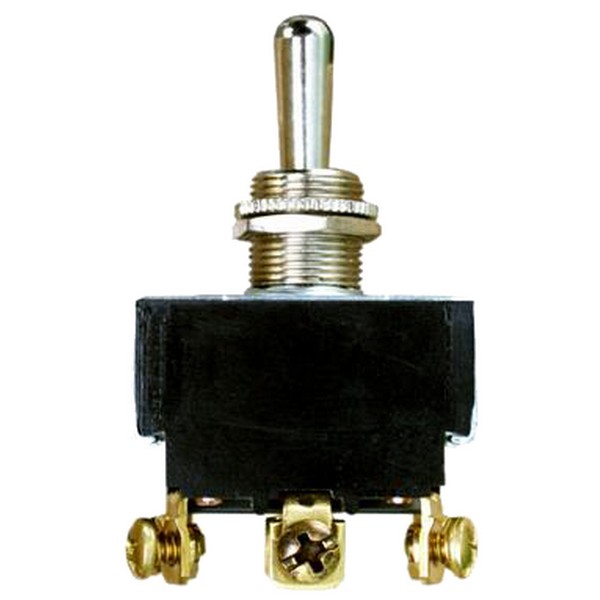

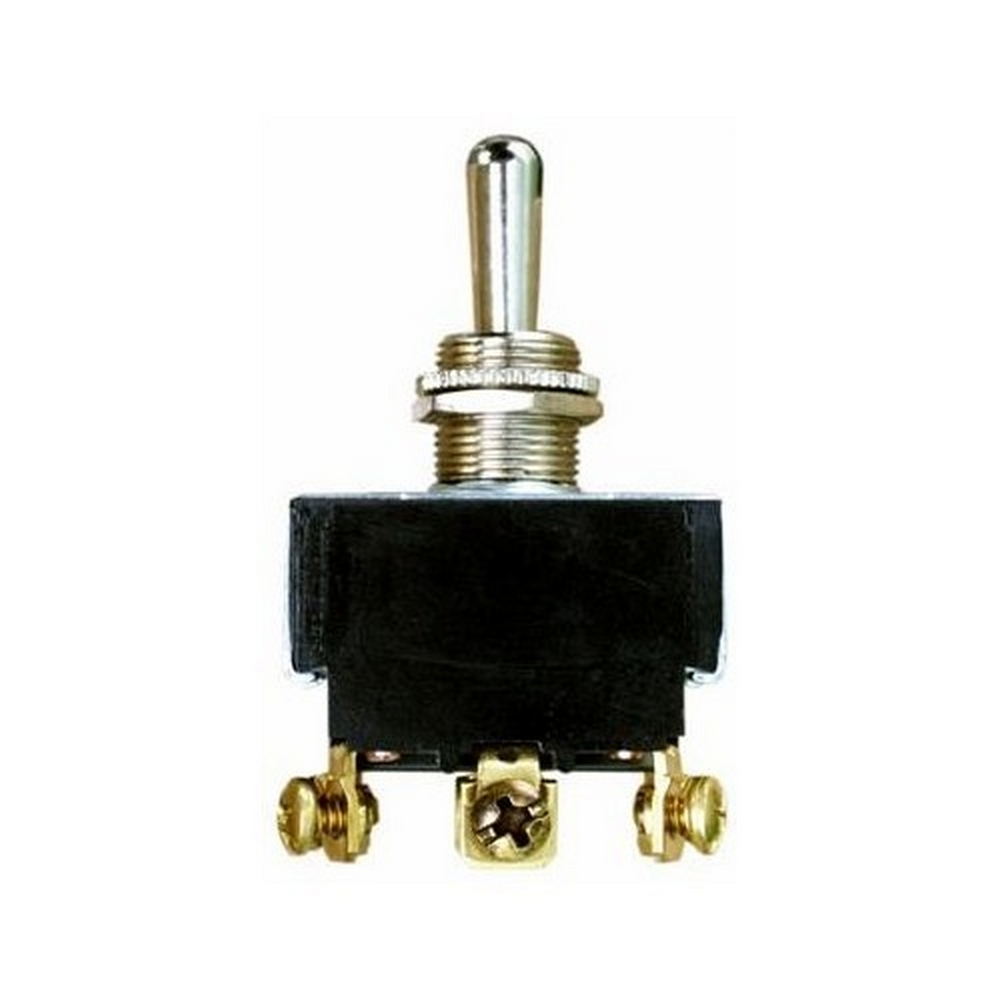

Morris 70300 Heavy Duty Momentary Double Toggle Switch for Motor Control Tools

Morris 70300 is a heavy-duty momentary double toggle switch designed specifically for motor control tool applications. This reliable DPDT switch features an (On)-Off-(On) functionality, making it ideal for various operational needs. With a robust load rating of 20 amps at 125VAC and 10 amps at 277VAC, it ensures dependable performance even under demanding conditions. Constructed with six screw terminals for easy wiring, the Morris 70300 switch is equipped with solid brass or nickel-plated bushings, enhancing its durability and resistance to wear over time. It boasts a dielectric strength of 1500V and a mechanical life cycle of 100,000, ensuring longevity and safety in use. The operating temperature range of 32°F to 185°F makes it suitable for a variety of environments. This switch is compact, measuring 1.30" x 0.76" x 0.86", and requires a 1/2" mounting hole for installation. It is cURus listed, providing peace of mind regarding quality and compliance. Please note the warning regarding cancer and reproductive harm. The Morris 70300 is an excellent choice for professionals seeking a reliable, high-performance switch for their electrical projects.

This heavy duty Momentary Double Toggle Switch is used in Motor Control & Tool Applications.

• 6 Screw Terminals
• cURus Listed
• Mechanical Life Cycles: 100,000
• Momentary = ( )
• DPDT, (On)-Off-(On)
• 1/2" Mounting Hole
• Operating Temperature: 32°F to 185°F
• 20 AMP, 125VAC
• 10 AMP, 277VAC
• 1-1/2 HP 125/250VAC
• Dielectric Strength: 1500V
• Solid Brass or Nickel Plated Bushings
