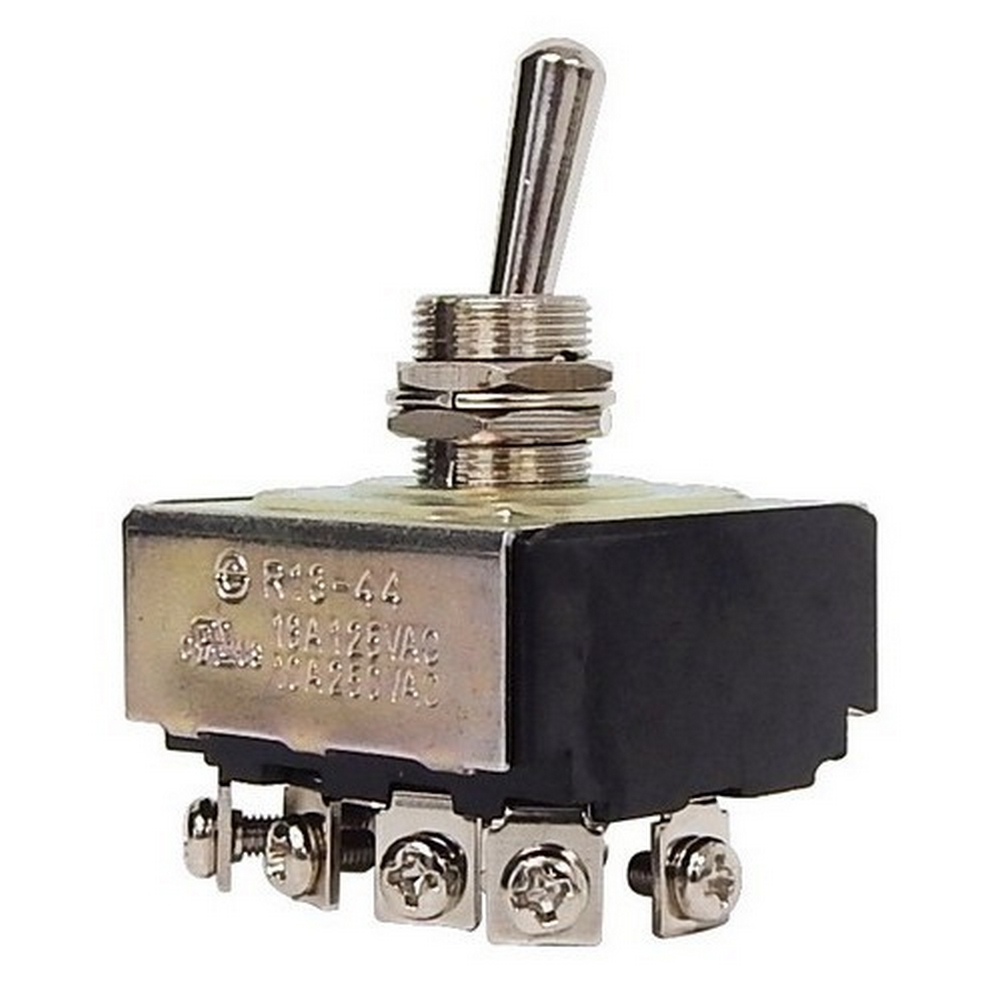

Morris 70304 Brass and Nickel Plated Multi-Pole Toggle Switches are designed for durability and reliability in various applications. With a 4PST configuration, these switches are perfect for power tool and motor control, ensuring that you have the performance you need when it counts. The rugged solid brass or nickel-plated bushings enhance the longevity of the switch, making it an ideal choice for demanding environments. Featuring eight screw terminals, the Morris 70304 is easy to install, providing a secure connection for all your electrical needs. This toggle switch can handle a standard load rating of 16 amps at 125 VAC and 10 amps at 250 VAC, along with a motor load rating of up to 3/4 HP at both 125 and 250 VAC. With a dielectric strength of 1500V and a mechanical life cycle rating of 100,000, this switch is built to endure. Operating efficiently within a temperature range of 32°F to 185°F, the Morris 70304 is cURus listed, ensuring compliance with safety standards. Measuring 1.43" in length, 1.40" in width, and 1.07" in height, this compact switch fits seamlessly into your project. Choose the Morris 70304 for a dependable solution in your electrical installations.
Brass and Nickel plated Multi-Pole Toggle Switches are extra durable.
# Poles: 4
# Throw: 1
Amps @ 125 V: 16
Circuitry: 4PST
Color: Silver/Black
Country of Origin: China
Description: Heavy Duty 4 Pole Toggle Switch 4PST On-Off Screw Terminals
Dielectric Strength In Vac: 1500
Duty Grade: Heavy Duty
Function: On-Off
HP @ 125 V: 3/4
L x W x H: 1.43" x1.40" x1.07"
Material: Solid Brass or Nickel Plated Bushings
Motor Load Rating: 16A 125VAC 10A 250VAC 3/4HP 125-250VAC
No. Of Terminals: 8
Operation Range: 32 to 185
Poles: 4PST
Standard Load Rating: 16A 125VAC 10A 250VAC
Switch Function: Maintained On-Off
Switch Type: Toggle
Terminal Type: 8 Screw
Termination Type: Screws
Type: Heavy Duty Toggle Switch 4PST On-Off Screw Terminals
Ul Listing: cURus
Upc: 601986703048
Warning: Cancer and Reproductive Harm
