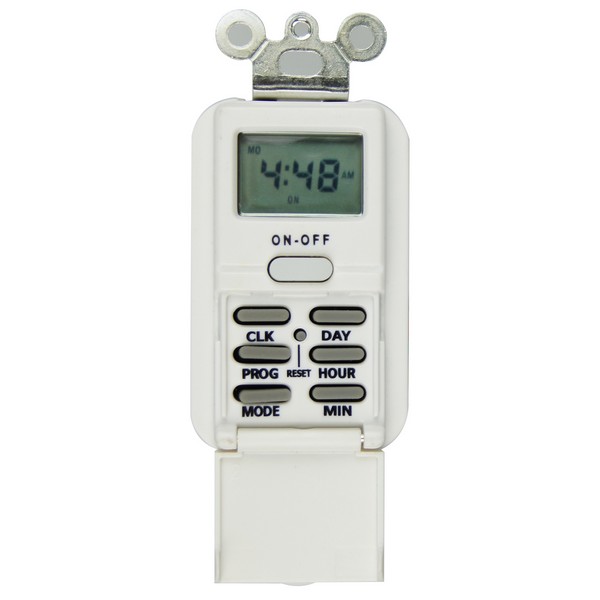

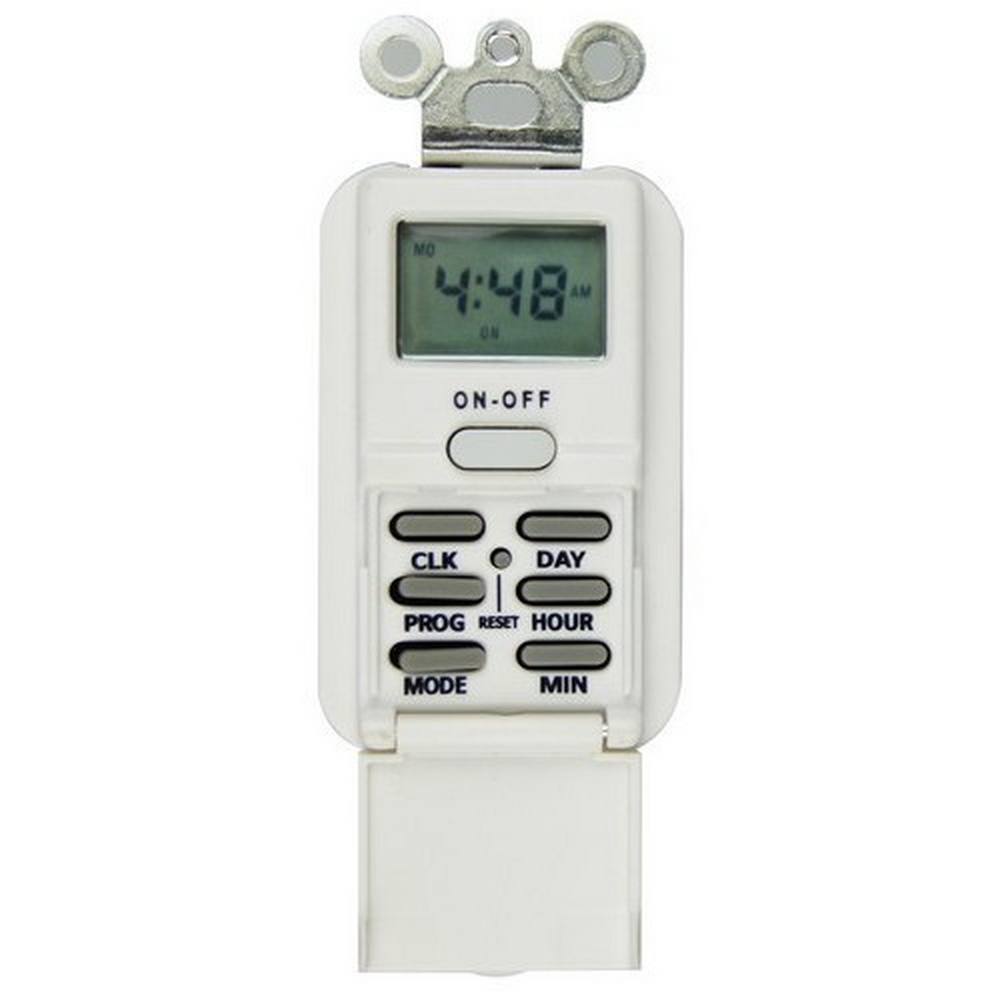

Morris 80511 Digital 7 Day Programmable Timer for indoors and out.

Morris 80511 Digital 7 Day Programmable Timer is designed to enhance your lighting control for both indoor and outdoor applications. This innovative in-wall timer can seamlessly replace your standard wall switch, providing automatic operation for a variety of devices including incandescent and fluorescent lights, fans, pumps, office machines, and more. With the capability to schedule up to seven on/off events per day, this timer offers multiple daily settings options, allowing you to customize operation for all days of the week, individual days, or even just weekdays and weekends. The large digital display ensures easy reading and accuracy to the minute, while a convenient program override button allows for manual control at any time. The Morris 80511 features a NiMH battery backup that saves your time and programmed settings during power outages. It is compatible with CFL and LED lights, requires a neutral, and supports a single pole with a 15A, 120V, 60Hz rating, accommodating loads like motors up to 1/4 HP. Operating efficiently in temperatures from 32°F to 158°F, this timer is UL/cUL listed for safety and reliability. Wallplate included and individually boxed, the Morris 80511 is an ideal solution for those seeking efficient lighting management while maintaining a professional touch.

Digital 7 Day Programmable Timer for indoors and out.

• Timer Program Override by On/Off button
• Compatible with CFL & LED Lights Netural Required
• Provides random setting function in order to adjust the On/Off schedule within a range of +/-30mins
• Large, easy to read digital display, to-the-minute accuracy
• Replaces existing ordinary wall switch - Indoor Use Only
• NIMh Battery Backup save the time and program settings when the unit is unplugged or there is a power outage
• Multiple Daily Settings Options: All days of the week, Individual days of the week, 5 weekdays, 2 weekend days
• Neutral Required
• Resistive Rating: 15A 1875W @ 125V
• Ballast Standard 8A @ 125V
• 7 On/Off Events Per Day
• UL/cUL Listed
• Digital 7 Day In Wall Programmable Timer can replace standard wall switch to provide automatic control of outdoor or indoor lighting (incandescent and fluorescent light), fans, pumps, office machines, and other types of circuits
• Single pole 15A, 120V 60Hz, 1/4 HP
• Operating Temperatures: 32°F to +158°F(0°C to 70°C)
• Individually Boxed
• Motor Load: 1/4 HP
• Wallplate Included
• Tungsten Incandescent Rating: 8A 1000 Watts
