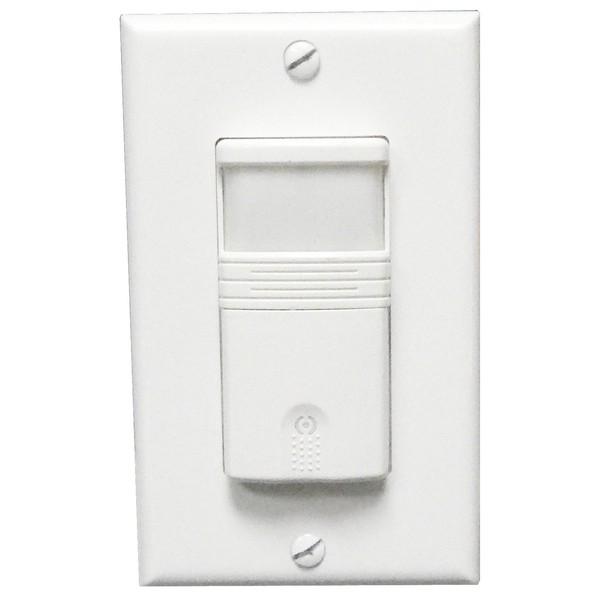

Morris 80521 Wall Mount Occupancy/Vacancy Sensors for Energy Savings

Morris 80521 Wall Mount Occupancy/Vacancy Sensors lead to significant energy savings by automating light control in various environments. Utilizing advanced Passive Infrared (PIR) technology, these sensors detect motion by recognizing the heat emitted from a moving body against the cooler background, making them ideal for offices, conference rooms, storage closets, and other high-traffic areas. This sensor operates seamlessly with a variety of lighting options, including electronic, fluorescent, compact fluorescent, magnetic low voltage, electronic low voltage, and LED fixtures. It features an Auto ON/OFF function, complemented by a Manual ON/Auto OFF setting, providing versatility to suit individual user needs. With a coverage area of 720 square feet and a 180° detection range when mounted at 4 feet, it effectively monitors spaces for occupancy. The adjustable light level sensitivity ensures that lights only activate when necessary, preserving energy, while the time delay feature, adjustable from 5 seconds to 30 minutes, allows for tailored operation. A user-friendly removable cover with mode settings and dip switch adjustments facilitates easy customization. With its sleek white design and included decorative wall plate, the Morris 80521 not only enhances functionality but also complements any interior decor. Conforming to California Title 24 Energy Code and cULus listed, this sensor combines efficiency with compliance for modern building needs.

Wall Mount Occupancy/Vacancy Sensors lead to great energy savings.

• PIR Wall Mount Occupancy/Vacancy Sensors turns lights On/Off automatically when people enter or leave a room
• Vacancy Setting allows for Manual ON/Auto OFF Function
• Material: Polycarbonate
• Will work with Electronic, Fluorescent, Compact Fluorescent, Magnetic Low Voltage, Electronic Low Voltage and LED lighting
• Adjustable Light Level Sensitivity Settings - Ambient light setting automatically adjusts itself and controls when lights turn On/Off, depending on sufficient natural light present
• Neutral Required
• Auto ON/OFF & Manual ON/Auto OFF
• PIR wall switch works best in offices, copy rooms, storage closets, small conference rooms, and other common areas where there are high levels of occupant motion.
• Decorative Wall plate Included
• 60Hz
• cULus Listed
• 30Ft Range When Mounted 4Ft Height
• The Passive Infrared (PIR) Technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space.
• LED Indicator for visibility in darkened rooms
• Conforms to California Title 24 Energy Code
• Time Delay Off setting is adjustable from 5 Seconds to 30 minutes
• Removable Cover with mode settings and dip switch adjustments
• Coverage: 180°, 720 sq ft

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
