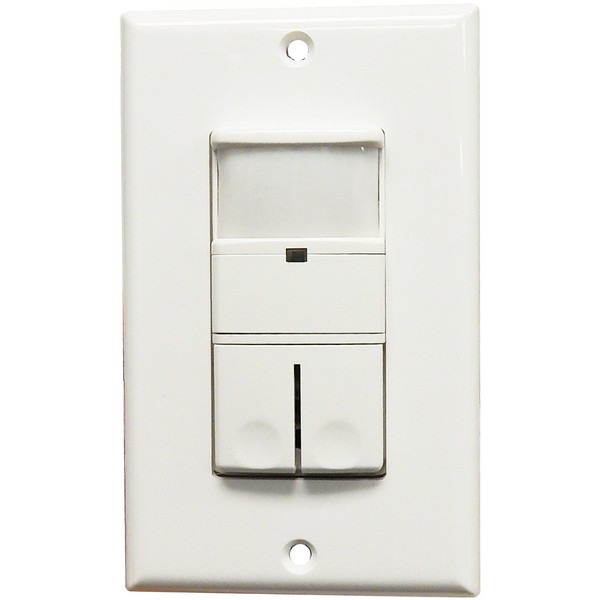

Morris 80548 Wall Mount PIR Occupancy Sensors for Energy Savings

Morris 80548 Wall Mount PIR Occupancy Sensors offer an effective solution for energy savings in various environments. Utilizing advanced Passive Infrared (PIR) technology, these sensors detect the heat emitted from moving bodies, ensuring that lights are activated only when necessary. Ideal for offices, storage closets, and conference rooms, this sensor automatically turns lights on and off, enhancing convenience and reducing energy consumption. With a coverage area of 180 degrees and a range of up to 30 feet when mounted at a height of 4 feet, the Morris 80548 accommodates high-traffic areas efficiently. The adjustable light level sensitivity setting ensures that lights operate based on ambient light conditions, while the time delay feature can be customized between 5 seconds and 30 minutes. This versatile sensor supports various lighting types, including LED, fluorescent, and incandescent, with a maximum rating of 800W at 120V and 1200W at 277V. It features both auto on/off and manual on/auto off settings, providing flexibility to meet different user needs. The decorative wall plate and removable cover with mode settings enhance its aesthetic appeal and usability. Conforming to California Title 24 Energy Code, the Morris 80548 is cULus listed, ensuring compliance with safety standards.

Wall Mount PIR Occupancy Sensors lead to great energy savings.

• PIR Wall Mount Occupancy/Vacancy Sensors turns lights On/Off automatically when people enter or leave a room
• Vacancy Setting allows for Manual ON/Auto OFF Function
• Material: Polycarbonate
• Button 1: Manual On/Auto Off Button 2: Standby & OCC/VAC Selectable
• Will work with Electronic, Fluorescent, Compact Fluorescent, Magnetic Low Voltage, Electronic Low Voltage and LED lighting
• Adjustable Light Level Sensitivity Settings - Ambient light setting automatically adjusts itself and controls when lights turn On/Off, depending on sufficient natural light present
• Neutral Required
• Auto ON/OFF & Manual ON/Auto OFF
• PIR wall switch works best in offices, copy rooms, storage closets, small conference rooms, and other common areas where there are high levels of occupant motion.
• Decorative Wall plate Included
• 60Hz
• cULus Listed
• 30Ft Range When Mounted 4Ft Height
• The Passive Infrared (PIR) Technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space.
• LED Indicator for visibility in darkened rooms
• Conforms to California Title 24 Energy Code
• Time Delay Off setting is adjustable from 5 Seconds to 30 minutes
• Removable Cover with mode settings and dip switch adjustments
• Coverage: 180°, 720 sq ft
