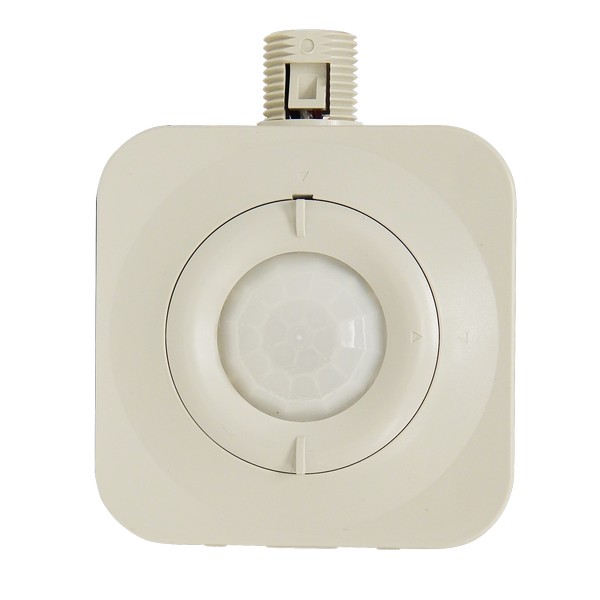

Morris 80556 High/Low Bay PIR Occupancy Sensor for Energy Savings

Morris 80556 High/Low Bay PIR Occupancy Sensor leads to great energy savings, making it an ideal choice for various applications, including offices, storage closets, and small conference rooms. Utilizing advanced Passive Infrared (PIR) technology, this sensor detects occupancy by identifying heat emitted from moving bodies against the cooler background, ensuring that lights are activated only when needed. Designed for use with electronic, fluorescent, compact fluorescent, and magnetic low voltage lighting, this unit operates effectively across a wide voltage range of 120-277V. With a 360° coverage area, it can effectively monitor spaces up to 40 feet in diameter and at heights of 30 feet. The adjustable light level sensitivity settings allow for automatic control based on the ambient natural light present, while the time delay off feature can be set from 15 seconds to 30 minutes, enhancing energy efficiency. Constructed from durable polycarbonate, the Morris 80556 is cULus listed and conforms to California Title 24 Energy Code, ensuring compliance and safety. This sensor is a single-pole device that requires no ground, adding to its convenience for installation. Choose the Morris High/Low Bay PIR Occupancy Sensor and experience significant energy savings while enhancing the functionality of your spaces.

High/Low Bay PIR Occupancy Sensor leads to great energy savings.

• Material: Polycarbonate
• Not Designed for LED Lighting
• Coverage: 360°, 30Ft Height & 40 Ft Dia.
• PIR High/Low Bay Occupancy Sensor works best in offices, copy rooms, storage closets, small conference rooms, and other common areas where there are high levels of occupant motion.
• PIR High/Low Bay Occupancy Sensor turns lights On/Off automatically when people enter or leave a room
• Time Delay Off setting is adjustable from 15 Seconds to 30 minutes
• Will work with Electronic, Fluorescent, Compact Fluorescent, Magnetic Low Voltage, and Electronic Low Voltage Lighting
• Adjustable Light Level Sensitivity Settings - Ambient light setting automatically adjusts itself and controls when lights turn On/Off, depending on sufficient natural light present
• No ground required
• Auto ON/OFF
• 60Hz
• cULus Listed
• Single Pole
• The Passive Infrared (PIR) Technology senses occupancy by detecting the difference between heat emitted from the human body in motion and the background space.
• Conforms to California Title 24 Energy Code
