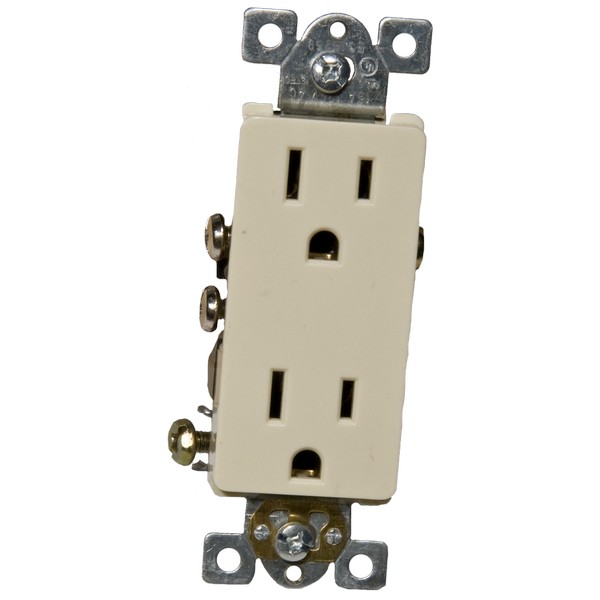

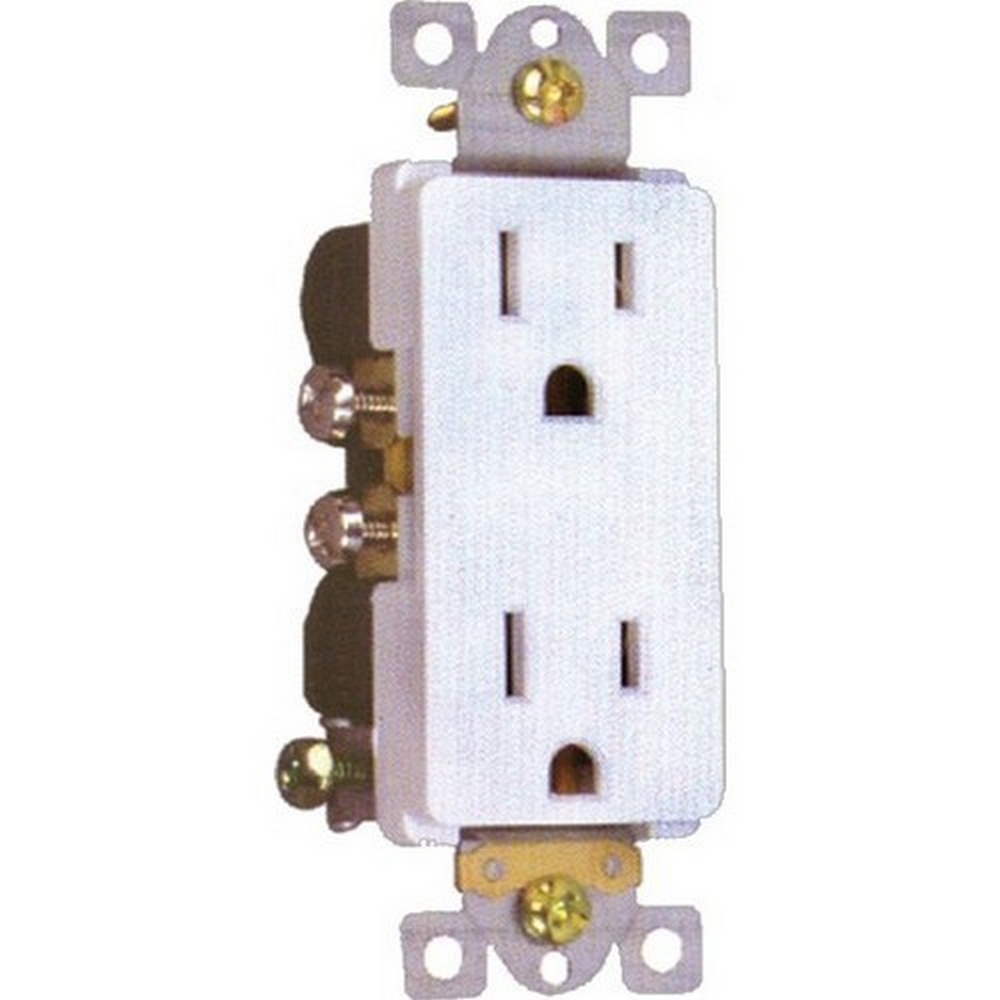

Morris 82015 Recessed Decorative Duplex Receptacle for Enhanced Wiring Space

Morris 82015 Recessed Decorative Duplex Receptacle offers an innovative solution for those seeking more room for wiring, making it an ideal choice for professionals and savvy homeowners alike. Designed with a shallow profile, this receptacle maximizes wiring space while providing back and side wiring options for versatility. It accommodates #12 or #14 stranded or solid copper wire, with a push-in option available for #14 solid wire only. Constructed from durable GE Lexan and featuring a steel mounting strap, the Morris 82015 ensures long-lasting performance. Its easy-access green hex-head ground screw simplifies installation, while the washer-type break-off plaster ears guarantee optimal flush alignment. The receptacle includes large tri-combination head captive screws that facilitate quick wiring, making the installation process a breeze. Rated for 15 amps and operating at 125 volts, this duplex receptacle is UL listed and boasts a UL 94V-2 flame rating for enhanced safety. It operates effectively in a wide temperature range, from -40°F to 167°F. Available in an elegant ivory color, the Morris 82015 is the perfect blend of functionality and aesthetic appeal, making it a smart addition to any electrical setup.

This Recessed Decorative Duplex Receptacle gives you more room for wiring.

• 2 pole, 3 wire
• Washer Type Break Off Plaster Ears for best flush alignment
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Large Tri-Combination Head Captive Screws for quick wiring
• UL listed
• Made of GE Lexan, Steel Mounting Strap
• Easy-access Green Hex-Head Ground Screw
• Shallow design for maximum wiring room
• Back & Side Wired
• Accepts #12 or #14 Stranded or Solid Copper Wire (Push-In #14 Solid Only)
