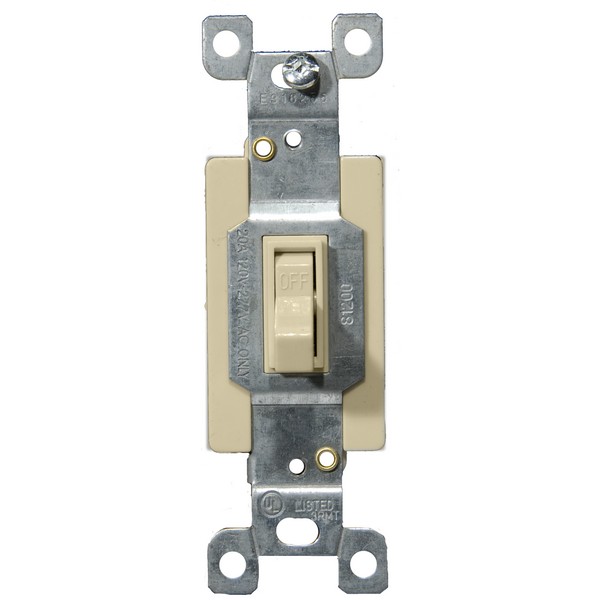

Morris 82020 Commercial Single Toggle Switch

Morris 82020 Single Toggle Switch is expertly designed for commercial use, ensuring reliability in rigorous environments. This commercial-grade switch features a robust single-pole design with a 20A rating, operating seamlessly at 120/277V. Its zinc-plated steel mounting strap provides excellent corrosion resistance, making it a durable choice for any setting. Installation is a breeze with the Morris 82020, thanks to its back and side wiring capabilities, which accept #12 or #14 stranded or solid copper wire (note that push-in connections are limited to #14 solid wire). The large head combination screws facilitate quick wiring, while the easy-access green hex head ground screw simplifies grounding connections. For optimal flush alignment, the switch includes a washer-type break-off plaster ear, and captive mounting screws prevent loss during installation. It operates effectively across a wide temperature range of -40°F to 167°F and boasts a UL 94V-2 flame rating, ensuring safety and performance. With a sleek ivory finish, the Morris 82020 Single Toggle Switch is UL listed and ready to ship via UPS. Invest in quality and performance with this dependable switch that meets the demands of any commercial application.

Single Toggle Switch for commercial use.

• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid only)
• Back and side wiring for easy installation
• Single Pole Toggle Switch 20A, 120/277V
• UL listed
• Captive mounting screws
• Easy Access Green Hex Head Ground Screw
• Copper Wire Only
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Commercial grade is designed to with stand rigorous commercial environments
• Steel mounting strap Zinc-Plated for corrosion resistance
• Washer-type break-off plaster ear for best flush alignment
