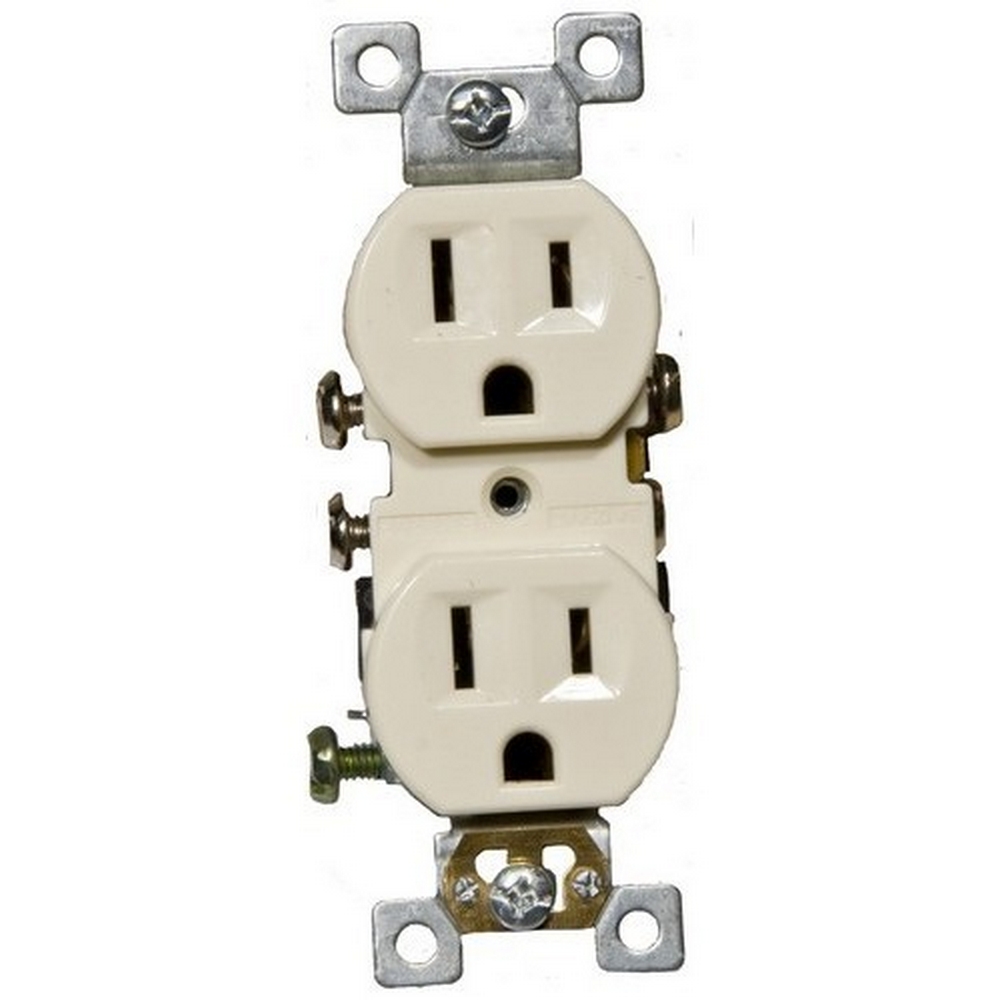

Morris 82123 Standard Duplex Receptacle for Home Use

Morris 82123 Standard Duplex Receptacle is designed for home use, offering reliable power access wherever it's needed. This duplex receptacle features a robust 2 pole, 3 wire configuration, ensuring compatibility with a wide range of electrical applications. Engineered with a shallow design, it maximizes wiring room, making installation a breeze. Constructed from durable GE Lexan and equipped with a sturdy steel mounting strap, this receptacle is built to last. It accepts both #12 and #14 stranded or solid copper wire, with a push-in option available for #14 solid wire only. The easy access green hex head ground screw simplifies the connection process, while the washer-type break-off plaster ear ensures perfect flush alignment. Morris 82123 is equipped with captive tri-combination mounting screws and large head combination screws for quick and efficient wiring. With a UL 94V-2 flame rating and a temperature tolerance ranging from -40°F to 167°F, this receptacle is designed to withstand challenging conditions. Rated for 15 amps and 125 volts, it meets NEMA 5-15R standards and is UL listed for safety and reliability. Available in an attractive almond color, the Morris 82123 is an excellent choice for both professionals and homeowners seeking quality electrical solutions.

Standard Duplex Receptacle for home use.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• Standard Duplex Receptacle
• UL listed
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment

Resources

• Catalog PDF page
