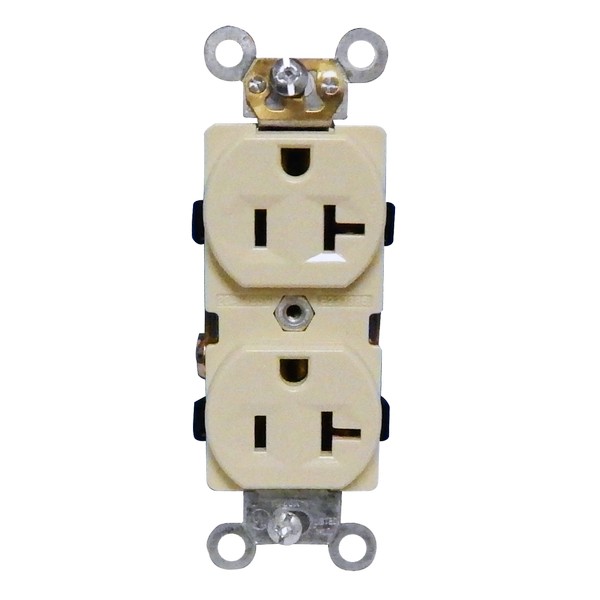

Morris 82130 Industrial Grade Heavy-Duty Duplex Receptacle

Morris 82130 is a heavy-duty Industrial Grade Duplex Receptacle designed to thrive in rigorous environments where downtime is simply not an option. This receptacle is built with durability in mind, featuring a robust construction made from GE Lexan and a steel mounting strap, ensuring it stands up to the demands of industrial use. This 2-pole, 3-wire receptacle offers both back and side wiring capabilities, making it versatile for various installation needs. Its shallow design maximizes wiring room, allowing for easier handling and installation. It accepts #12 or #14 stranded and solid copper wire, with push-in capabilities for #14 solid wire only, ensuring flexibility in electrical configurations. The easy access green hex head ground screw and captive tri-combination mounting screws facilitate quick and efficient wiring. Additionally, the washer-type break-off plaster ear is designed for optimal flush alignment, enhancing the aesthetic appeal of your installations. With a UL 94V-2 flame rating and a temperature rating of -40°F to 167°F, this receptacle is built to perform reliably in challenging conditions. The Morris 82130 receptacle is UL listed, ensuring it meets stringent safety standards. Available in an elegant ivory color, it is a practical choice for any commercial or industrial setting.

A heavy-duty Industrial Grade Duplex Receptacle.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• UL listed
• Industrial Grade Duplex Receptacle is designed to with stand rigorous environments where down time is not an option
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
