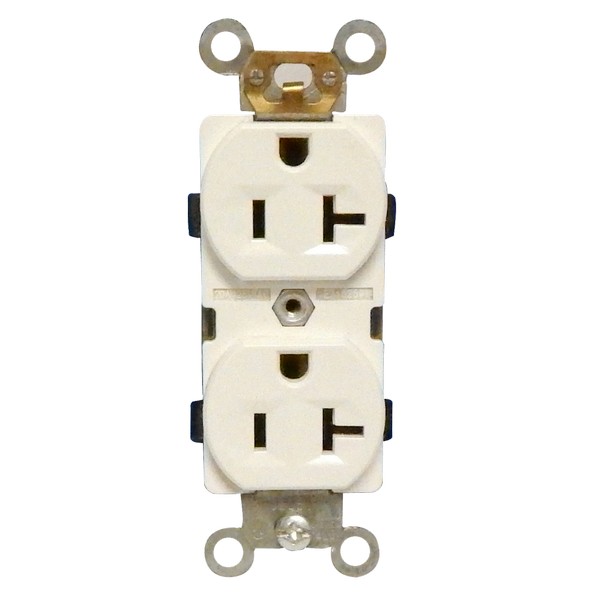

Morris 82131 Industrial Grade Heavy-Duty Duplex Receptacle

Morris 82131 is a heavy-duty Industrial Grade Duplex Receptacle designed for environments where reliability and performance are critical. Built to withstand rigorous conditions, this receptacle features a 2 pole, 3 wire configuration that supports both back and side wiring for versatile installation options. Its shallow design maximizes wiring room, making it easier for professionals to work efficiently. Constructed from durable GE Lexan and equipped with a steel mounting strap, the Morris 82131 is engineered for strength and longevity. It accepts #12 or #14 stranded or solid copper wire, with push-in capability for #14 solid wire only. The easy-access green hex head ground screw further enhances the installation process, while the washer-type break-off plaster ear ensures optimal flush alignment. With captive tri-combination mounting screws and large head combination screws, quick wiring is a breeze. This receptacle boasts a UL 94V-2 flame rating and operates effectively within a temperature range of -40°F to 167°F, ensuring it meets the demands of various industrial applications. UL listed for safety, the Morris 82131 is the dependable choice for those seeking a robust and efficient electrical solution. Available in white and compliant with NEMA 5-20R standards, this receptacle is ready to ship via UPS.

A heavy-duty Industrial Grade Duplex Receptacle.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• UL listed
• Industrial Grade Duplex Receptacle is designed to with stand rigorous environments where down time is not an option
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment
