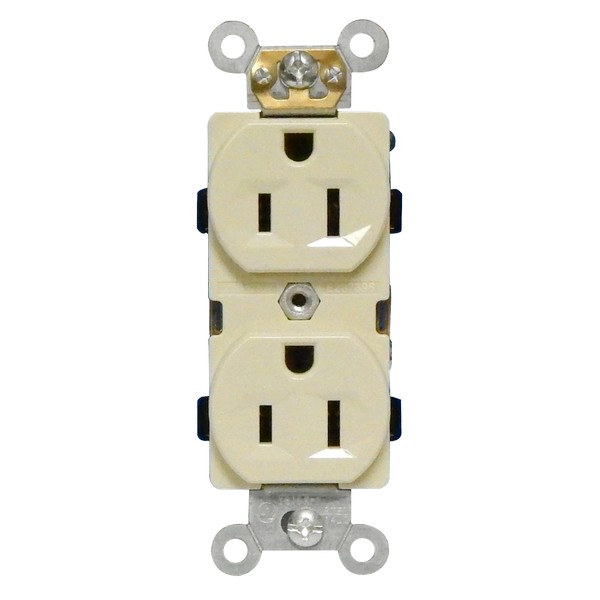

Morris 82195 Heavy-Duty Industrial Grade Duplex Receptacle

Morris 82195 is a heavy-duty Industrial Grade Duplex Receptacle designed to thrive in rigorous environments where downtime is simply not an option. This receptacle features a robust 2 pole, 3 wire configuration, ensuring reliable power distribution in demanding applications. Its back and side wire capability allows for versatile installation, while the shallow design maximizes wiring room, making it easier for professionals to work efficiently. Constructed from durable GE Lexan and equipped with a steel mounting strap, the Morris 82195 is built to last. It accepts #12 or #14 stranded or solid copper wire, with a push-in option for #14 solid wire only, providing flexibility for various wiring needs. The easy access green hex head ground screw simplifies installation, and the washer-type break-off plaster ear ensures optimal flush alignment. With captive tri-combination mounting screws and large head combination screws, wiring is quick and hassle-free. This receptacle boasts a UL 94V-2 flame rating and operates effectively in temperatures ranging from -40°F to 167°F. UL listed for safety and reliability, it is available in an elegant ivory color and conforms to NEMA #5-15R specifications. Equip your project with the Morris 82195 for peace of mind and long-lasting performance.

A heavy-duty Industrial Grade Duplex Receptacle.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• UL listed
• Industrial Grade Duplex Receptacle is designed to with stand rigorous environments where down time is not an option
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
