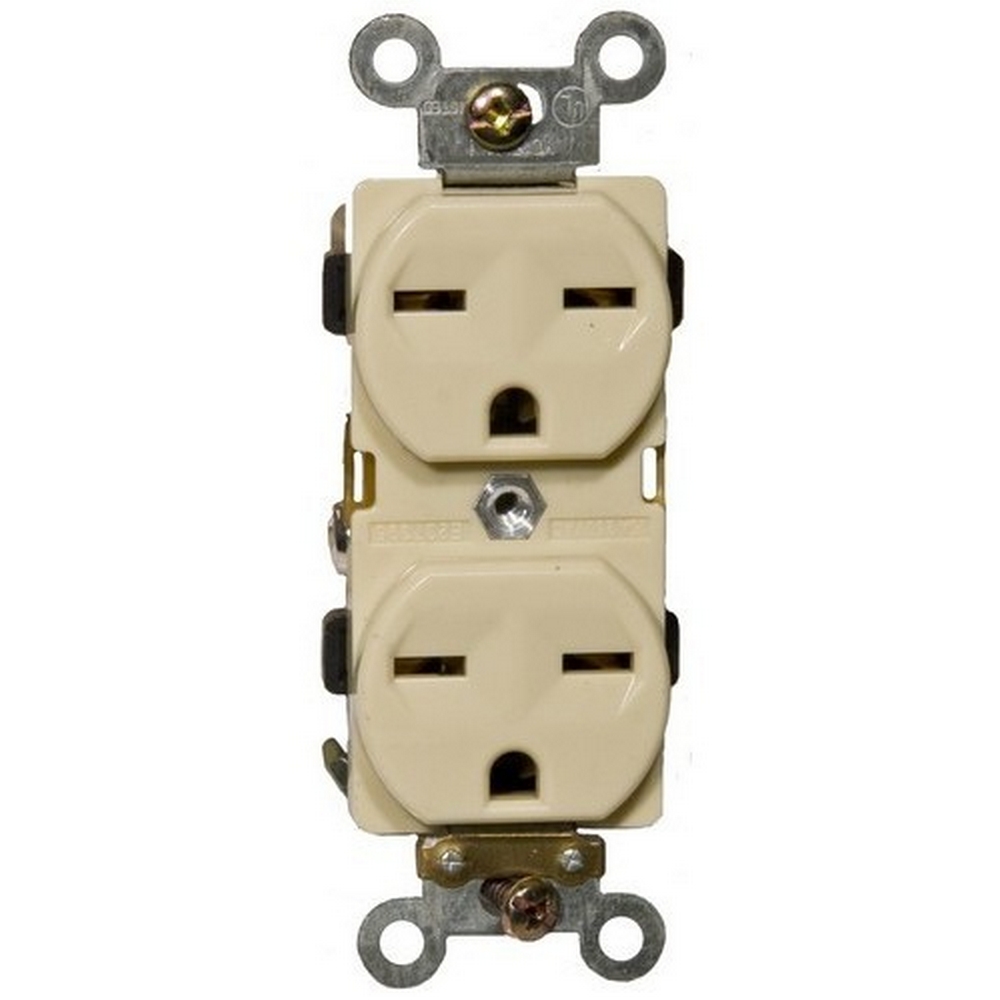

Morris 82200 Industrial Grade Heavy-Duty Duplex Receptacle

Morris 82200 is a heavy-duty Industrial Grade Duplex Receptacle designed to withstand rigorous environments where downtime is simply not an option. This durable receptacle features a 2 pole, 3 wire configuration, ensuring reliable performance in challenging conditions. Its shallow design provides maximum wiring room, making installation straightforward and efficient. Constructed from GE Lexan and outfitted with a steel mounting strap, the Morris 82200 is built for longevity and resilience. This receptacle accepts #12 or #14 stranded or solid copper wire, with push-in capabilities for #14 solid wire only. An easy access green hex head ground screw enhances user convenience, while the washer-type break-off plaster ear ensures the best flush alignment. The captive tri-combination mounting screws, coupled with large head combination screws, facilitate quick and hassle-free wiring. With a UL 94V-2 flame rating and a temperature range of -40°F to 167°F, this receptacle is engineered to perform safely under extreme conditions. Available in an elegant ivory color and rated for 15 Amps at 250 Volts (NEMA #6-15R), the Morris 82200 is UL listed, ensuring compliance with stringent safety standards. Invest in reliability and performance with this essential electrical component.

A heavy-duty Industrial Grade Duplex Receptacle.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• UL listed
• Industrial Grade Duplex Receptacle is designed to with stand rigorous environments where down time is not an option
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment
