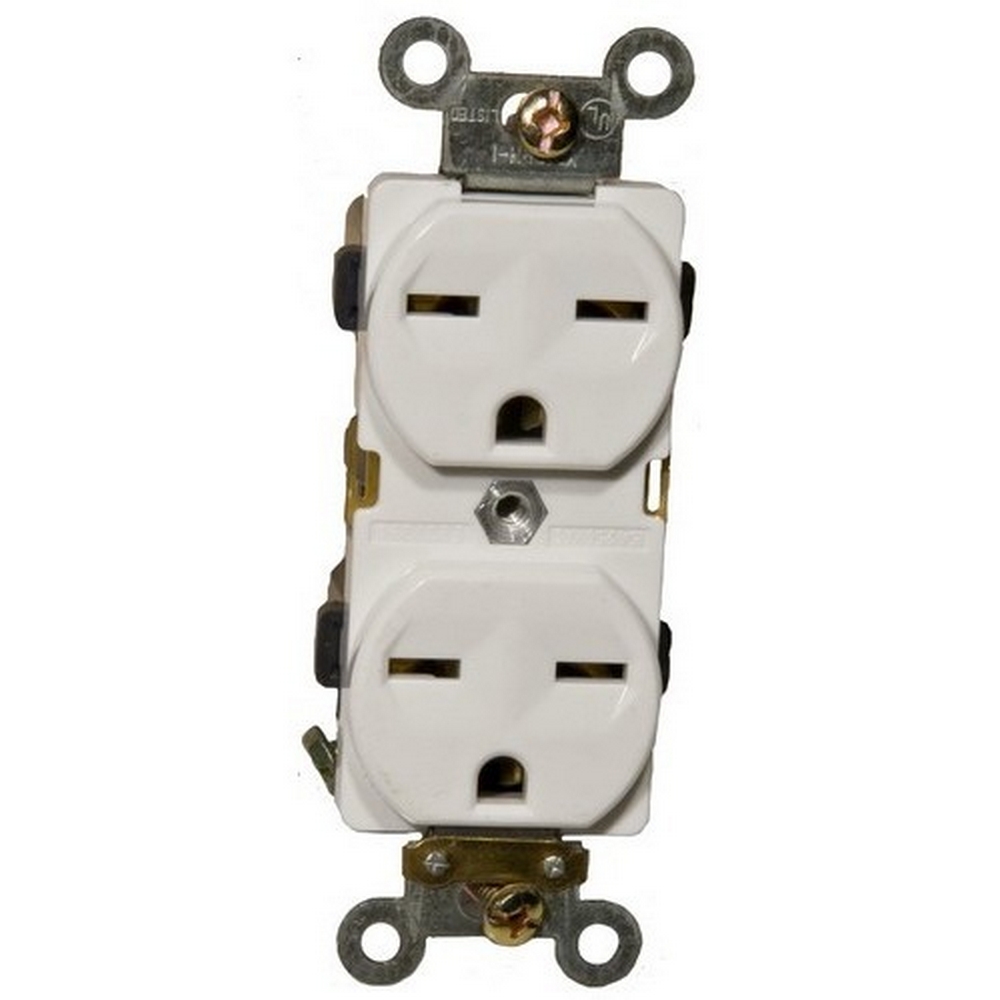

Morris 82201 Heavy-Duty Industrial Grade Duplex Receptacle

Morris 82201 is a heavy-duty Industrial Grade Duplex Receptacle designed to thrive in demanding environments where reliability is critical. Constructed from durable GE Lexan and featuring a robust steel mounting strap, this receptacle ensures longevity and resilience in any setting. The two-pole, three-wire configuration facilitates versatile use, making it suitable for various applications. Designed with back and side wiring options, the receptacle offers a shallow design that maximizes wiring room, simplifying installation. It accepts #12 or #14 stranded or solid copper wire, with a push-in option specifically for #14 solid wire. The easy access green hex head ground screw enhances usability, ensuring secure connections. With a washer-type break-off plaster ear, you can achieve optimal flush alignment, while captive tri-combination mounting screws and large head combination screws provide quick and efficient wiring. The Morris 82201 boasts a UL 94V-2 flame rating and is rated for temperatures ranging from -40°F to 167°F, making it a safe choice for both commercial and industrial settings. This receptacle is UL listed and comes in a clean white color, adhering to NEMA 6-15R specifications for 15 Amp and 250 Volt applications. Equip your workspace with the reliability and performance of Morris 82201.

A heavy-duty Industrial Grade Duplex Receptacle.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• UL listed
• Industrial Grade Duplex Receptacle is designed to with stand rigorous environments where down time is not an option
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
