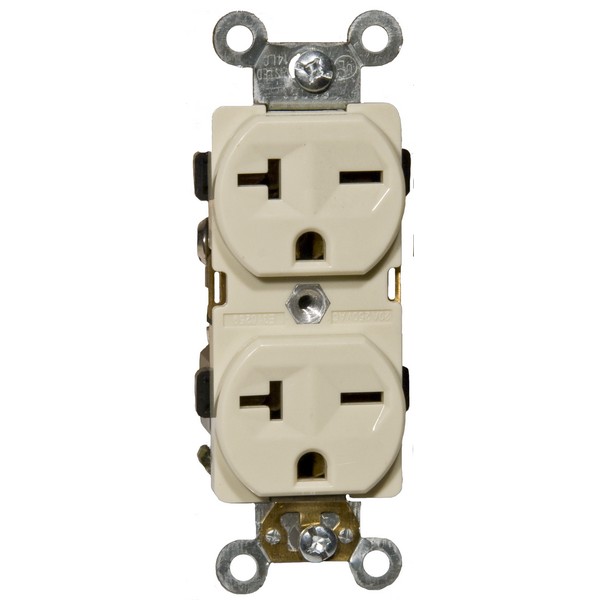

Morris 82205 Heavy-Duty Industrial Grade Duplex Receptacle

Morris 82205 is a heavy-duty Industrial Grade Duplex Receptacle designed to excel in rigorous environments where downtime is simply not an option. This receptacle features a robust 2 pole, 3 wire configuration, ensuring reliable performance in demanding applications. The back and side wire capabilities allow for versatile installation options, while its shallow design provides maximum wiring room, accommodating various installation scenarios. Constructed from GE Lexan and equipped with a steel mounting strap, this receptacle guarantees durability and resilience. It accepts #12 or #14 stranded or solid copper wire, with push-in connections available for #14 solid wire, streamlining the installation process. The easy access green hex head ground screw and washer-type break-off plaster ear ensure optimal flush alignment, enhancing both functionality and aesthetics. With captive tri-combination mounting screws and large head combination screws, wiring is quick and hassle-free. The Morris 82205 is rated for temperatures from -40°F to 167°F and holds a UL 94V-2 flame rating, ensuring safety and compliance in various settings. UL listed and available in an elegant ivory color, this NEMA 6-20R receptacle is an excellent choice for any industrial or commercial application.

A heavy-duty Industrial Grade Duplex Receptacle.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• UL listed
• Industrial Grade Duplex Receptacle is designed to with stand rigorous environments where down time is not an option
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
