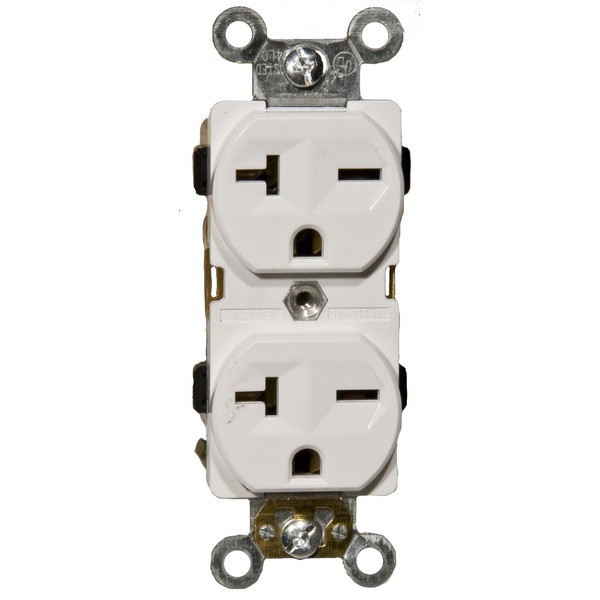

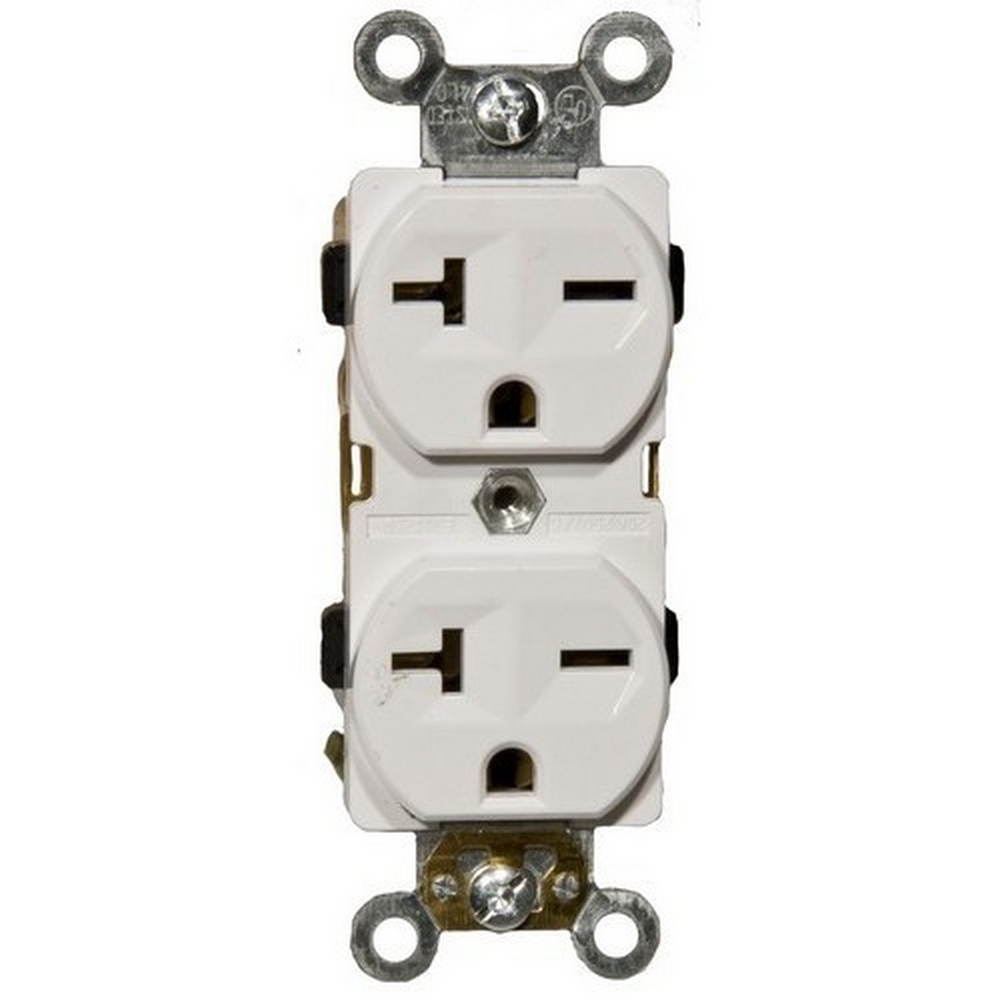

Morris 82206 Heavy-Duty Industrial Grade Duplex Receptacle

Morris 82206 is a heavy-duty Industrial Grade Duplex Receptacle engineered to excel in demanding environments where downtime is simply not an option. This robust receptacle features a 2 pole, 3 wire design and offers both back and side wiring capabilities, ensuring flexibility during installation. Its shallow design maximizes wiring room, making every connection straightforward and efficient. Constructed from durable GE Lexan with a steel mounting strap, this receptacle is built to withstand the rigors of everyday use. It accepts #12 or #14 stranded or solid copper wire, with a push-in option for #14 solid wire only. An easy access green hex head ground screw simplifies grounding connections, while the washer-type break-off plaster ear ensures optimal flush alignment. The Morris 82206 comes equipped with captive tri-combination mounting screws and large head combination screws, allowing for quick and hassle-free wiring. With a UL 94V-2 flame rating and a temperature range of -40°F to 167°F, this receptacle is designed for safety and reliability. It is UL listed and meets the NEMA #6-20R standards, making it a top choice for professionals seeking dependable electrical solutions.

A heavy-duty Industrial Grade Duplex Receptacle.

• 2 pole, 3 wire
• Accepts #12 or #14 Stranded or Solid Copper wire (Push-In #14 Solid Only)
• UL listed
• Industrial Grade Duplex Receptacle is designed to with stand rigorous environments where down time is not an option
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Back & Side wire
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
