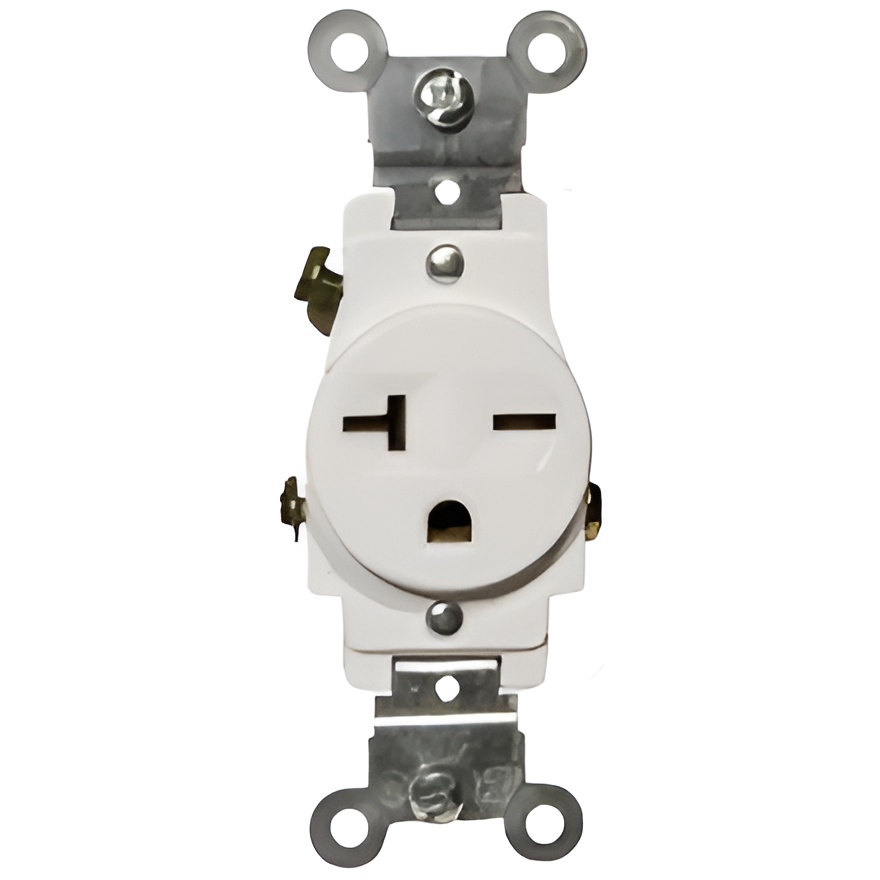

Morris 82246 Commercial Grade Single Receptacle - Value for Money

Morris 82246 Commercial Grade Single Receptacle offers exceptional value for any electrical installation. Engineered to withstand the demands of rigorous environments, this receptacle ensures reliable performance where downtime is not an option. Designed as a 2-pole, 3-wire unit, it features side wiring for easy access and a shallow design that maximizes wiring room, making installation efficient and straightforward. Crafted from durable GE Lexan with a steel mounting strap, this receptacle is built to last. It accommodates #12 or #14 stranded or solid copper wire and includes an easy-access green hex head ground screw for hassle-free grounding. The washer-type break-off plaster ear guarantees optimal flush alignment, while captive tri-combination mounting screws with large heads facilitate quick wiring. With a UL 94V-2 flame rating and a temperature range of -40°F to 167°F, the Morris 82246 is designed to meet demanding safety standards. This white receptacle is UL listed and comes with a NEMA #6-20R configuration, supporting 20 Amp, 250 Volt applications. Elevate your electrical projects with the reliability and efficiency of the Morris 82246 Commercial Grade Single Receptacle.

This Commerical Grade Single Receptacle gives value for money.

• 2 pole, 3 wire
• Side wire
• Accepts #12 or #14 Stranded or Solid Copper wire
• UL listed
• Shallow design for maximum wiring room
• Easy Access Green Hex Head Ground Screw
• Commerical Grade Single Receptacle is designed to with stand rigorous environments where down time is not an option
• Large head combination screws for quick wiring
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Made of GE Lexan, Steel Mounting Strap
• Captive Tri-Combination mounting screws
• Washer-type break-off plaster ear for best flush alignment
