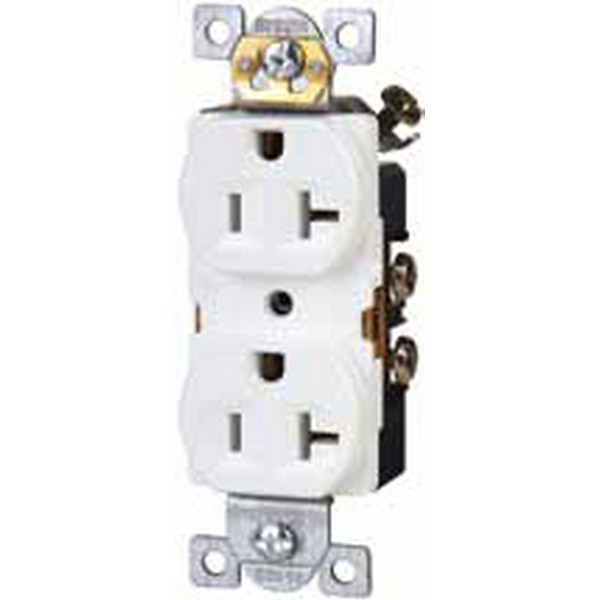

Morris 82441 Tamper Resistant Duplex Receptacle

Morris 82441 Duplex Receptacle is designed with tamper resistance in mind, making it an ideal choice for both residential and commercial applications. This receptacle features a built-in protective shutter mechanism that effectively prevents the insertion of foreign objects, enhancing safety in any environment. Clearly marked with a visible "TR" on its face, this unit meets stringent safety standards. Constructed from durable GE Lexan with a steel mounting strap, the Morris 82441 ensures longevity and reliability. Its shallow design provides maximum wiring room, making installation straightforward. The receptacle accommodates 2 pole, 3 wire configurations and accepts #12 or #14 stranded or solid copper wire, with push-in capabilities for #14 solid wire only. Quick wiring is facilitated by large tri-combination head captive screws, while the easy-access green hex-head ground screw simplifies grounding tasks. With a UL 94V-2 flame rating and UL listing, this receptacle guarantees safety and compliance. The washer-type break-off plaster ears ensure the best flush alignment for a clean finish. Rated for 20 amps and 125 volts, the Morris 82441 Duplex Receptacle is a dependable choice for any project needing a secure and efficient power outlet.

This Duplex Receptacle is Tamper Resistant.

• 2 pole, 3 wire
• Washer Type Break Off Plaster Ears for best flush alignment
• UL 94V-2 Flame Rating
• Clear Visible "TR" marking on Face
• Large Tri-Combination Head Captive Screws for quick wiring
• UL listed
• Built-in Protective Shutter Mechanism Designed to Prevent Insertion of Foreign Objects
• Made of GE Lexan, Steel Mounting Strap
• Easy-access Green Hex-Head Ground Screw
• Shallow design for maximum wiring room
• Back & Side Wired
• Accepts #12 or #14 Stranded or Solid Copper Wire (Push-In #14 Solid Only)
