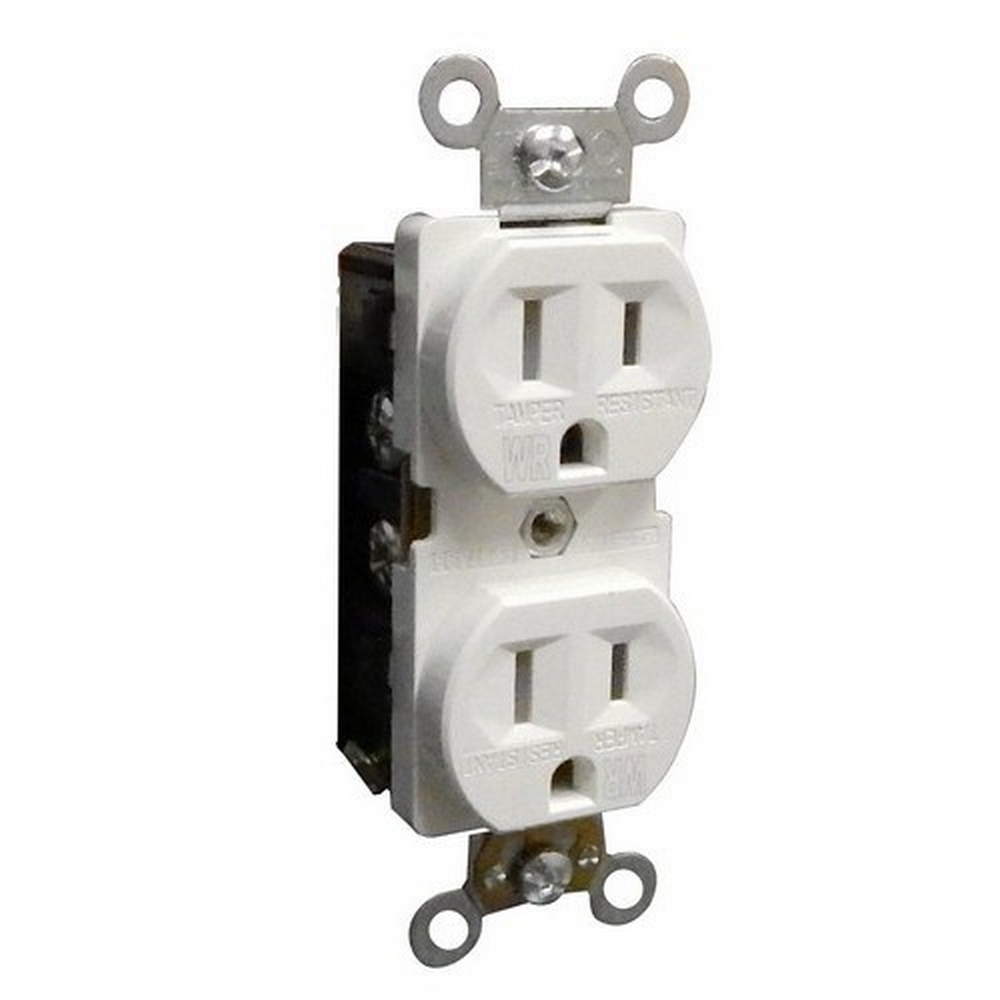

Morris 82501 Tamper-Resistant Weatherproof Duplex Receptacle

Morris 82501 Duplex Receptacle is a tamper weather-resistant solution designed to ensure electrical safety in wet and damp locations. Marked with a clear "WR" designation on its face, this receptacle complies with the 2011 NEC Article 406.9, providing visual identification that guarantees protection against rain, snow, and humidity when installed with an approved weather protective cover. Engineered with a built-in protective shutter mechanism, the Morris 82501 prevents the insertion of foreign objects, enhancing safety for users. This 15-amp, 125-volt receptacle features a shallow design, allowing for maximum wiring room, and accommodates #12 or #14 stranded or solid copper wire, with push-in connection for #14 solid wire only. The easy-access green hex-head ground screw and large tri-combination head captive screws facilitate quick installation. Constructed from durable GE Lexan and equipped with a steel mounting strap, it boasts a UL 94V-2 flame rating and operates within a temperature range of -40°F to 167°F. With washer-type break-off plaster ears for optimal flush alignment, the Morris 82501 is an essential choice for building professionals and knowledgeable homeowners seeking reliable and efficient electrical solutions.

This Duplex Receptacle is Tamper & Weather Resistant.

• 2 pole, 3 wire
• Large Tri-Combination Head Captive Screws for quick wiring
• UL listed
• Clear Visible "WR" marking on Face
• Easy-access Green Hex-Head Ground Screw
• Shallow design for maximum wiring room
• Complies with 2011 NEC Article 406.9 that states that all receptacles installed in wet & damp locations must be weather resistant. "WR" designations provide visual identification. Weather Resistant Receptacles offer protection from rain, snow, ice, moisture, & humidity when properly installed in an approved weather protective or while-in-use cover
• Washer Type Break Off Plaster Ears for best flush alignment
• Temperature Rating: -40°F to 167°F
• UL 94V-2 Flame Rating
• Built-in Protective Shutter Mechanism Designed to Prevent Insertion of Foreign Objects
• Made of GE Lexan, Steel Mounting Strap
• Back & Side Wired
• Accepts #12 or #14 Stranded or Solid Copper Wire (Push-In #14 Solid Only)
