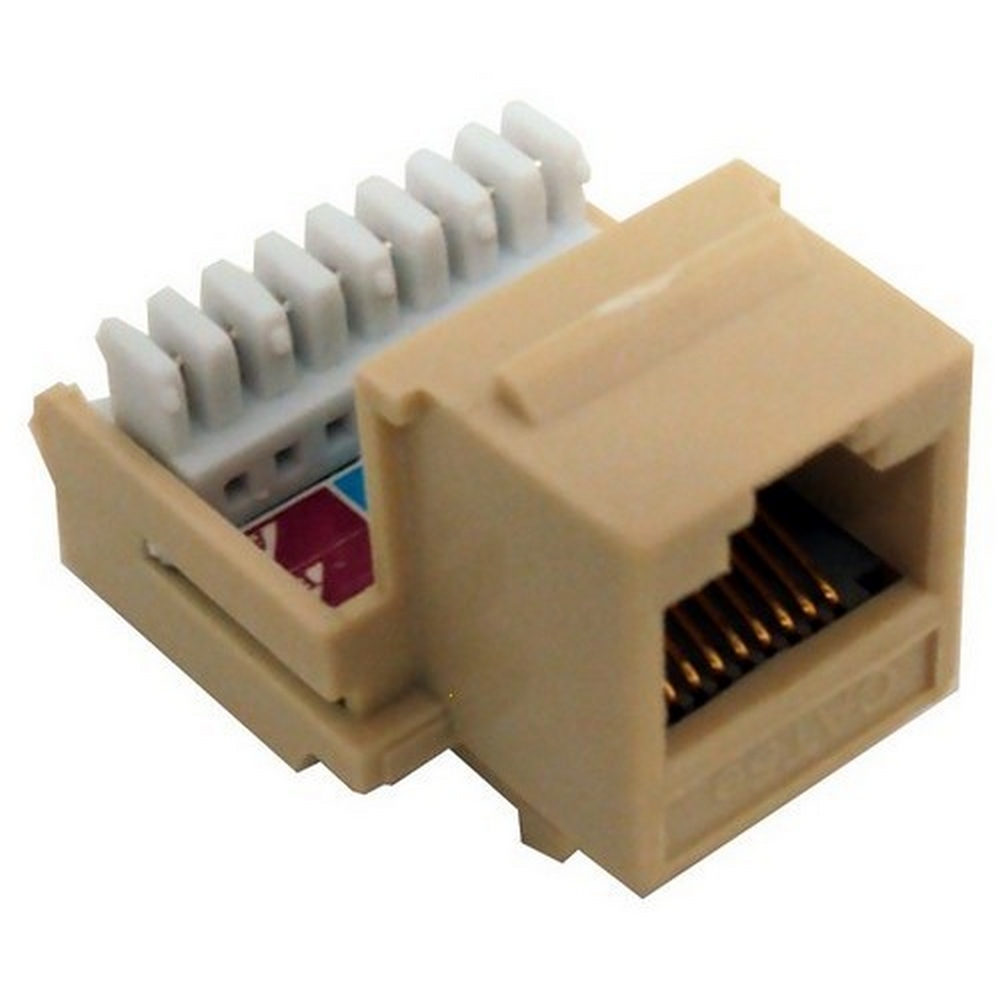

Morris 88015 Color-Coded Cat5E Keystone Jack for Data Communications

Morris 88015 is a color-coded Cat5E Keystone Jack designed for voice and data communication applications. This robust component ensures reliable connectivity, supporting a bandwidth of up to 100 MHz and data transmission rates of 1000 Mbps (1 Gbps). Ideal for both residential and commercial installations, it features conductor termination at the rear jack, facilitating straightforward setup. Complying with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, and NEC Article 800 standards, the Morris 88015 guarantees compatibility with various network setups. It accommodates both 22-26 AWG solid and stranded wire, and conforms to TIA/EIA 568A and 568B wiring color codes, making it versatile for different wiring configurations. The 110 punch down and Krone type termination methods enhance installation efficiency, while the contacts boast a 50µ gold plating for optimal conductivity. Additionally, this keystone jack has a flammability rating of UL94V-0 and is UL listed, ensuring safety and compliance with industry standards. A punch down tool is required for installation, providing a secure and professional finish. Available in an elegant ivory color, the Morris 88015 is a dependable choice for any data network project.

A color-coded Cat5E Keystone Jack for Data Communications applications.

• Flammability Rating: UL94V-0
• 100 Mhz Bandwidth
• UL Listed
• Complies with TIA/EIA-568-C-2, ISO 1801 2nd Edition Class E, NEC Article 800
• Conductor Termination at Rear Jack
• Use Cat5E Keystone Jack for Voice or Data Networks
• 110 punch down & Krone Type Termination
• 8 Conductor 22-26 Awg Solid & Stranded wire
• Contacts have 50u Gold Plating
• Punch Down Tool Needed
• 1000 Mbps (1 Gbps) Data Transmission Rate
• Conforms to TIA/EIA 568A & 568B Wiring Color Codes

Resources

• Catalog PDF page
• Spec Data Sheets
• Spec Sheet
